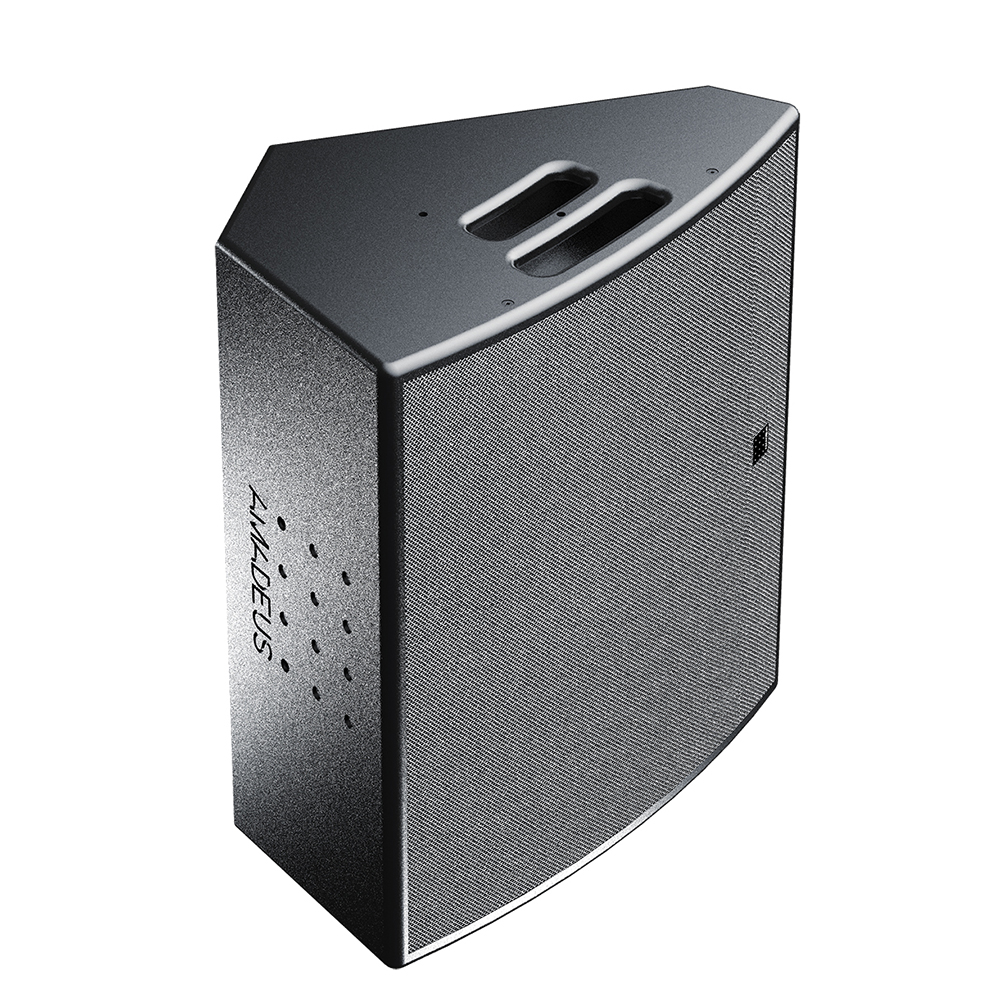

Amadeus C 15 R

3-WAY
Frequency range 47 Hz – 20000 Hz
Sensitivity LF 98 dB/ MHF 113 dB
Maximum SPL LF 134 dB/ SPL MHF 141 dB
Horizontal coverage 60°/ Vertical coverage 90°
Nominal impedance LF 8 Ω/ MHF 8 Ω
Peak power handling LF 4000 W/ MHF 1000 W
Transducer (LF) 1 x 15″ + (MF) 1 x 3.5″ + (HF) 1 x 1.75″
Enclosure type Bass-Reflex
390 x 650 x 556 mm/ 32 kg

Thương hiệu	AMADEUS
Âm thanh	full-range, monitor, passive

Thương hiệu

AMADEUS

Âm thanh

full-range, monitor, passive

ACOUSTICAL SPECIFICATIONS

Frequency range 47 Hz – 20000 Hz
Operating frequency range (-6 dB) 50 Hz – 20000 Hz
Cut-off frequencies (-10 dB) 47 Hz – 20000 Hz
Number of ways 3
Sensitivity LF 98 dB
Sensitivity MHF 113 dB
Maximum SPL LF 134 dB
Maximum SPL MHF 141 dB
Horizontal coverage 60°
Vertical coverage 90°

TECHNICAL SPECIFICATIONS

Nominal impedance LF 8 Ω
Nominal impedance MHF 8 Ω
AES power handling LF 1000 W
AES power handling MHF 150 W
Program power handling LF 2000 W
Program power handling MHF 500 W
Peak power handling LF 4000 W
Peak power handling MHF 1000 W
Transducer (LF) 1 x 15″
Transducer (MF) 1 x 3.5″
Transducer (HF) 1 x 1.75″
Enclosure type Bass-Reflex
Crossover type Active

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 390 mm
Width 650 mm
Depth 556 mm
Weight 32 kg
Handles 2
Rigging 8 x M8 threaded inserts for optional flying brackets
Rigging 1 x 35 mm pole socket
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus ETRV C 15 R Vertical flying bracket for C 15 R
Amadeus ETRH C 15 R Horizontal flying bracket for C 15 R
Atelier 33 FA2C15R Flight Case featuring casters with brakes for two Amadeus C 15 R
