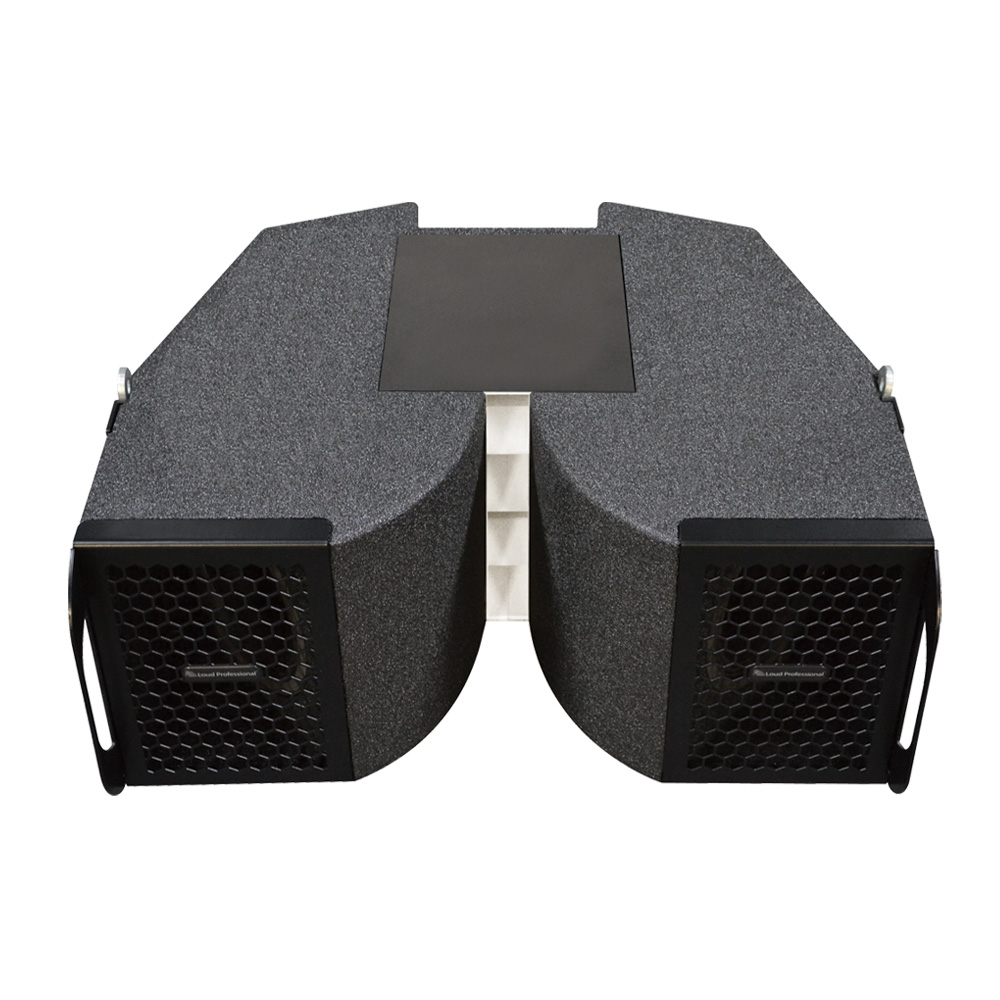

FocusEight

FocusEight is an ultra compact two-way Line-Array enclosure designed for a wide range of medium scale touring, fixed and temporary applications.
It consists of two 8in. low-mid frequency drivers and 1.5in. exit compression driver mounted on a proprietary double parabolic waveguide, giving a dispersion of 70 deg. and 10 deg. on the horizontal and vertical axis.
Narrower is the horizontal dispersion compared to traditional Line-Array enclosures of equal size, making this system particularly suitable in high reverberant venues.
FocusEight is designed to combine a compact and lightweight enclosure and high performances with a dedicated LMF extension delivering the necessary outuput when a reinforced contour is desired.
FocusEight hardware flying system allows to build arrays up to 24 units. The box integrated rigging system provides the necessary inclination with a resolution from 0 to10 degrees.
Flybar main frame is also designed for stacked applications, whenever is necessary install the system directly on the floor.
Its compact dimensions provide the perfect solution in all applications where no-high ceiling venues require clarity, intelligibility and precision for vocal speech, lead instruments at high levels.
Significant building criteria, the employment of the latest technologies and innovative materials, are able to guarantee great reliability over time.
FocusEight cabinet is constructed from Birch-ply and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.
The system can be as well matched with all the most challenging Loud Professional Formula and VH subwoofer systems, significantly boosting its LF extension.

Applications: Theaters, Conference Halls, Concert Halls, Large Scale Discos & Clubs.

Technical Specifications

Frequency Range (+/-3 dB) 65 Hz – 20 kHz
Nominal Directivity (-6 dB) H x V 70° x 10°
Maximum Peak SPL (LMF / MHF) 136 / 139 dB
Components LMF 2 x 8in. Neodymium cone driver
Components MHF 1 x 1.5in. exit Neodymium compression Driver
Nominal Impedance LMF 8 Ω
Nominal Impedance MHF 16 Ω
Power Handling (AES / Peak) LMF 650 / 2.600 W
Power Handling (AES / Peak) HF 110 / 440 W
Connections 2 x SpeakON™ NL4
Enclosure Construction 18 / 24 mm Ply Birch
Finish Black Polyurea PCP (Polyurea Cabinet Protection) finish
Protection Grille Powder coated 2mm Metal Rigid Grille
Acoustically transparent Foam for discrete appearance
Height Front (mm / in.) 270 / 10.62
Height Back (mm / in.) 200 / 07.87
Width Front (mm / in.) 650 / 25.59
Width Back (mm / in.) 485 / 19.09
Depth (mm / in.) 570 / 22.44
Weight (kg / lbs) 29 / 63.93
Supported Processing Armonia Pro Audio Suite
