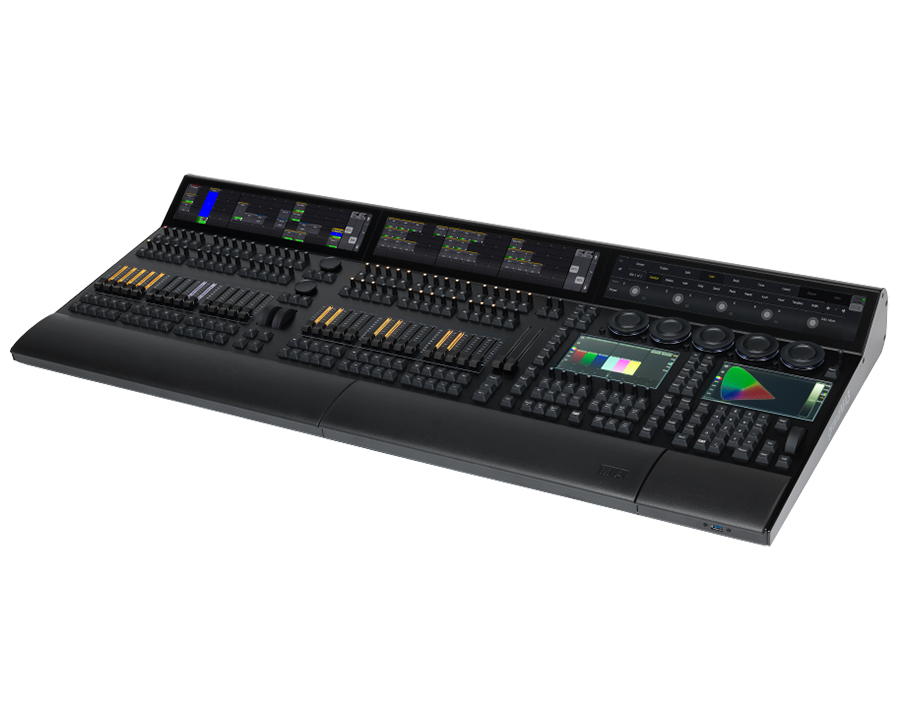

grandMA3 full-size CRV

Parameters 20 480 (HTP/LTP)
Parameters Mode2 8 192 (HTP/LTP)
Operating voltage/ Supply voltage AC 100 – 240 V; 50/60 Hz
Power max. 300 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 1 213 x 539 x 169 mm / 48 x 22 x 7 in
(width x depth x height, drawer closed)

1 213 x 644 x 169 mm / 48 x 26 x 7 in
(width x depth x height, drawer opened)
Net weight 33 kg / 73 lbs
Connectors 1 x powerCON TRUE1
3 x etherCON/RJ45
6 x DMX512-A Out (5pin XLR female)
1 x DMX512-A In (5pin XLR male)
1 x MIDI In (5pin DIN female)
1 x MIDI Out (5pin DIN female)
1 x Linear Timecode (3pin XLR female)
1 x Audio In (3pin XLR female)
1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
5 x DisplayPort 1.2 for external screens
2 x S/PDIF In and Out
3 x USB 2.0 (type A)
3 x USB 3.0 (type A)
2 x LED desk light (4pin XLR female)
