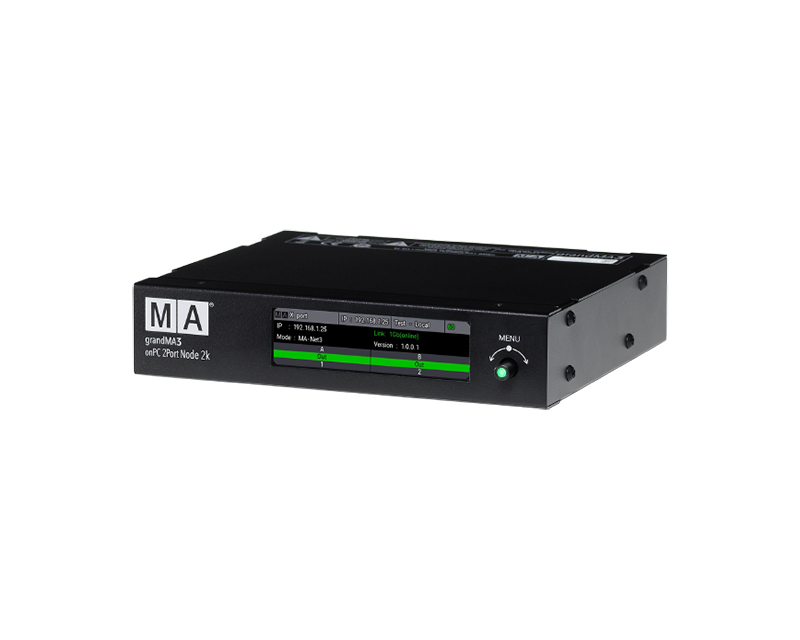

grandMA3 onPC 2Port Node 2k

You are looking for a grandMA3 onPC control solution to be installed in a 19″ rack? You work in a fixed installation like a theater, shopping mall, TV/streaming studio or house of worship and need a reliable backup solution for your grandMA3 lighting control system? Or you want to implement a stand-alone lighting control system for your show that runs automatically due to external triggers, for example in a theme park or for architectural lighting?

If you can tick one of these boxes, the grandMA3 onPC rack-unit is the perfect solution for you. It is a first class onPC controller in 19″ format with the grandMA3 onPC software already pre-installed on a powerful computer. So you won’t miss any features or software functionality compared to the grandMA3 consoles. Just connect a mouse, a keyboard and up to two external monitors and you can directly control 4 096 parameters.
The device will be shipped with Windows IoT – so we can make sure it can get a proper factory reset image if needed.

It is not only a powerful control solution, but also an optimal playback device. All relevant connections – DMX Out/Inputs, MIDI In/Out, Timecode and DC remote – are already built in for direct use. Maybe your show is triggered by agenda events and runs automatically – the grandMA3 onPC rack-unit is the perfect solution for many installation projects.

Imagine you want to create a solution for a small to medium sized installation: You can combine the grandMA3 onPC rack-unit with a grandMA3 onPC command wing and/or up to two grandMA3 onPC fader wings to control or pre-program your show. In addition, it can act as a full-fledged and reliable backup unit in your grandMA3 lighting control system.

Parameters 4 096 (HTP/LTP)
Parameters Mode2 not applicable (no Mode2)
Operating voltage/ Supply voltage AC 100 – 240 V; 50/60 Hz
Power max. 100 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 482 x 249 x 87 mm / 19 x 10 x 4 in
(width x depth x height)
Net weight 4 kg / 9 lbs
Connectors 1 x IEC-60320 C14 cord
2 x RJ45
2 x DMX512-A Out (5pin XLR female)
1 x DMX512-A In (5pin XLR male)
1 x MIDI In (5pin DIN female)
1 x MIDI Out (5pin DIN female)
1 x Linear Timecode (3pin XLR female)
1 x Audio In (mini jack 3.5mm)
1 x Audio Out (mini jack 3.5mm)
1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
2 x DisplayPort 1.2 for external screens
4 x USB 2.0 (type A)
2 x USB 3.0 (type A)
