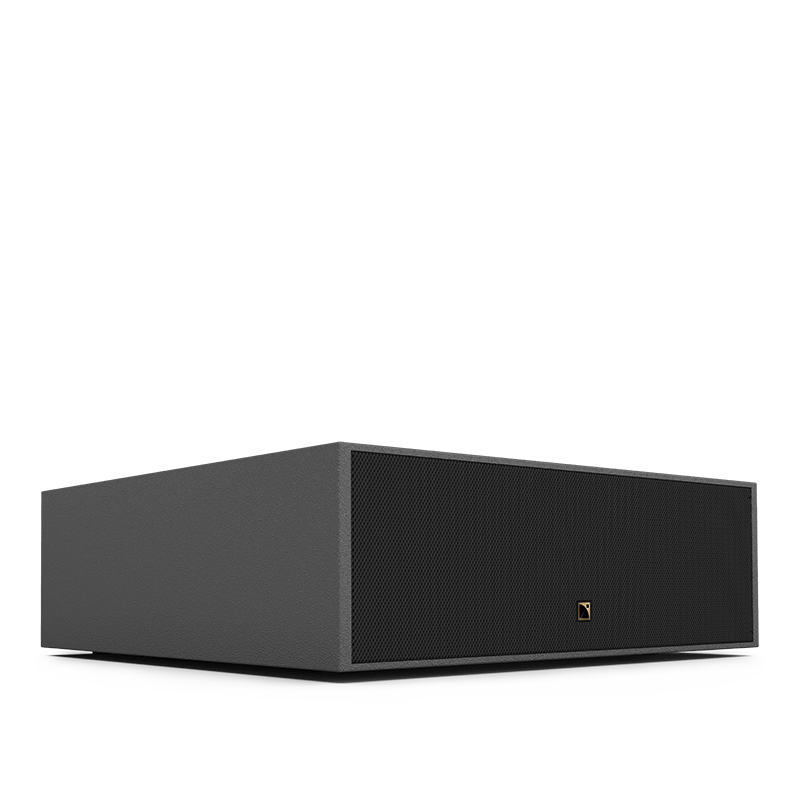

L-Acoustics SB10i

The power of bass. The luxury of space.
Ultra-compact subwoofer, 10″
L-VENTS
Max SPL 124 dB
Low frequency limit 25 Hz
Transducers LF: 1 x 10″
Weight 15 kg / 33 lb
Directivity standard

Thương hiệu	L-Acoustics
Âm thanh	passive, subwoofer

Thương hiệu

L-Acoustics

Âm thanh

passive, subwoofer

Electroacoustic specs

Ultra-compact subwoofer: 1 x 10″ (installation version)
amplified by LA2Xi / LA4X / LA12X

Low frequency limit (-10 dB)	25 Hz ([SB10_60]) 27 Hz ([SB10_100]) 29 Hz ([SB10_200])
Maximum SPL¹	119 dB ([SB10_60]) 122 dB ([SB10_100]) / 120 dB with LA2Xi 124 dB ([SB10_200]) / 122 dB with LA2Xi
Nominal directivity (-6 dB)	standard
Transducers	1 × 10″ cone driver
Acoustical load	bass-reflex
Nominal impedance	8 Ω

¹ Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors	1 × 4-point terminal block with push-in connection
Rigging and handling	8 M6 inserts for on-wall/on-ceiling rigging accessory In-wall/in-ceiling versions
Weight (net)	15 kg / 33 lb
Cabinet	premium grade Baltic birch plywood
Front	coated steel grill acoustically neutral 3D fabric
Finish	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP	IP55

Dimensions
