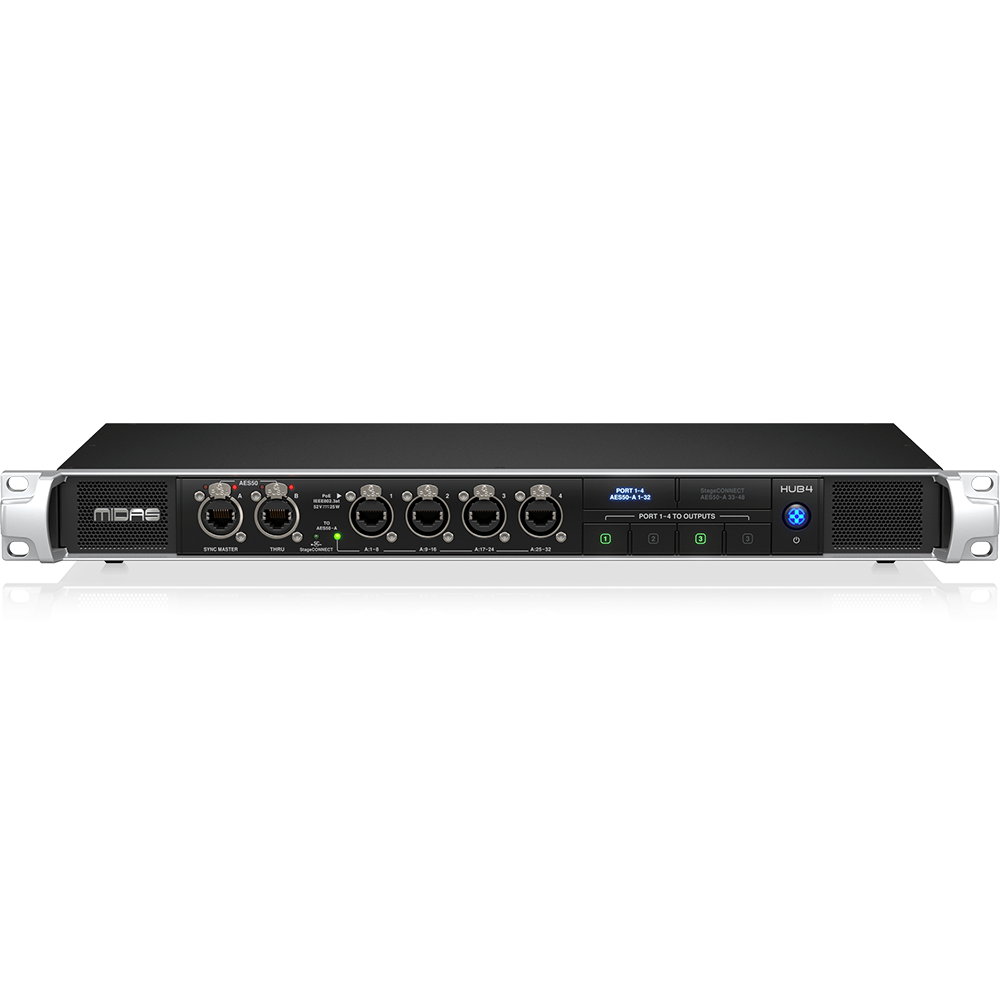

Personal monitoring system hub with PoE remote powering for up to 4 DP48 personal mixers and compatible stage boxes
AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz
16 balanced analogue outputs for sending 4×2 personal stereo mixes to IEM transmitters in the side rack
Channel naming and Group assignments can be distributed from compatible M32 consoles
Midas DL8 Stage Boxes can be connected and powered from ports 1-4
Personal mix outputs can be monitored via AES50 upstream to connected consoles
Supports remote control forwarding of a DP48 personal mixer from another DP48
Front panel buttons for sending signals to analogue output groups 1-4, for StageConnect and for AES50-A upstream
StageConnect output with phantom power for connecting other StageConnect devices, sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over any standard XLR microphone or DMX cable
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length on all ports
Features Neutrik etherCON AES50 network ports
Rugged 1U chassis for durability in portable applications
Auto-ranging universal switch-mode power supply
