Input Voltages
100V~240V AC, 50/60Hz
Input Power
650W @ 220V
Power factor: PF > 0.9
Lamp Specifications
500W laser module (9500K, 12000 hrs)
Colors
1 color wheel: 19 colors + open
Macros and bi-directional rainbow effects with variable speeds
Gobos
1 fixed gobo wheel: 30 gobos
Shakable at variable speeds and bi-directional rotation at variable speeds
Prism/Frost
3 prism wheels: (an 8-facet circular prism + a 4-facet linear prism) + (a 16-facet circular prism + a frost filter), prisms overlapped. Other prism options available.
Focus
DMX linear focus
Dimmer/Strobe
Double flag strobe, 0.3-25 F.P.S. / linear dimmer
Head Movement
Pan (0°540°), Tilt (0°270°) with auto positioning correction function
Beam Angle
0.8°
Control
International standard DMX 512 signal, 5-pin XLR connectors
Short Mode: 15 channels, standard Mode: 17 channels, extended mode: 18 channels
Self test mode
Other Functions
Pan and Tilt speeds adjustable
Lamp hours and fixture hours displayed
Modular construction for easy maintenance
Wireless receiver
Wireless transmitter (Optional)
ArtNet and sACN (Optional)
Housing
Cast aluminum and high temperature and UV resistant ABS with IP66
Net Weight
38 Kg
Ambient Temperature
-20 °C ~ 45 °C
Note: If a fixture runs with the ambient temperature below 0 Celsius, it should be heated for some time (less than 20 minutes based on actual conditions) before turning on the laser module.
PHÒNG THU – STUDIO
ACCESSORIES
Admin.Q –

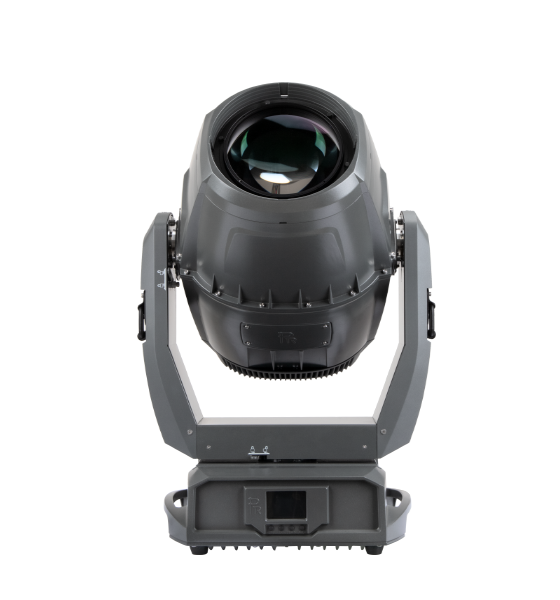

AQUA LASER 500-W
