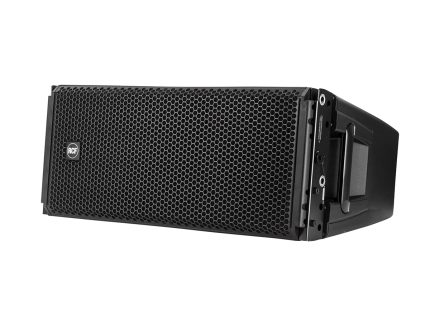

RCF HDL 10-A

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

ACOUSTICAL SPECIFICATIONS
Frequency Response: 65 Hz ÷ 20000 Hz
Max SPL @ 1m: 133 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 15°

TRANSDUCERS
Compression Driver: 1 x 2.0”, 2.5” v.c
Woofer: 2 x 8”, 2.0” v.c

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION
Crossover Frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Cluster, HF, High curving, Indoor

POWER SECTION
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: PP Composite
Hardware: Rigging flyware
Handles: 2 side
Grille: Steel
Color: Black, White

SIZE
Height: 294 mm / 11.57 inches
Width: 569 mm / 22.4 inches
Depth: 434 mm / 17.09 inches
Weight: 20.4 kg / 44.97 lbs

SHIPPING INFORMATION
Package Height: 375 mm / 14.76 inches
Package Width: 650 mm / 25.59 inches
Package Depth: 500 mm / 19.69 inches
Package Weight: 23 kg / 50.71 lbs
