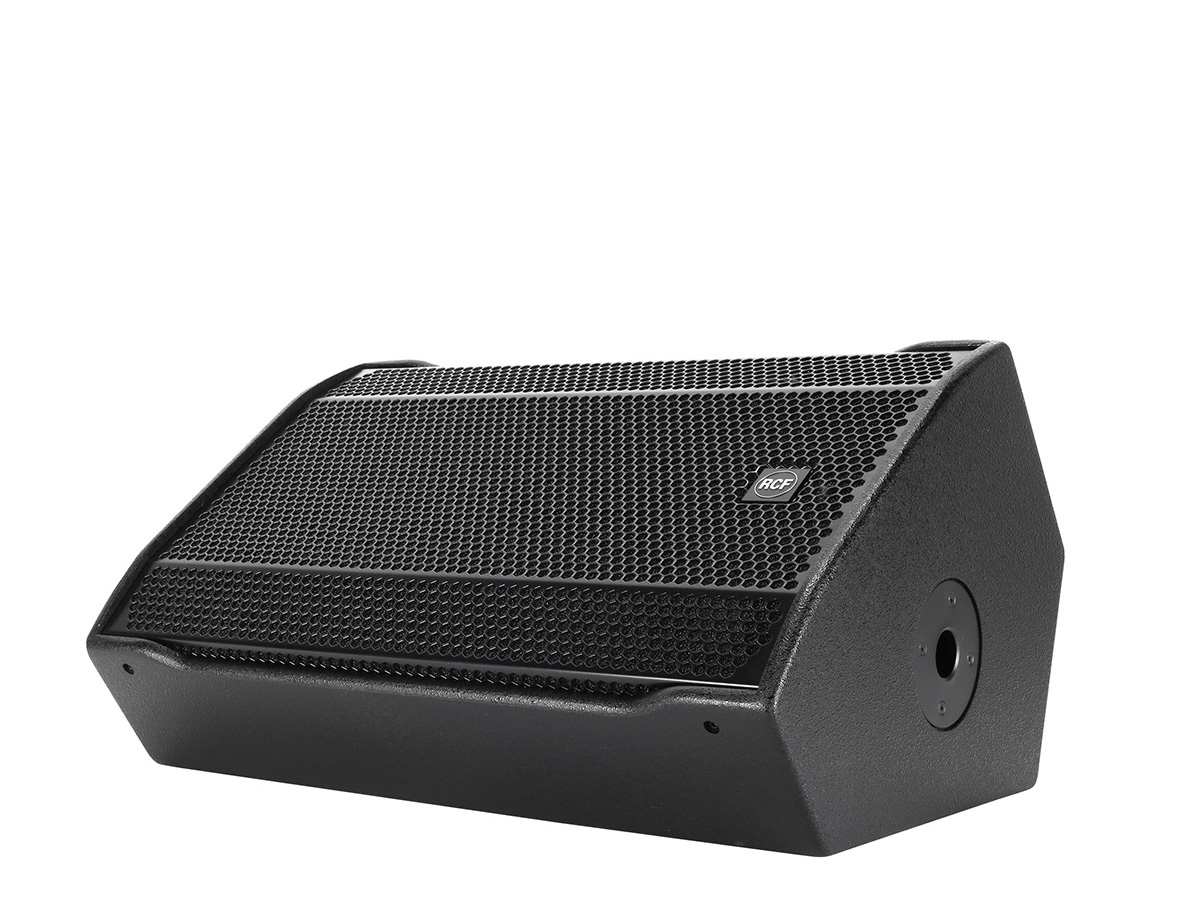

RCF ST 12-SMA II

RCF ST 12-SMA II is an active ultra-compact and fully featured speaker for rental companies and musicians. Designed as a professional sound reinforcement solution with up to 130 dB SPL, low distortion and unmatched reliability, it shines in high powered music applications, DJ sets, and vocal reinforcement, with or without subwoofers.

ACOUSTICAL SPECIFICATIONS
Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 129 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°

TRANSDUCERS
Compression Driver: 1 x 1.0”, 1.4” v.c
Woofer: 12”, 2.5” v.c

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION
Crossover Frequencies: 1400 Hz
Protections: RMS, HF
Limiter: Soft Limiter

POWER SECTION
Total Power: 1200 W Peak, 600 W RMS
High frequencies: 800 W Peak, 400 W RMS
Low frequencies: 400 W Peak, 200 W RMS
Cooling: Convection
Connections: VDE

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood
Handles: 1 side
Pole mount/Cap: Yes
Grille: Steel
Color: Black

SIZE
Height: 318 mm / 12.52 inches
Width: 594 mm / 23.39 inches
Depth: 400 mm / 15.75 inches
Weight: 17.3 kg / 38.14 lbs

SHIPPING INFORMATION
Package Height: 604 mm / 23.78 inches
Package Width: 352 mm / 13.86 inches
Package Depth: 412 mm / 16.22 inches
Package Weight: 19 kg / 41.89 lbs
