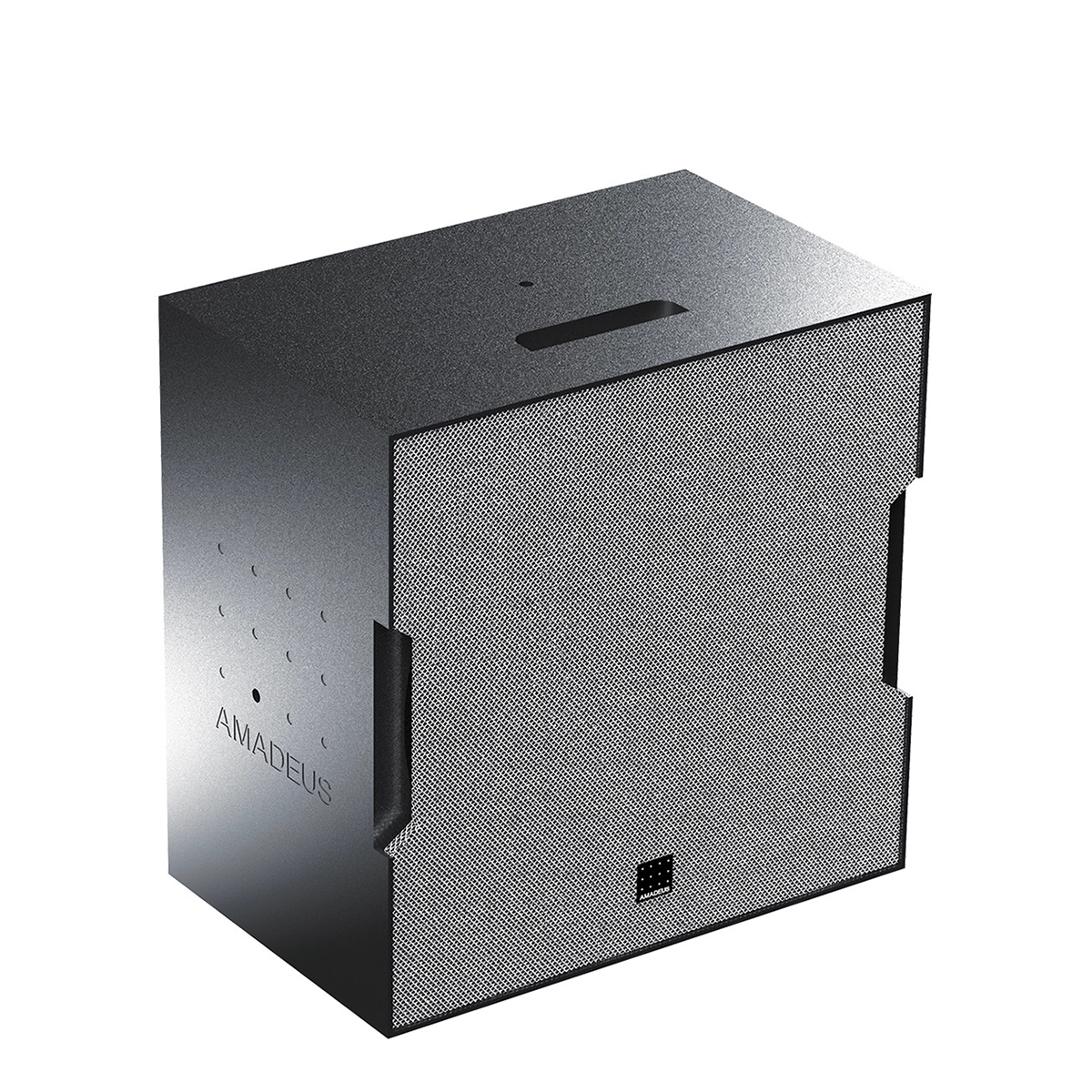

Amadeus C 15 B

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 46 Hz – 350 Hz
Operating frequency range (-6 dB) 38 Hz – 350 Hz
Cut-off frequencies (-10 dB) 34 Hz – 350 Hz
Number of ways 1
Sensitivity 97 dB
Maximum SPL 129 dB
Horizontal coverage 360°
Vertical coverage 360°

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ω
AES power handling 1000 W
Program power handling 2000 W
Peak power handling 2800 W
Transducer (LF) 1 x 15″
Enclosure type Passive Radiator (1 x 12″)

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 1 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 446 mm
Width 446 mm
Depth 356 mm
Weight 21 kg
Handles 2
Rigging 2 x M8 threaded inserts for optional U-Bracket
Rigging 2 x M8 threaded inserts for optional mounting adapter
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus LYRE C 15 U-Bracket for C 15 and C 15 B
Atelier 33 FA2C15B Flight Case featuring casters with brakes for two Amadeus C 15 B

COMPATIBLE ACCESSORIES

195/8 Slip-on adapter for speaker stands with tube diameter of 35 mm
24281 Slip-on adapter for speaker stands with tube diameter of 35 mm
