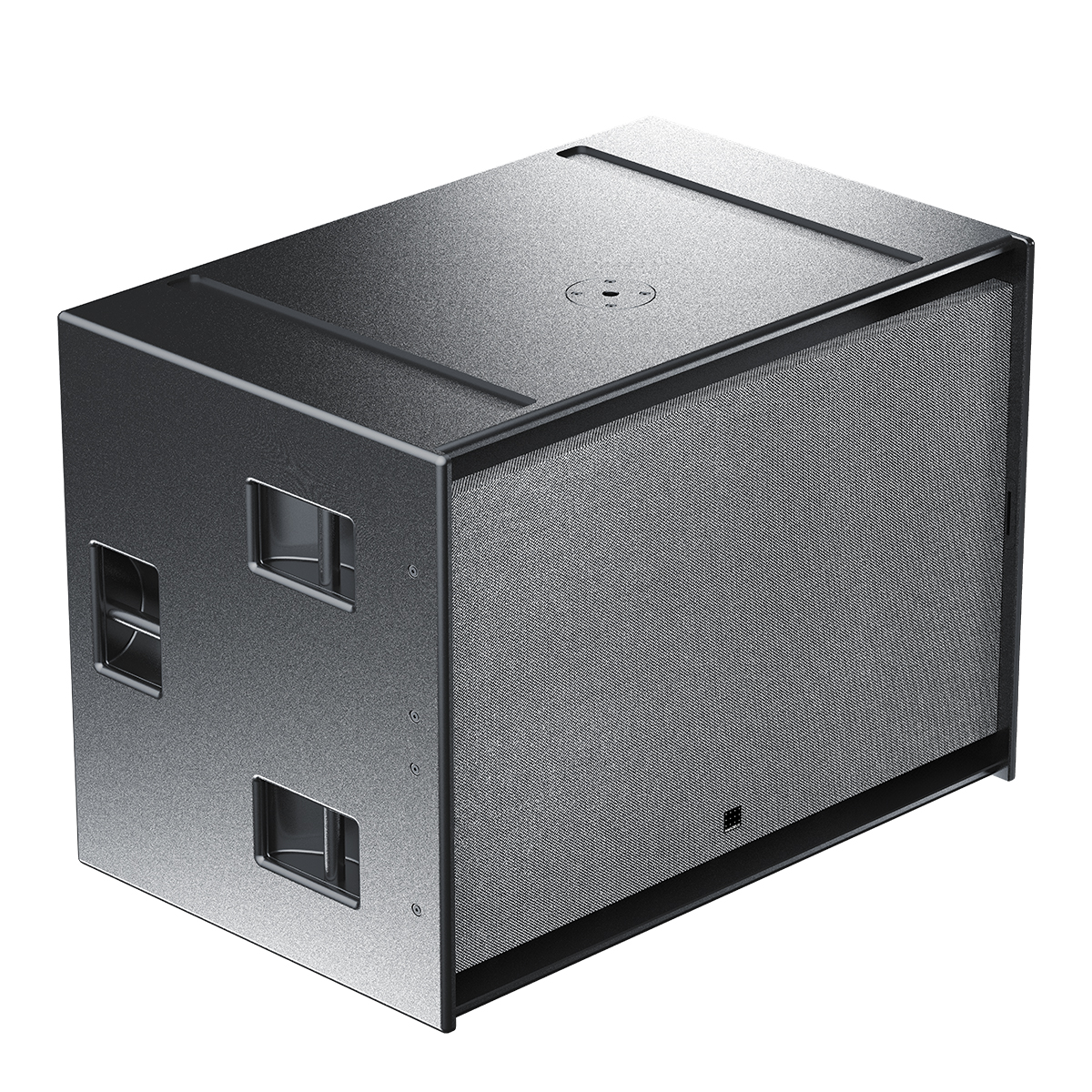

Amadeus ML 28

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 32 Hz – 350 Hz
Operating frequency range (-6 dB) 30 Hz – 350 Hz
Cut-off frequencies (-10 dB) 28 Hz – 350 Hz
Number of ways 1
Sensitivity 104 dB
Maximum SPL 141 dB
Horizontal coverage 360°
Vertical coverage 360°

TECHNICAL SPECIFICATIONS

Nominal impedance 4 Ω
AES power handling 2000 W
Program power handling 4000 W
Peak power handling 5600 W
Transducer (LF) 2 x 18″
Enclosure type Bass-Reflex

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 770 mm
Width 1000 mm
Depth 650 mm
Weight 83 kg
Handles 6
Rigging 1 x screw receptacle for satellite pole
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus ML 28 DB Removable front dolly board for Amadeus ML 28
Amadeus ML 28 PSC Protective slip cover for Amadeus ML 28
