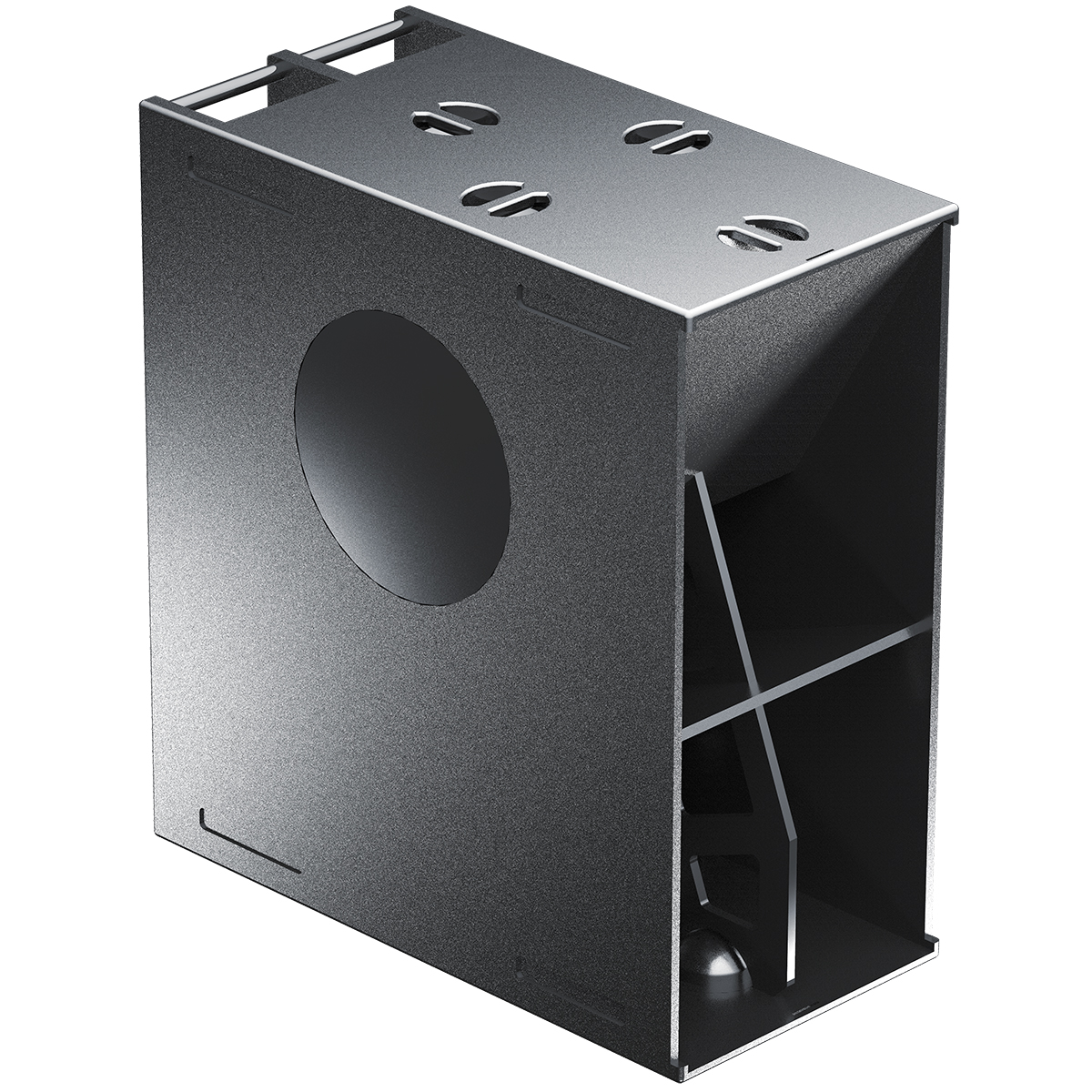

Amadeus MAESTRO II

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 32 Hz – 250 Hz
Operating frequency range (-6 dB) 29 Hz – 250 Hz
Cut-off frequencies (-10 dB) 26 Hz – 250 Hz
Number of ways 1
Sensitivity 112 dB
Maximum SPL 147 dB
Horizontal coverage 360°
Vertical coverage 360°

TECHNICAL SPECIFICATIONS

Nominal impedance 4 Ω
AES power handling 2000 W
Program power handling 4000 W
Peak power handling 5600 W
Transducer (LF) 2 x 15″
Enclosure type Folded Waveguide

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 1350 mm
Width 625 mm
Depth 1250 mm
Weight 103 kg
Handles 10
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011

PROPRIETARY ACCESSORIES

Amadeus MAESTRO II DB Removable front dolly board for MAESTRO II
Amadeus MAESTRO II PSC Protective slip cover for MAESTRO II
