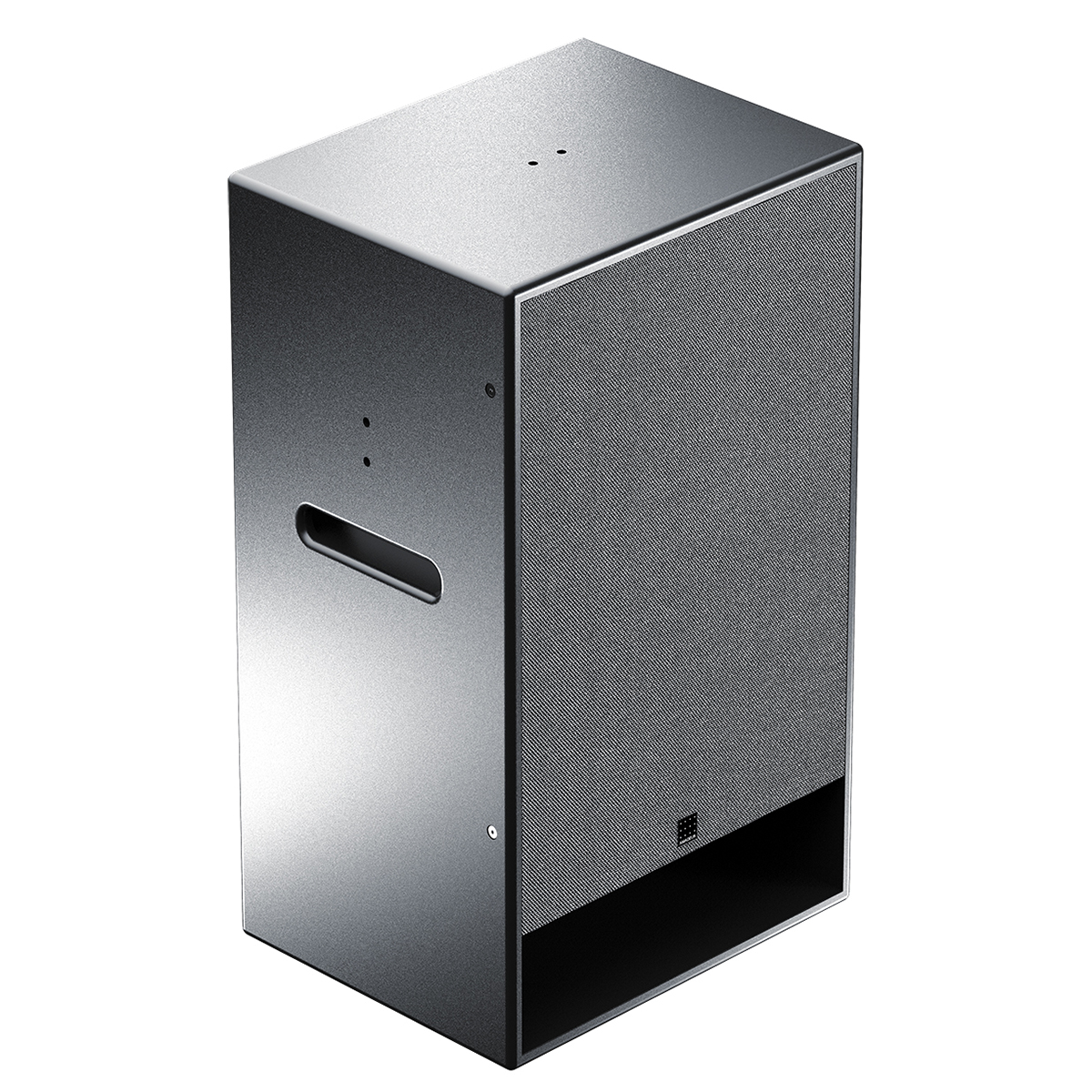

Amadeus ABB 18

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 35 Hz – 350 Hz
Operating frequency range (-6 dB) 30 Hz – 350 Hz
Cut-off frequencies (-10 dB) 26 Hz – 350 Hz
Number of ways 1
Sensitivity 98 dB
Maximum SPL 134 dB
Horizontal coverage 360°
Vertical coverage 360°

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ω
AES power handling 1700 W
Program power handling 3400 W
Peak power handling 5000 W
Transducer (LF) 1 x 18″
Enclosure type Bass-Reflex

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 900 mm
Width 565 mm
Depth 450 mm
Weight 43 kg
Handles 2
Rigging 8 x M8 threaded inserts for optional U-Brackets
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus LYRE ABB 18 V Vertical U-Bracket for ABB 18
Amadeus LYRE ABB 18 H Horizontal U-Bracket for ABB 18
Atelier 33 FA2ABB18 Flight Case featuring casters with brakes for two Amadeus ABB 18
