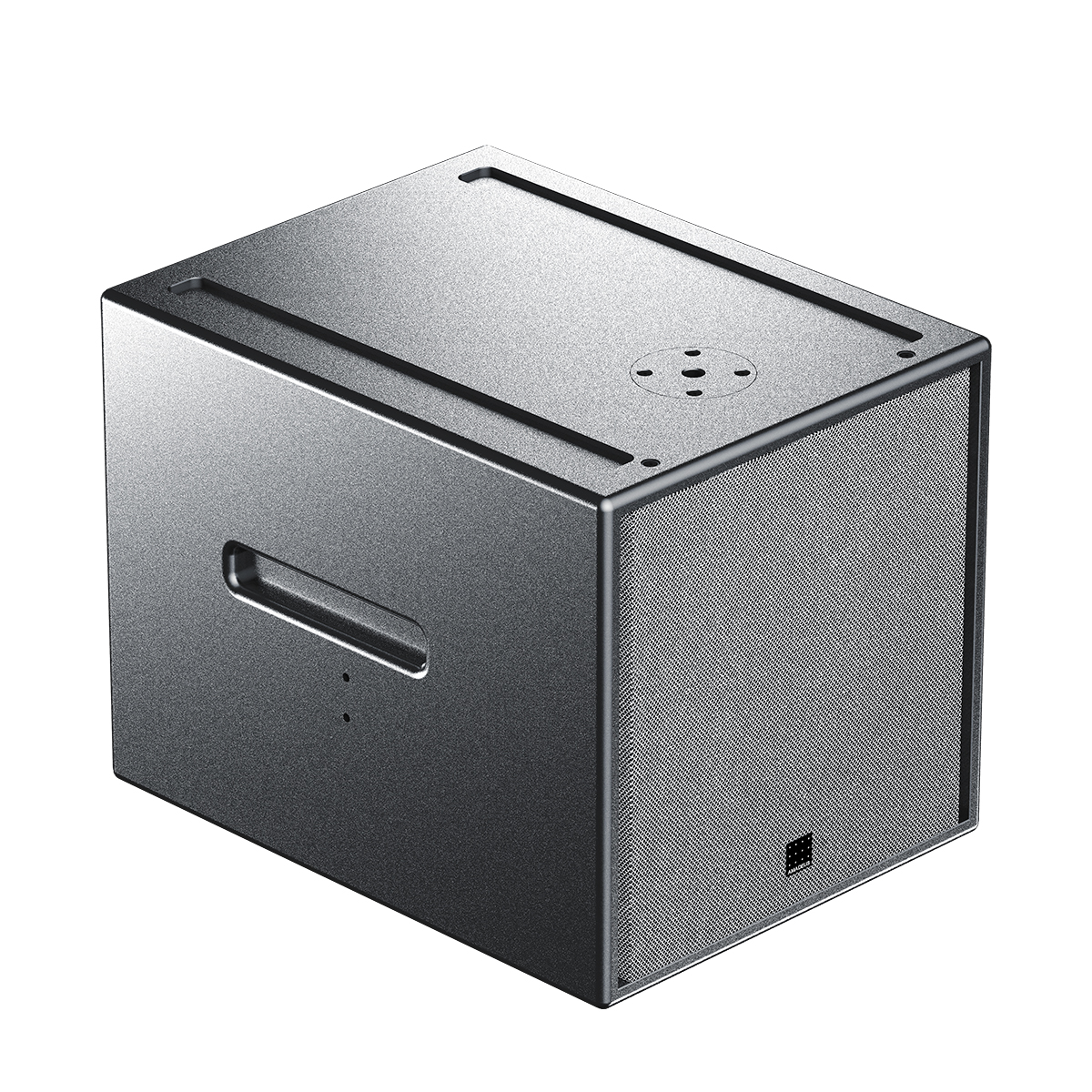

Amadeus ML 15 D

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 43 Hz – 350 Hz
Operating frequency range (-6 dB) 38 Hz – 350 Hz
Cut-off frequencies (-10 dB) 33 Hz – 350 Hz
Number of ways 2
Sensitivity 99 dB
Maximum SPL 129 dB
Horizontal coverage 360°
Vertical coverage 360°
Presets 99 user-definable presets

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ω
AES power handling 1000 W
Program power handling 2000 W
Peak power handling 2800 W
Transducer (LF) 1 x 15″
Enclosure type Bass-Reflex
Crossover type DSP

LOUDSPEAKER PROCESSING SPECIFICATIONS

Crossover Multiple filter types (Butterworth, Linkwitz-Riley, Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass) up to 24 dB / Oct.
Control and monitoring interface Full configuration and real-time monitoring via PC, Mac and iPad

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-)
Input connectors (AES/EBU) 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-)
Input connectors (Dante) 2 x RJ45 etherCON
Mains connectors 1 x IEC 16 A
Buttons Power, Up, Down
Encoder Adjust, Set

PHYSICAL SPECIFICATIONS

Height 466 mm
Width 462 mm
Depth 698 mm
Weight 40 kg
Handles 2
Rigging 4 x M8 threaded inserts for optional U-Bracket
Rigging 1 x screw receptacle for satellite pole
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus LYRE ML 15 U-Bracket for ML 15 and ML 15 D
Atelier 33 FA1ML15 Flight Case featuring casters with brakes for one Amadeus ML 15 or ML 15 D
Atelier 33 FA2ML15 Flight Case featuring casters with brakes for two Amadeus ML 15 or ML 15 D
