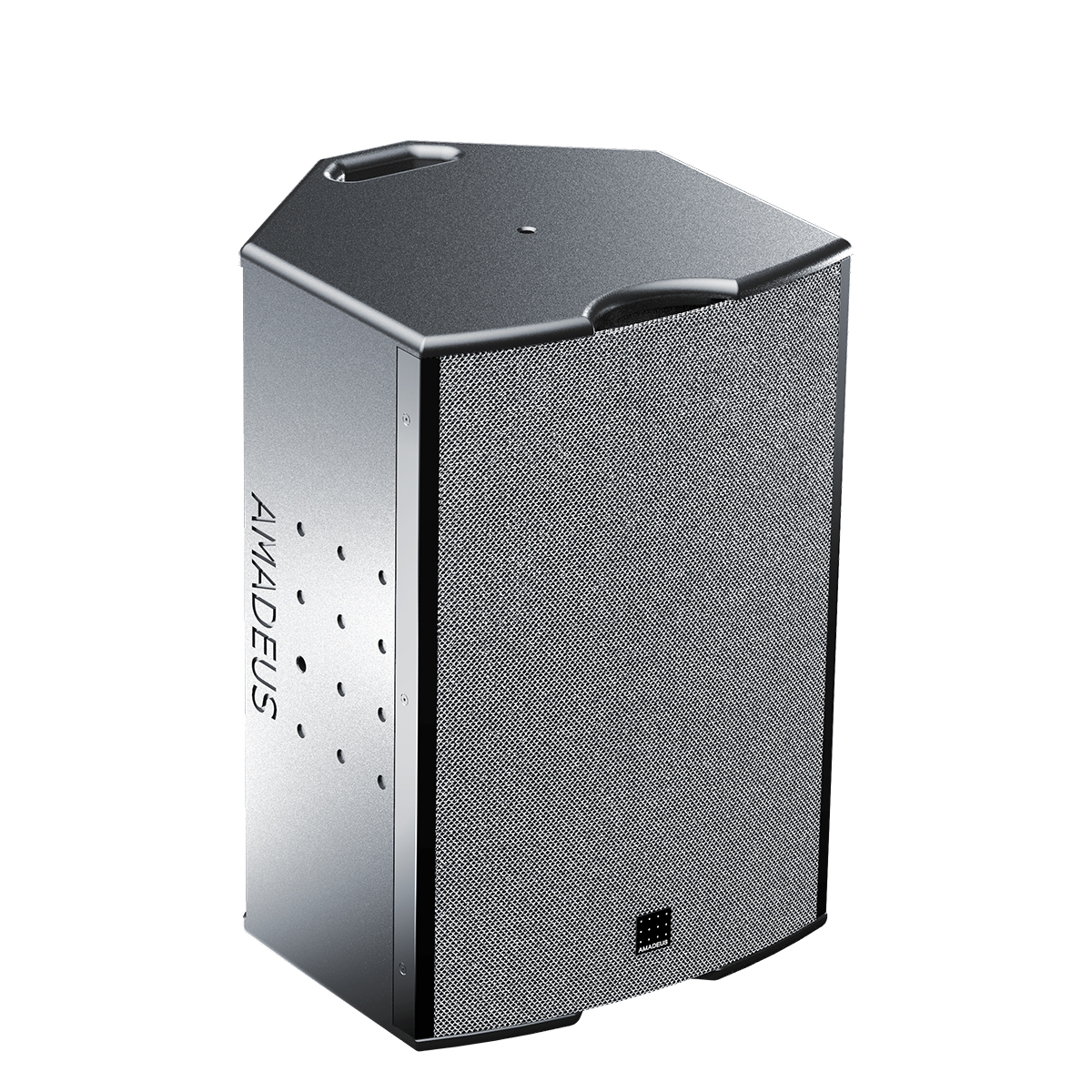

Amadeus PMX 12

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 63 Hz – 20000 Hz
Operating frequency range (-6 dB) 56 Hz – 20000 Hz
Cut-off frequencies (-10 dB) 52 Hz – 20000 Hz
Number of ways 2
Sensitivity 99 dB
Maximum SPL 129 dB
Horizontal coverage 80°
Vertical coverage 80°

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ω
AES power handling 350 W
Program power handling 700 W
Peak power handling 980 W
Transducer (LF) 1 x 12″
Transducer (HF) 1 x 3″
Enclosure type Bass-Reflex
Crossover type Passive

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 551 mm
Width 372 mm
Depth 386 mm
Weight 21 kg
Handles 2
Rigging 3 x M8 threaded inserts for optional U-Brackets
Rigging 1 x 35 mm pole socket
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus LYRE 101215 V Adjustable vertical U-Bracket for UDX/PMX 10, 12 and 15 (D Series included)
Amadeus LYRE 101215 H Adjustable horizontal U-Bracket for UDX/PMX 10, 12 and 15 (D Series included)
Atelier 33 FA2PMX12 Flight Case featuring casters with brakes for two Amadeus PMX 12 or PMX 12 D
