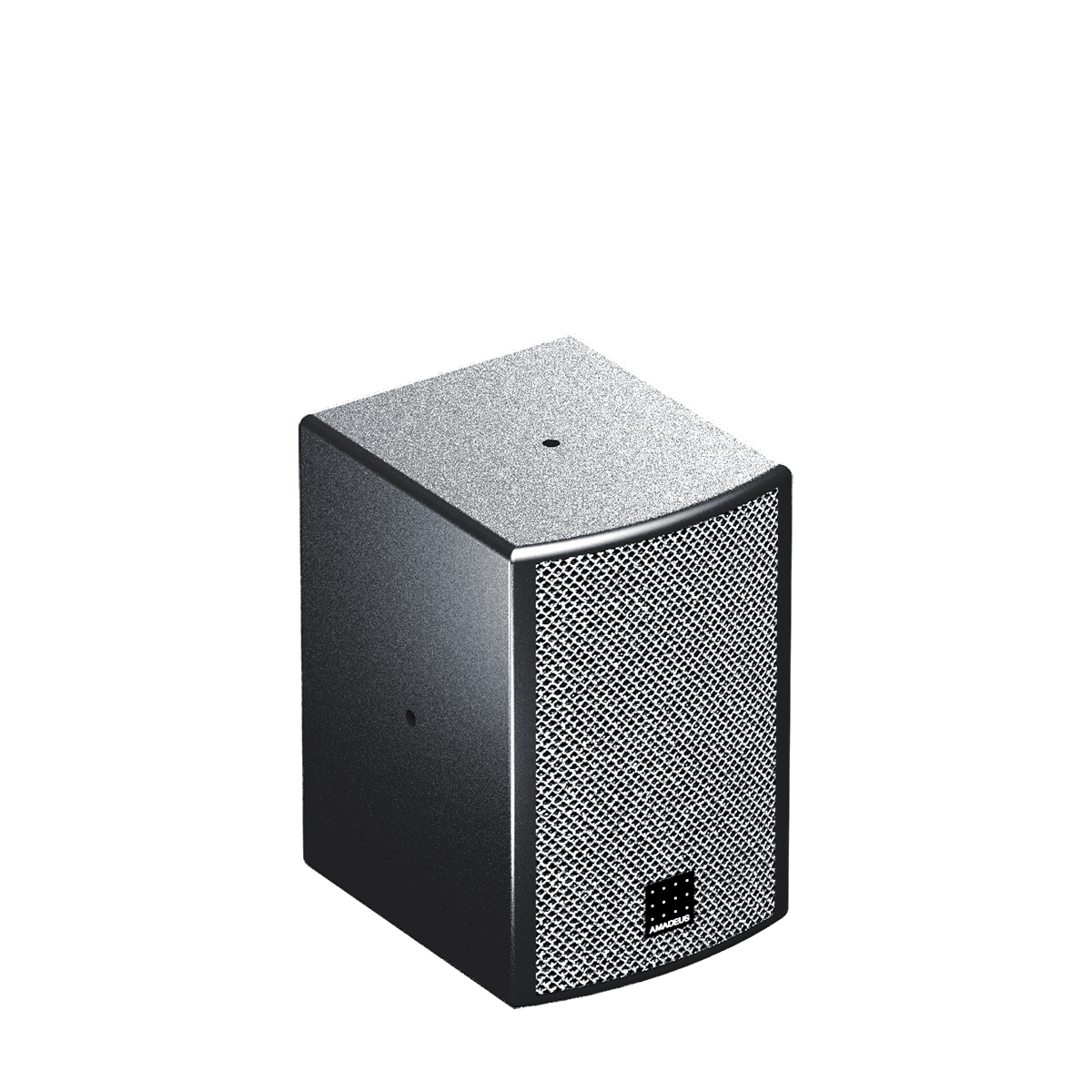

Amadeus PMX 4

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 120 Hz – 20000 Hz
Operating frequency range (-6 dB) 100 Hz – 20000 Hz
Cut-off frequencies (-10 dB) 95 Hz – 20000 Hz
Number of ways 2
Sensitivity 90 dB
Maximum SPL 112 dB
Horizontal coverage 100°
Vertical coverage 100°

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ω
AES power handling 100 W
Program power handling 200 W
Peak power handling 300 W
Transducer (LF) 1 x 4″
Transducer (HF) 1 x 0.8″
Enclosure type Bass-Reflex
Crossover type Passive

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 188 mm
Width 125 mm
Depth 150 mm
Weight 2 kg
Rigging 4 x M5 threaded inserts for optional U-Brackets
Rigging 2 x M5 threaded inserts for optional mounting adapter
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus LYRE PMX 4 V Vertical U-Bracket for PMX 4
Amadeus LYRE PMX 4 H Horizontal U-Bracket for PMX 4
Atelier 33 FA2PMX4 Flight Case for two Amadeus PMX 4
Atelier 33 FA4PMX4 Flight Case for four Amadeus PMX 4

COMPATIBLE ACCESSORIES

19780 Inclinable stand adapter
24161 Universal speaker wall mount
24180 Universal speaker wall mount
