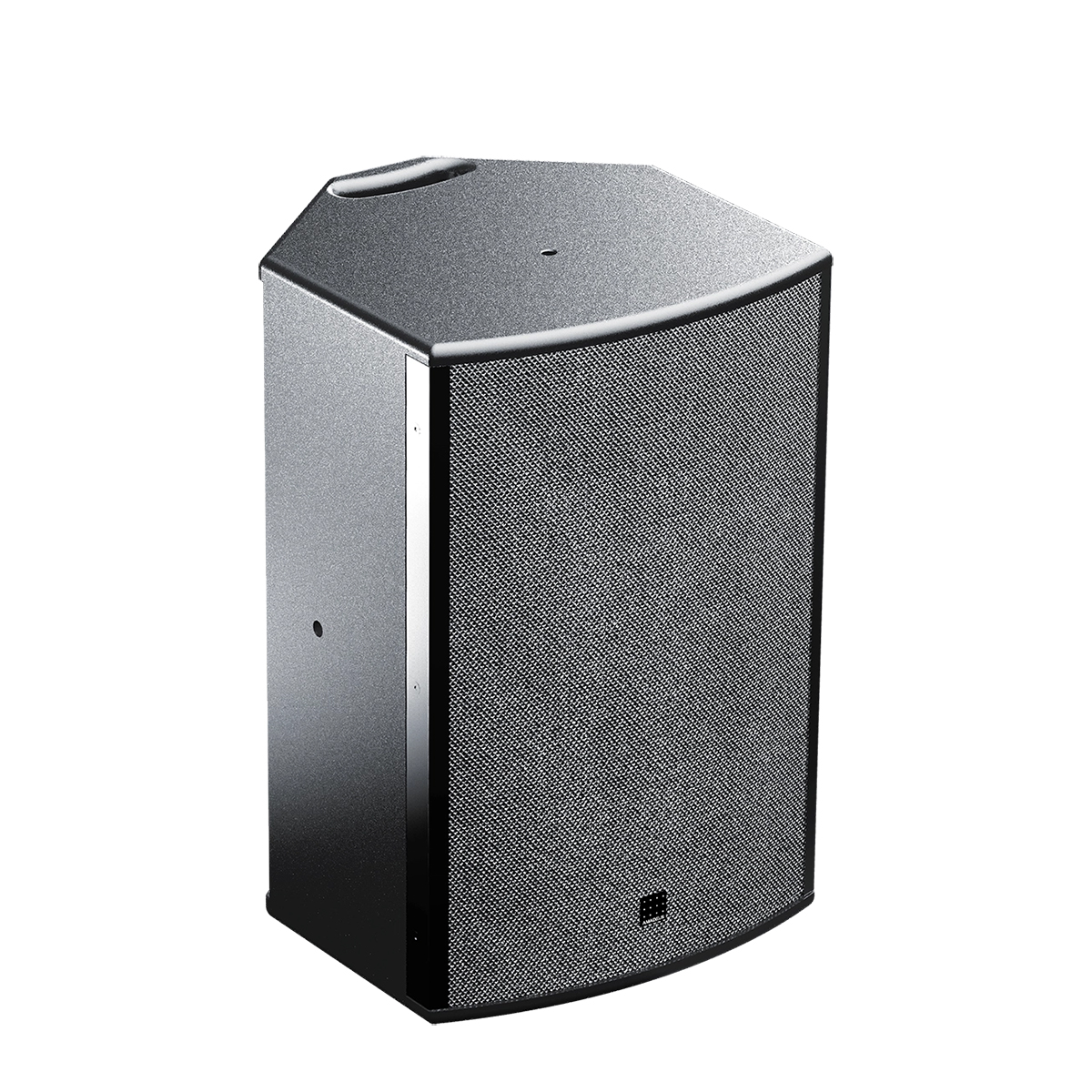

Amadeus UDX 10

ACOUSTICAL SPECIFICATIONS

Amplitude linearity (± 3 dB) 60 Hz – 20000 Hz
Operating frequency range (-6 dB) 55 Hz – 20000 Hz
Cut-off frequencies (-10 dB) 52 Hz – 20000 Hz
Number of ways 2
Sensitivity 97 dB
Maximum SPL 124 dB
Horizontal coverage 70°
Vertical coverage 70°

TECHNICAL SPECIFICATIONS

Nominal impedance 8 Ω
AES power handling 200 W
Program power handling 400 W
Peak power handling 500 W
Transducer (LF) 1 x 10″
Transducer (HF) 1 x 2.5″
Enclosure type Bass-Reflex
Crossover type Passive

CONNECTOR AND BUTTON SPECIFICATIONS

Input connectors (Analog) 2 x speakON NL4MP

PHYSICAL SPECIFICATIONS

Height 506 mm
Width 337 mm
Depth 348 mm
Weight 16 kg
Handles 2
Rigging 4 x M8 threaded inserts for optional U-Brackets
Rigging 2 x M8 threaded inserts for optional mounting adapters
Rigging 4 x M8 threaded inserts for optional wall mounts
Standard colour codes for cabinet 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric 9005/9006/9010/1035/1036

PROPRIETARY ACCESSORIES

Amadeus LYRE 101215 V Adjustable vertical U-Bracket for UDX/PMX 10, 12 and 15 (D Series included)
Amadeus LYRE 101215 H Adjustable horizontal U-Bracket for UDX/PMX 10, 12 and 15 (D Series included)
Atelier 33 FA2UDX10 Flight Case featuring casters with brakes for two Amadeus UDX 10
Atelier 33 FA4UDX10 Flight Case featuring casters with brakes for four Amadeus UDX 10

COMPATIBLE ACCESSORIES

195/8 Slip-on adapter for speaker stands with tube diameter of 35 mm
24281 Slip-on adapter for speaker stands with tube diameter of 35 mm
24471 Speaker wall mount
24352 Adapter panel 1 (Vertical)
24354 Adapter panel 2 (Horizontal)
