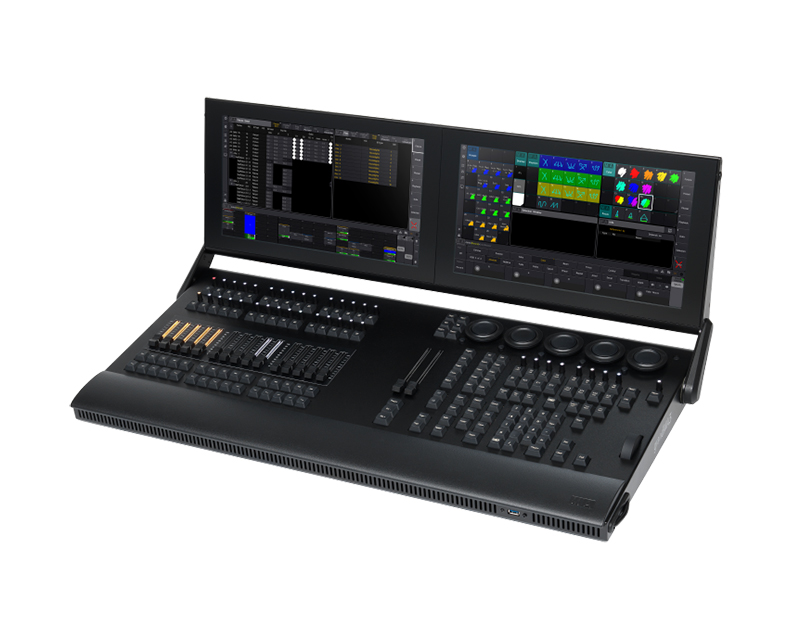

grandMA3 compact XT

Parameters 8 192 (HTP/LTP)
Parameters Mode2 4 096 (HTP/LTP)
Operating voltage/ Supply voltage AC 100 – 240 V; 50/60 Hz
Power max. 250 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 845 x 429 x 160 mm / 34 x 17 x 7 in
(width x depth x height, folded)

845 x 563 x 325 (max. 410) mm / 34 x 23 x 13 (max. 17) in
(width x depth x height, unfolded)
Net weight 20 kg / 45 lbs
Connectors 1 x powerCON TRUE1
3 x etherCON/RJ45
6 x DMX512-A Out (5pin XLR female)
1 x DMX512-A In (5pin XLR male)
1 x MIDI In (5pin DIN female)
1 x MIDI Out (5pin DIN female)
1 x Linear Timecode (3pin XLR female)
1 x Audio In (3pin XLR female)
1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
1 x DisplayPort 1.2 for external screens
2 x S/PDIF In and Out
3 x USB 2.0 (type A)
2 x USB 3.0 (type A)
1 x LED desk light (4pin XLR female)
