Parameters 8 192 (HTP/LTP)
Parameters Mode2 4 096 (HTP/LTP)
Operating voltage/ Supply voltage AC 100 – 240 V; 50/60 Hz
Power max. 200 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 482 x 372 x 87 mm / 19 x 15 x 4 in
(width x depth x height)
Net weight 6 kg / 14 lbs
Connectors 1 x powerCON TRUE1
3 x etherCON/RJ45
6 x DMX512-A Out (5pin XLR female)
1 x DMX512-A In (5pin XLR male)
1 x MIDI In (5pin DIN female)
1 x MIDI Out (5pin DIN female)
1 x Linear Timecode (3pin XLR female)
1 x Audio In (3pin XLR female)
1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
2 x DisplayPort 1.2 for external screens
2 x S/PDIF In and Out
5 x USB 2.0 (type A)

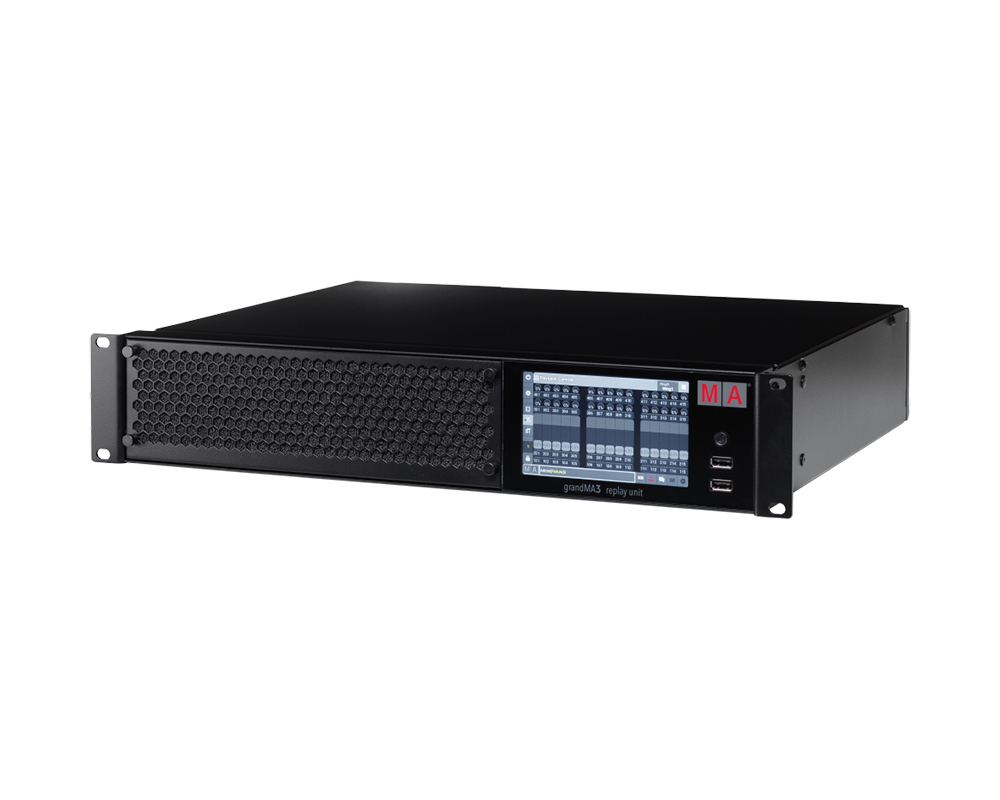

grandMA3 replay unit
Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
6 DMX outputs, 1 DMX input
2 external multi-touch screens can be connected
1 internal multi-touch command screen
3 etherCON connectors
5 USB connectors
Various control interfaces
| Thương hiệu | MA Lighting |
|---|
Mô tả
Đánh giá (0)
Vận chuyển & giao hàng
Sản phẩm tương tự
grandMA3 2Port Node
Parameters none
Parameters Mode2 none
Operating voltage/ Supply voltage AC 100 - 240 V; 50/60 Hz
Power max. 15 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 207 x 184 x 43 mm / 9 x 8 x 2 in
(width x depth x height)
Net weight 2 kg / 5 lbs
Connectors: 1 x powerCON TRUE1, 1 x etherCON/RJ45, 2 x DMX512-A Out (5pin XLR female), 1 x USB 2.0 (type A)
grandMA3 4Port Node
Parameters none
Parameters Mode2 none
Operating voltage/ Supply voltage AC 100 - 240 V; 50/60 Hz
Power max. 15 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 207 x 184 x 43 mm / 9 x 8 x 2 in
(width x depth x height)
Net weight 2 kg / 5 lbs
Connectors: 1 x powerCON TRUE1, 1 x etherCON/RJ45, 4 x DMX512-A Out (5pin XLR female), 1 x USB 2.0 (type A)
grandMA3 8Port Node
Parameters none
Parameters Mode2 none
Operating voltage/ Supply voltage AC 100 - 240 V; 50/60 Hz
Power max. 15 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 482 x 189 x 43 mm / 19 x 8 x 2 in
(width x depth x height)
Net weight 2 kg / 5 lbs
Connectors: 1 x powerCON TRUE1, 1 x etherCON/RJ45, 8 x DMX512-A Out (5pin XLR female), 1 x USB 2.0 (type A)
grandMA3 compact
Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
6 DMX outputs, 1 DMX input
1 internal foldable monitor multi-touch screen
1 external multi-touch screen can be connected
29 rotary RGB backlit encoder
5 dual encoders
10 backlit motorized 60 mm faders
40 separate playbacks
16 assignable x-keys
3 etherCON connectors, 5 USB connectors
2 backlit motorized A/B faders 100 mm
Individually backlit and dimmable silent (clickless) keys
grandMA3 light CRV
Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
6 DMX outputs, 1 DMX input
2 internal letterbox multi-touch screens
2 internal multi-touch command screens
4 external multi-touch screens can be connected
41 rotary RGB backlit encoder
5 backlit dual encoders
15 backlit motorized 60 mm faders
60 separate playbacks
16 assignable x-keys
Integrated keyboard drawer
Built-in uninterruptible power supply (UPS)
3 etherCON connectors, 6 USB connectors
2 backlit motorized A/B faders 100 mm
Individually backlit and dimmable silent (clickless) keys
grandMA3 processing unit L
Parameters 8 192 (HTP/LTP)
Parameters Mode2 4 096 (HTP/LTP)
Operating voltage/ Supply voltage AC 100 - 240 V; 50/60 Hz
Power max. 200 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 482 x 372 x 87 mm / 19 x 15 x 4 in
(width x depth x height)
Net weight 5 kg / 12 lbs
Connectors: 1 x powerCON TRUE1, 2 x etherCON/RJ45, 8 x DMX512-A Out (5pin XLR female), 3 x USB 2.0 (type A)
