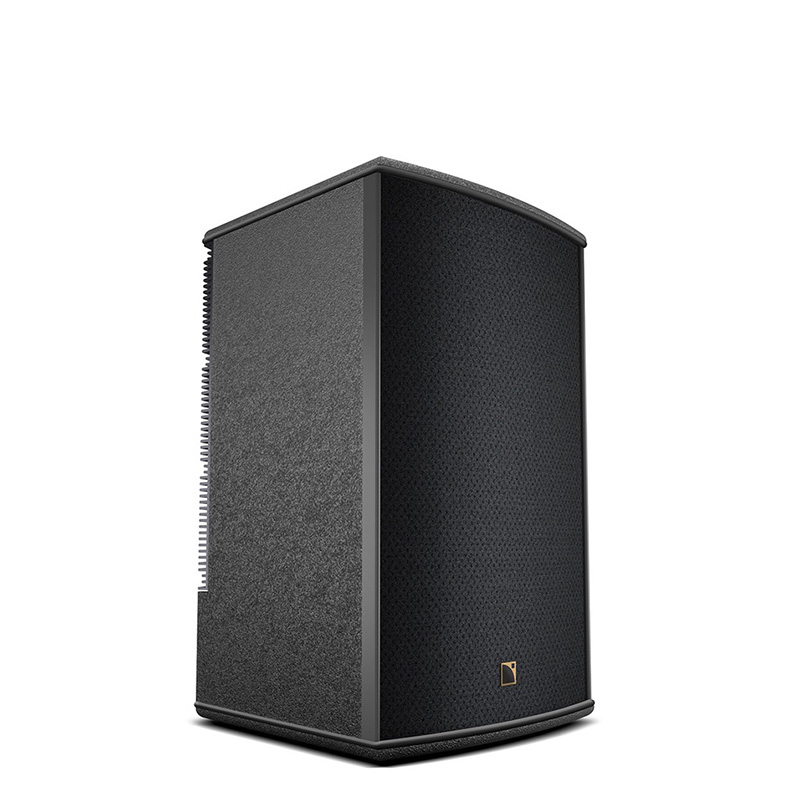

L-Acoustics 108P

Effortless logistics
Self-powered, active 2-way, 8″
POINT SOURCE
COAXIAL
Max SPL 127 dB
Bandwidth 55 Hz- 20 KHz
Transducers LF : 1 x 8″ + HF : 1 x 1.5″
Weight 13 kg / 29 lb
Directivity H: 100° / V: 100°

Thương hiệu	L-Acoustics
Âm thanh	active, full-range, monitor

Thương hiệu

L-Acoustics

Âm thanh

active, full-range, monitor

Electroacoustic specs

Self-powered coaxial loudspeaker

Usable bandwidth (-10 dB)	55 Hz – 20 kHz ([108P_FR])
Maximum SPL¹	127 dB ([108P_FI])
Nominal directivity (-6 dB)	100° axi-symmetric
Monitor angle	30°
Transducers	LF: 1 × 8″ cone driver HF: 1 × 1.5″ diaphragm compression driver
Acoustical load	LF: bass-reflex, L-Vents

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Electronics specs

Mains	120V/240V switchable, 2x Powercon® (IN & LINK)
Input stage	10 kΩ, balanced, max level of +12 dBu (at 0 dB gain setting)
Filtering	Active network (component EQ, time alignment, and X-over)
DSP	24 bit / 48 kHz
Amplified power rating	HF: 500 W, 8 ohms / LF: 260 W, 8 ohms
Gain control	Potentiometer, from –∞ to +6 dB
Indicators	LEDs for clip, signal and preset

Physical specs

Connectors	IN: 1 × 3-point XLR LINK: 1 × 3-point XLR
Rigging and handling	1 x 35 mm (1.38 in) diameter pole mount socket
Weight (net)	13 kg / 28.6 lb
Cabinet	premium grade Baltic birch plywood
Front	Coated steel grill Acoustically neutral 3D fabric
Finish	dark grey brown RAL 8019 pure white RAL 9010
IP	IP30
