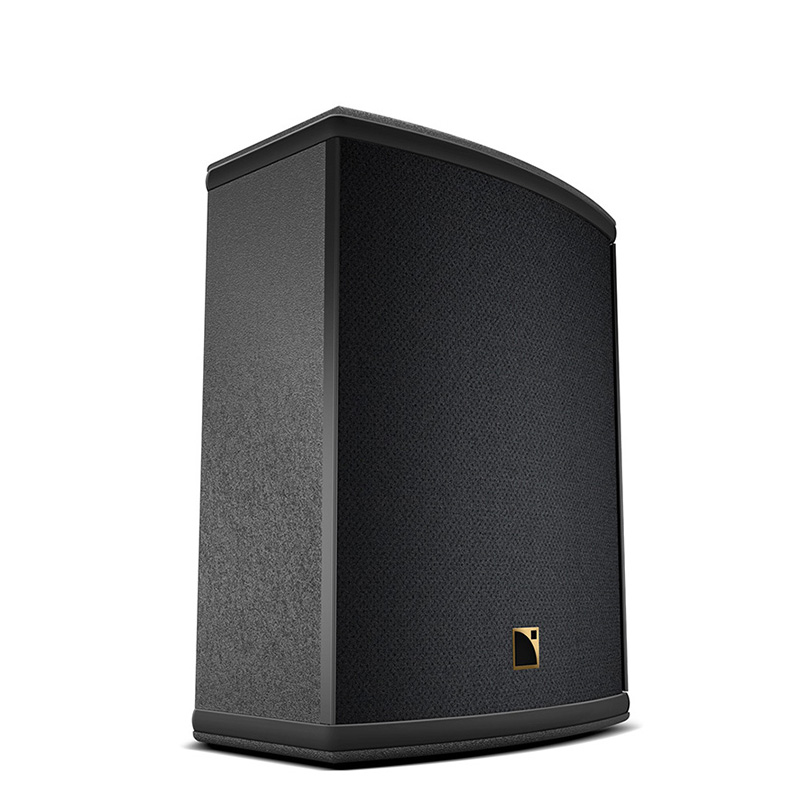

L-Acoustics 112P

Effortless logistics
Self-powered, passive 2-way, 12”
POINT SOURCE
COAXIAL
Max SPL 133 dB
Bandwidth 50 Hz- 20 KHz
Transducers LF : 1 x 12″ + HF : 1 x 3″
Weight 32 kg / 71 lb
Directivity H: 90° / V: 90°

Thương hiệu	L-Acoustics
Âm thanh	active, full-range, monitor

Thương hiệu

L-Acoustics

Âm thanh

active, full-range, monitor

Electroacoustic specs

Self-powered coaxial loudspeaker

Usable bandwidth (-10 dB)	50 Hz – 20 kHz ([112P_FR])
Maximum SPL¹	133 dB ([112P_FI])
Nominal directivity (-6 dB)	90° axi-symmetric
Monitor angle	30°
Transducers	LF: 1 × 12″ cone driver HF: 1 × 3″ diaphragm compression driver
Acoustical load	LF: bass-reflex

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Electronics specs

Mains	120V/240V switchable, 2x Powercon® (IN & LINK)
Input stage	10 kΩ, balanced, max level of +12 dBu (at 0 dB gain setting)
DSP	24 bit / 48 kHz
Amplified power rating	1000 W, 8 ohms
Gain control	Potentiometer, from –∞ to +6 dB
Indicators	LEDs for clip, signal and preset

Physical specs

Connectors	IN: 1 × 3-point XLR LINK: 1 × 3-point XLR
Rigging and handling	2 x integrated handles 1 x 35 mm (1.38 in) diameter pole mount socket
Weight (net)	32 kg / 72.5 lb
Cabinet	premium grade Baltic birch plywood
Front	steel with anti-corrosion coating
Finish	grey brown RAL 8019 pure white RAL 9010
IP	IP30
