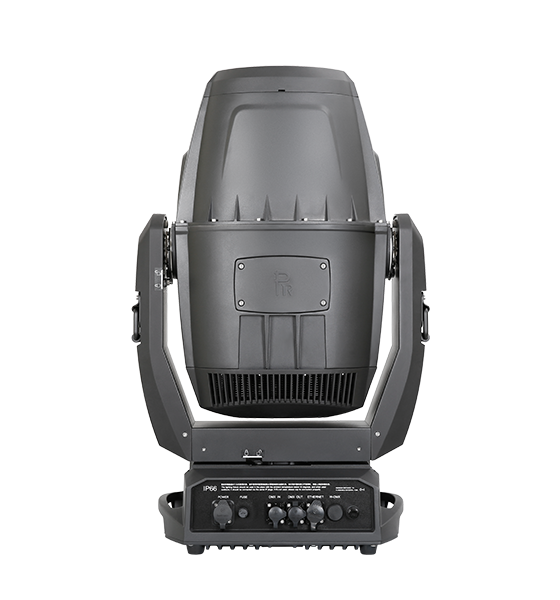

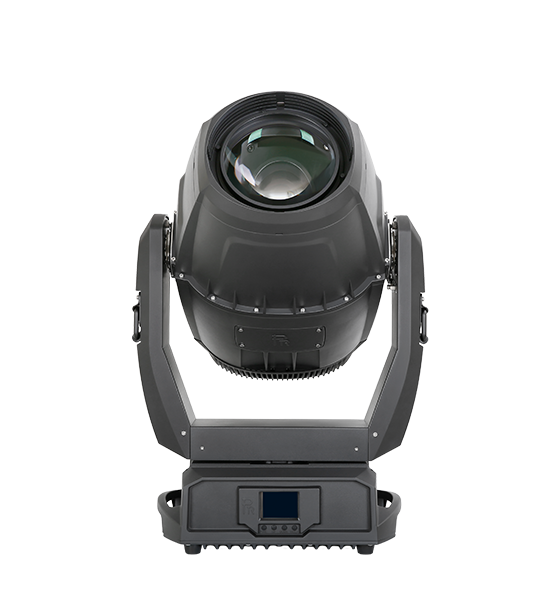

AQUA 580 BWS

Input Voltages
100-240V AC, 50/60Hz

Power Consumption
800W @ 220V

Light Source
PHILIPS MSD Platinum 25R (550W), (7,800K, 1,500 hrs)

Strobe
Double shutter blades, 0.3-25 F.P.S

Dimmer
0-100% linearly dimming

Colors
CMY linear color mixing system with macros
1 Color wheel: 12 dichroic color filters plus open
Rainbow effect with bi-directional and variable speeds
Stepping/linear color changing

Gobos
1 Fixed gobo wheel: 17 gobos plus open
Bi-directionally rotatable, and shakable effect at variable speeds
1 Rotating gobo wheel: 7 interchangeable gobos plus open
Bi-directionally rotatable, and shakable at variable speeds

Prism
Four prisms (standard: 8-facet circular + 4-facet linear + 9-facet circular + gradient prisms), bi-directional rotation with variable speeds, optional: other prisms

Frost
One frost filter

Effect
1 Effect wheel, can overlap with gobos, bi-directional rotation with variable speeds

Focus/Zoom
DMX linear focus/zoom

Head Movement
Pan 540°, tilt 270° with auto position correction

Light Angle
Beam mode: 0°~2°
Spot mode: 2°~40°
Wash mode: 3°~50°

Control
International DMX512, 5 pins (optional 3 pins) interface

RDM control protocol
Short mode 23 channels, standard mode 31 channels and extended mode 35 channels
Self-test mode

Other Functions
Adjustable pan & tilt speed
LCD display screen
Fixture and lamp usage time display
Modular structure for easy maintenance
DMX512 wireless receiver
DMX512 wireless transmitter (optional)
Physical

Housing: cast aluminum and high temperature UV resistant ABS, IP66
Ambient temperature: maximum 45°C

Weight
Net weight: 37.6 Kg

Packaging
Standard: carton 770×730×650 (mm)
Optional: flight case 625×545×800 (mm)

Accessories
G clamp: 2 pcs
5 Pins XLR connector: 1 set
Safety cord: 1 pc
Power cord: 1 pc
Optional: Ω clamp: 2 pcs
