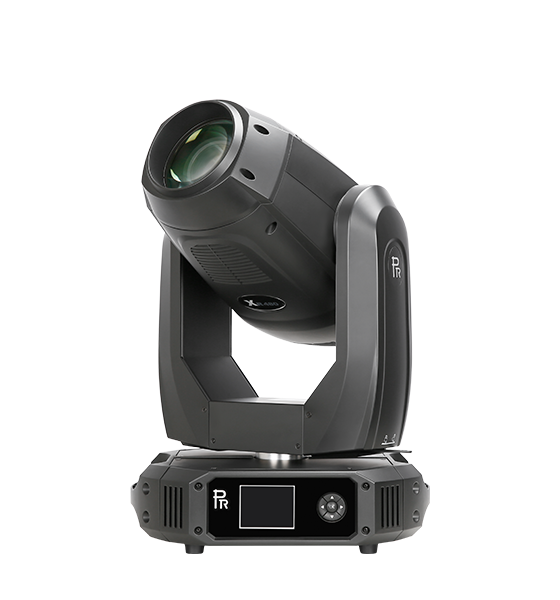

XR 480 BWS

Input Voltages
100-240V AC, 50/60Hz

Power Consumption
680W@220V

Light Source
OSRAM SIRIUS HRI 470W (S7,800K±300K, 1,500 hrs)

Strobe
Double shutter blades, 0.3~25 F.P.S

Dimmer
0-100% linear adjustment

Colors
CMY linear color mixing with macros
1 Color wheel: 13 dichroic color filters(with CTO) plus open
Rainbow effect with bi-directional and variable speeds
Stepping/linear color changing

Gobos
1 Fixed gobo wheel: 10 gobos plus open
Bi-directionally rotatable, and shakable effect at variable speeds
1 Rotating gobo wheel: 9 interchangeable gobos plus open
Bi-directionally rotatable, and shakable at variable speeds

Prism
Two prisms(standard: 8-facet and 16-facet prisms)
Optional: 3-facet/16-facet liner prism or gradient prism
Bi-directional rotating at variable speeds

Frost
One frost filter

Diffuser
One independent diffuser(optional even beam mode)

Focus
DMX linear focus

Zoom
DMX linear zoom

Head Movement
Pan 540°, tilt 270° with auto position correction

Light Angle
Beam mode: 2.3°~1°
Spot mode: 5°~40°
Wash mode: 5°~50°

Control
International DMX512, 5 pins(optional 3 pins) interface
Short mode 23 channels, standard mode 28 channels, extended mode 33 channels
Self-test mode

Other Functions
Adjustable pan & tilt speed
LCD display screen
Fixture and lamp hours display
Modular structure for easy maintenance
DMX512 wireless receiver
DMX512 wireless transmitter(optional)

Physical
Housing: high temperature engineering plastic, IP20
Ambient temperature: maximum 45°C

Weight
Net weight: 22.2Kg

Packaging
Standard: carton 640×510×530(mm)
Optional: flight case 860×550×750(mm)

Accessories
G clamp, 2 pcs
5 pins XLR connector, 1 set
Safety cord, 1 pc
Optional: Ω clamp, 2 pcs
