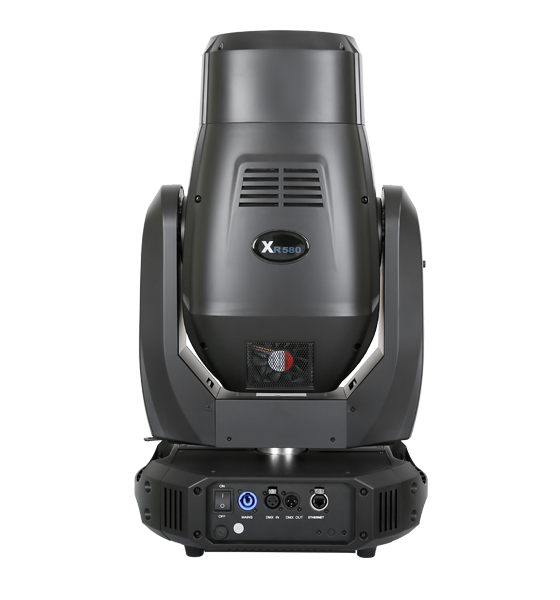

XR 580 Beam

■ Input Voltages
100-240V AC, 50/60Hz

■ Power Consumption
800W @ 220V

■ Light Source
PHILIPS MSD Platinum 25R 550W, (7,800~300K, 1,500 hrs)
Optional: OSRAM SIRIUS HRI 550W XL, (7,500~300K, 1,500 hrs)

■ Strobe
Double shutter blades, 0.3~25 F.P.S

■ Dimmer
0-100% linear adjustment

■ Colors
CMY linear color mixing with macros
1 Color wheel: 12 dichroic color filters plus open
Rainbow effect with bi-directional and variable speeds
Stepping/linear color changing

■ Gobos
1 Fixed gobo wheel: 18 gobos plus open
Bi-directionally rotatable, and shakable effect at variable speeds
1 Rotating gobo wheel: 7 interchangeable gobos plus open
Bi-directionally rotatable, and shakable at variable speeds

■ CTO
Independent 0-100% linear CTO

■ Prism
Three prisms(standard: 8-facet+16-facet+4-facet prism),
bi-directional rotation with variable speeds, optional: 3-facet, gradient prisms

■ Frost
One frost filter

■ Focus
DMX linear focus

■ Head Movement
Pan 540°, tilt 270° with auto position correction

■ Light Angle
2°

■ Control
International DMX512, 5 pins(optional 3 pins) interface
Short mode 22 channels, standard mode 26 channels, extended mode 30 channels
Self-test mode

■ Other Functions
Adjustable pan & tilt speed
LCD display screen
Fixture and lamp hours display
Modular structure for easy maintenance
DMX512 wireless receiver
DMX512 wireless transmitter(optional)

■ Physical
Housing: high temperature engineering plastic, IP20
Ambient temperature: maximum 42°C

■ Weight
Net weight: 25Kg

■ Packaging
Standard: carton N/A
Optional: flight case N/A

■ Accessories
G clamp, 2 pcs
5 pins XLR connector, 1 set
Safety cord, 1 pc
Optional: Ω clamp, 2 pcs
