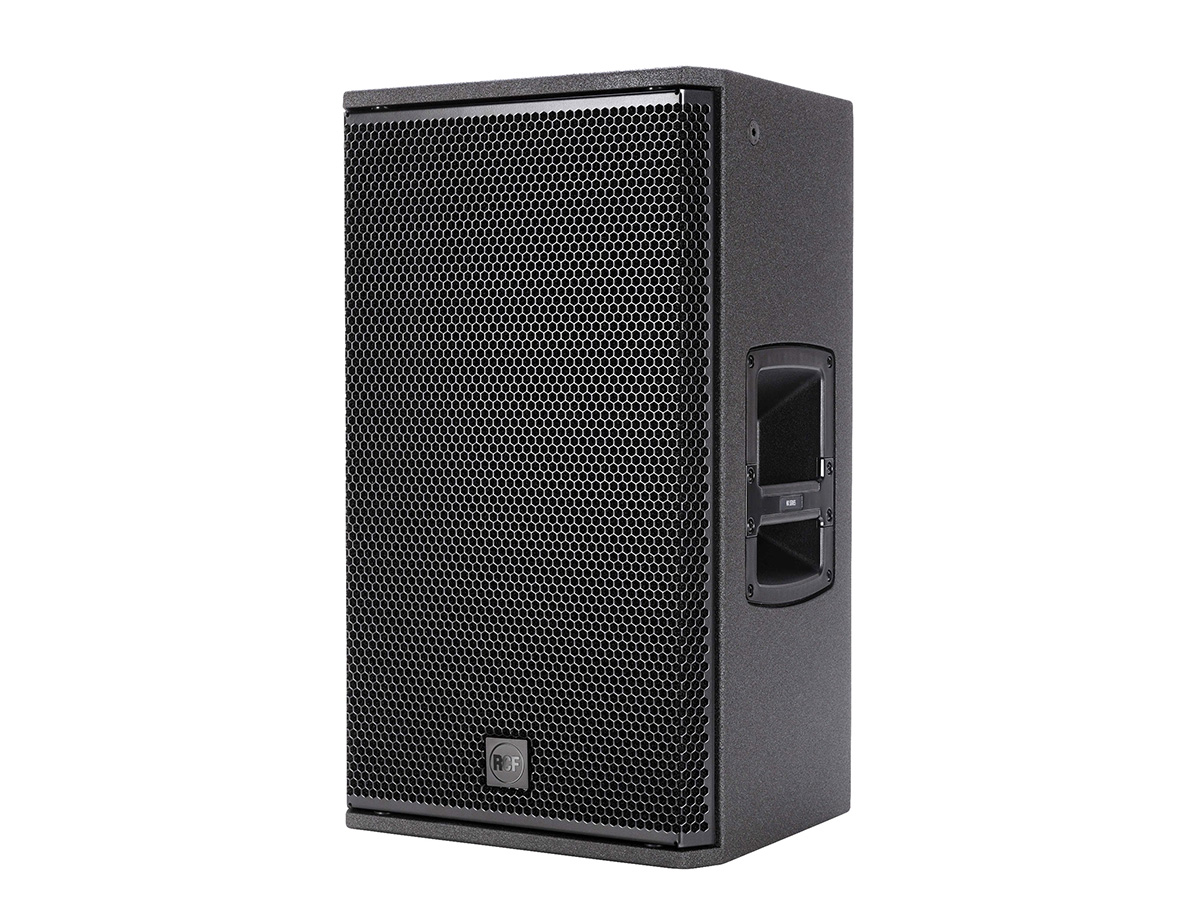

RCF NX 912-A

NX 912-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75″ compression driver, 12″ woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 912-A blends high-performance and reliability in a compact package. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

ACOUSTICAL SPECIFICATIONS
Frequency Response:50 Hz ÷ 20000 Hz
Max SPL @ 1m:130 dB
Horizontal coverage angle:100°
Vertical coverage angle:60°

TRANSDUCERS
Compression Driver:1 x 1.0”, 1.75” v.c
Woofer:12”, 2.5” v.c

INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR, Jack
Output connectors:XLR
Input sensitivity:-2 dBu/+4 dBu

PROCESSOR SECTION
Crossover Frequencies:1600 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Linear, Boost, Stage, Volume

POWER SECTION
Total Power:2100 W Peak
High frequencies:700 W Peak
Low frequencies:1400 W Peak
Cooling:Convection
Connections:VDE

STANDARD COMPLIANCE
Safety agency:CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material:Plywood
Hardware:2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
Handles:1 x Side
Pole mount/Cap:Yes
Grille:Steel
Color:Black

SIZE
Height:620 mm / 24.41 inches
Width:362 mm / 14.25 inches
Depth:405 mm / 15.94 inches
Weight:20.8 kg / 45.86 lbs

SHIPPING INFORMATION
Package Height:666 mm / 26.22 inches
Package Width:461 mm / 18.15 inches
Package Depth:416 mm / 16.38 inches
Package Weight:22.8 kg / 50.27 lbs
