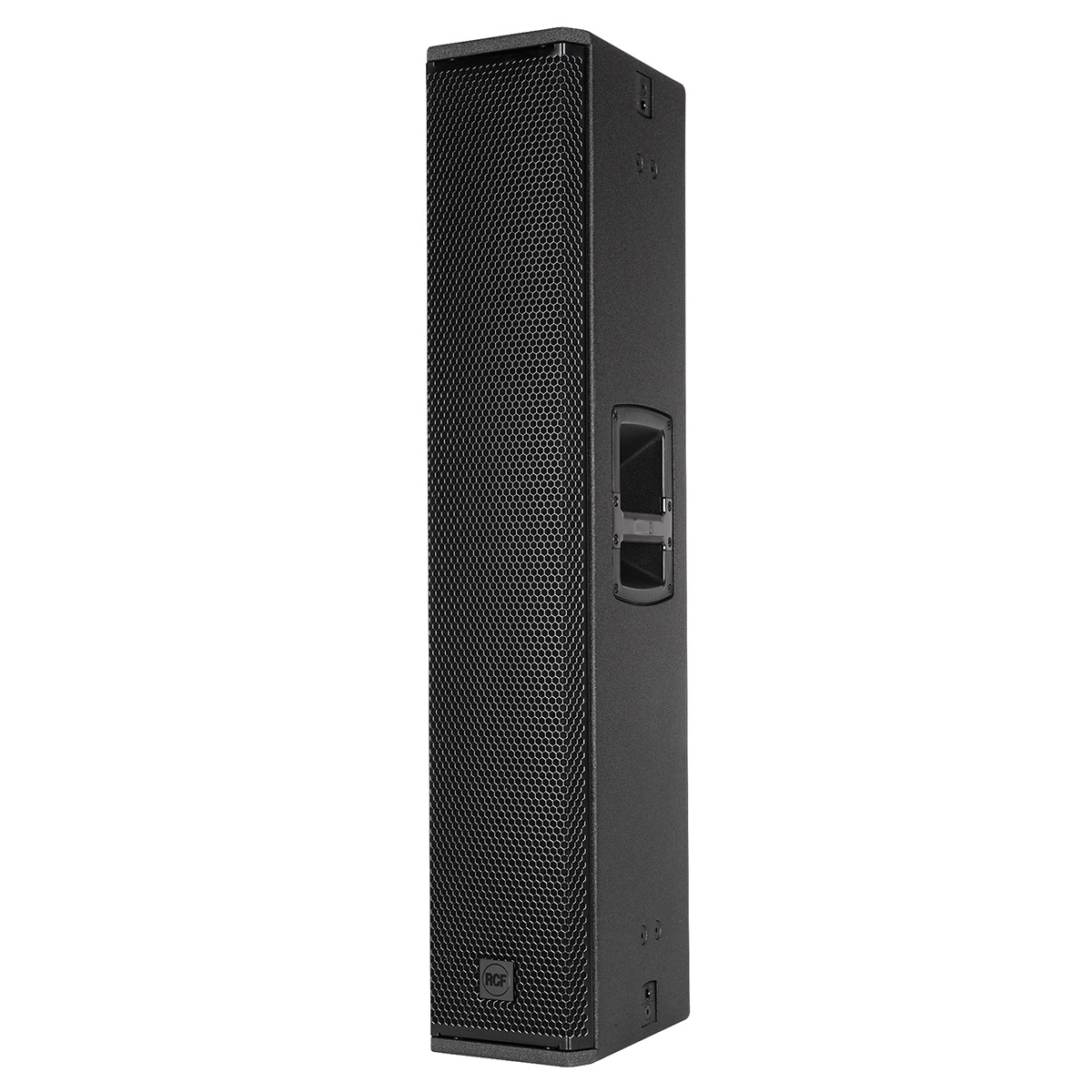

RCF NXL 24-A MK2

RCF NXL 24-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2100W two-channel amplifier produce coherent 100° x 30° coverage for the listening area with up to 132 dB. The two-way design features four 6” neodymium woofers and a 3” driver on an asymmetrical waveguide. The horn’s design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 60 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 24-A MK2 for extended coverage. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 24-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood cabinet is easy to carry and installed securely using the dedicated rigging points.

ACOUSTICAL SPECIFICATIONS
Frequency Response: 60 Hz ÷ 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 30°

TRANSDUCERS
Compression Driver: 1 x 1.4” neo, 3.0” v.c
Woofer: 4 x 6.0” neo, 1.5” v.c

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: +4 dBu

PROCESSOR SECTION
Crossover Frequencies: 800
Protections: Thermal, Excurs., RMS
Limiter: Soft Limiter
Controls: Linear, 2 Speakers, High-Pass, Volume

POWER SECTION
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE
Safety agency: CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood
Hardware: 4 x M8, 4 x quick lock
Handles: 2 side
Pole mount/Cap: Yes
Grille: Steel
Color: Black

SIZE
Height: 1056 mm / 41.57 inches
Width: 201 mm / 7.91 inches
Depth: 290.4 mm / 11.43 inches
Weight: 24.4 kg / 53.79 lbs

SHIPPING INFORMATION
Package Height: 320 mm / 12.6 inches
Package Width: 1080 mm / 42.52 inches
Package Depth: 230 mm / 9.06 inches
Package Weight: 27.5 kg / 60.63 lbs
