The SUB 9004-AS is a single 18” high power active subwoofer. It employs a state of the art transducer featuring a hypervented high power neodymium magnetic circuit with 4” voice coil. The extremely high power amplifier is a new design that delivers extended low frequency performance. Due to its rugged construction it is perfect for AV rental inventories.

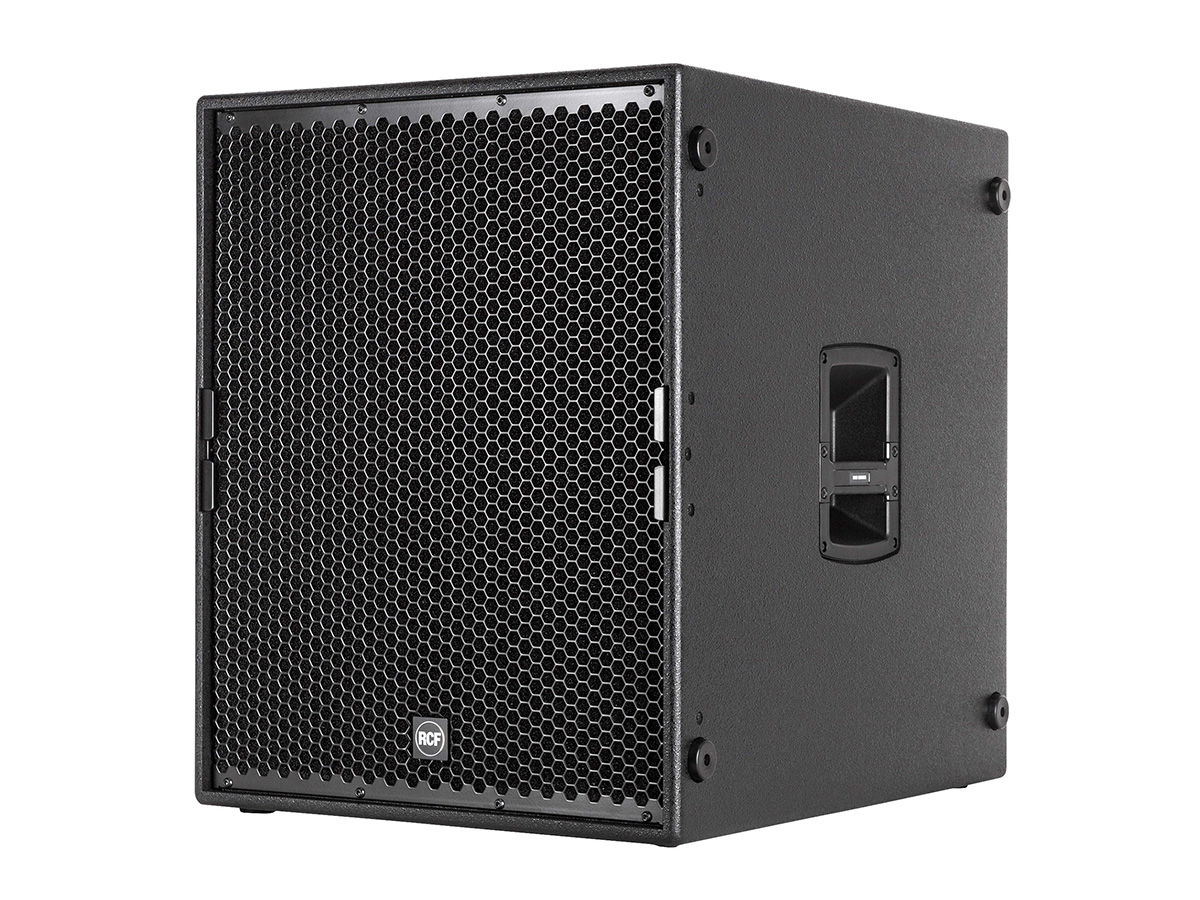

RCF SUB 9004-AS
2800 W power rating
136 dB SPL Max
30 – 400 Hz Frequency Range
1 x 18″ Hyper Ventilation Neodymium Subwoofer
DSP Controlled Input Section with selectable presets
RDNet remote monitoring and control
Delay Control
Baltic Birch Cabinet
| Thương hiệu | RCF |
|---|---|
| Âm thanh | active, subwoofer |
Mô tả
ACOUSTICAL SPECIFICATIONS
Frequency Response:30 Hz ÷ 400 Hz
Max SPL @ 1m:136 dB
TRANSDUCERS
Woofer:18” neo, 4.0” v.c
INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR, RDNet Ethercon
Output connectors:XLR, RDNet Ethercon
Input sensitivity:+4 dBu
PROCESSOR SECTION
Hi-Pass Frequencies:35 Hz, 50 Hz
Low-Pass Frequencies:Variable from 50 Hz to 400 Hz
Protections:Thermal, RMS
Limiter:Fast Limiter
Controls:Gain, Eq., Preset Switch, Output Delay
RDNet:Yes
POWER SECTION
Total Power:2800 W Peak, 1400 W RMS
Cooling:Forced
Connections:Powercon IN/OUT
STANDARD COMPLIANCE
Safety agency:CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:Baltic birch plywood
Hardware:2xM20
Handles:2 Side
Grille:Steel
Color:Black
SIZE
Height:700 mm / 27.56 inches
Width:558 mm / 21.97 inches
Depth:700 mm / 27.56 inches
Weight:57 kg / 125.66 lbs
SHIPPING INFORMATION
Package Height:770 mm / 30.31 inches
Package Width:770 mm / 30.31 inches
Package Depth:630 mm / 24.8 inches
Package Weight:61.8 kg / 136.25 lbs
