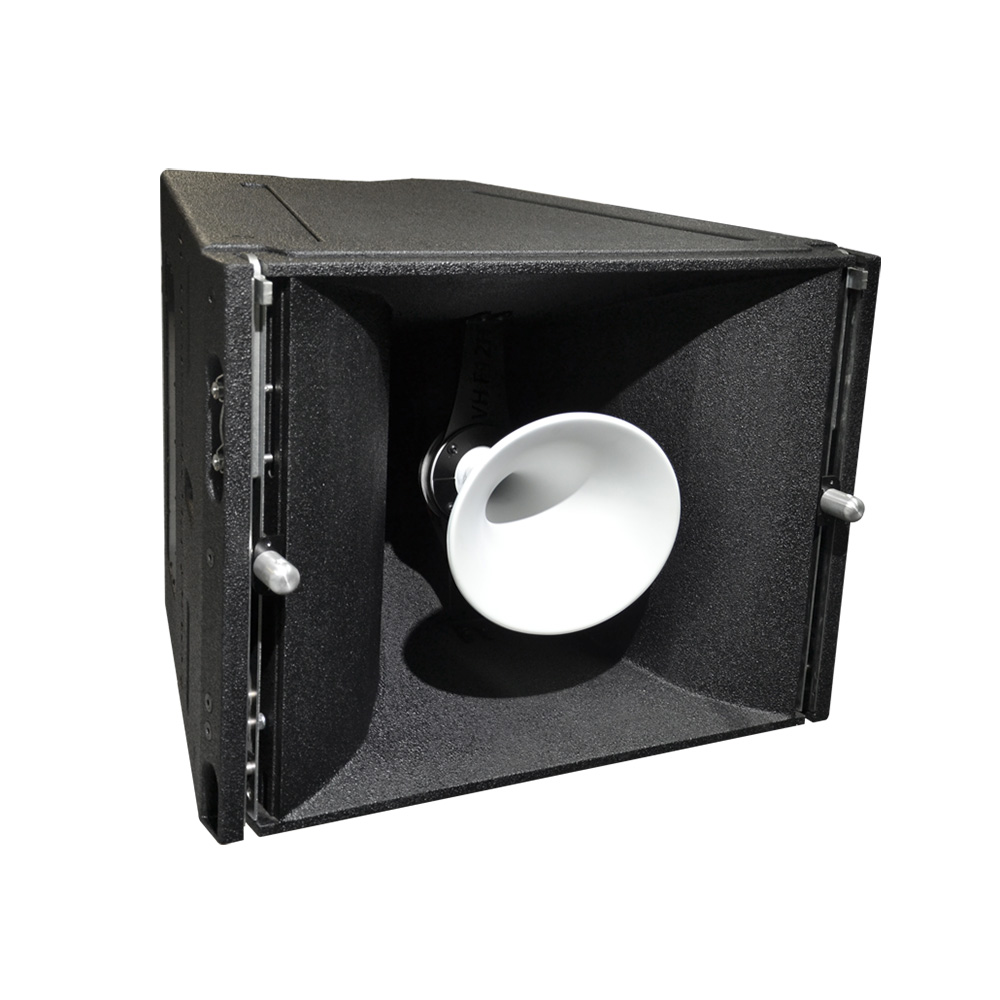

VH F12H is a dedicated fully horn loaded Mid-Hi enclosure housing a single 12in. (320mm) low-mid transducer and a 1.4in. exit compression driver coaxially mounted on the LMF horn.
The HF 1.4in. compression driver is combined with a conical waveguide giving a dispersion of 60 deg. H x 40 deg. V.
The LMF section features a single generous 12in. neodymium transducer mounted on constant directivity horn and performing a sensitivity of 110 dB (1 W @ 1 m), a huge gain compared with traditional direct radiating LMF drivers.
Considering its output performance the VH F12H is an incredibly compact and lightweight enclosure.
No compromise LMF/MHF fully horn loaded coaxial design offers the advantage of a superior sound impact, sonically the perception is a large source image, completed with a greater off-axis coherence.
A dedicated flybar kit and a proprietary built in fast rigging system allow to build large scale clusters of multiple arrays up to 16 units each, providing the optimal vertical coverage with two angle steps: 0° and 7,5° as maximum splay.
The VH F12H can also be ground stacked in every applications where suspension is not allowed, creating a massive wavefront output.
Ideal companion of this special device is the VH Bass215H, boosting its LF extension down to 60 Hz.
Completing the system configurations the VH F12H is efficiently configurable with an infra-bass unit such as the VH Subwoofer or Formula Sub F221, also without using the VH Bass215H.
Significant construction criteria, combined with the latest technologies and innovative materials, ensure a great reliability over time.
The VH F12H cabinet is constructed from marine Birch-ply and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.
The system can be as well matched with all the most challenging Loud Professional Formula and VH subwoofer systems, significantly boosting its LF extension.
Applications: Theaters, Conference Halls, Concert Halls, Large Scale Discos & Clubs.
