VH e-motion Series is considered the early 2000’s Loud Professional flagship from which came out our fundamental principles that became a true guideline.
Controlled directivity, High efficiency, Lower distortions, Powerful bass and Strong impact, Wide dynamics range, Flat and smooth frequency response are some of the main features of the VH e-motion Series.
Emotions are something that cannot be explained by a technical process. Emotions are feelings, sensations, perceptions, something magical!
Wherever you move, horizontally and vertically, within the venue the mission is deliver the best quality listening experience never felt before! Giving exactly everyone the same emotions having an extraordinary sound impact never tiring the hearing for a clear, undistorted, well detailed and extended frequency response.
This ambitious concept characterizes VH e-motion Series from which it takes the name by the same emotions experienced on the Vertical “V” and horizontal “H” axis.

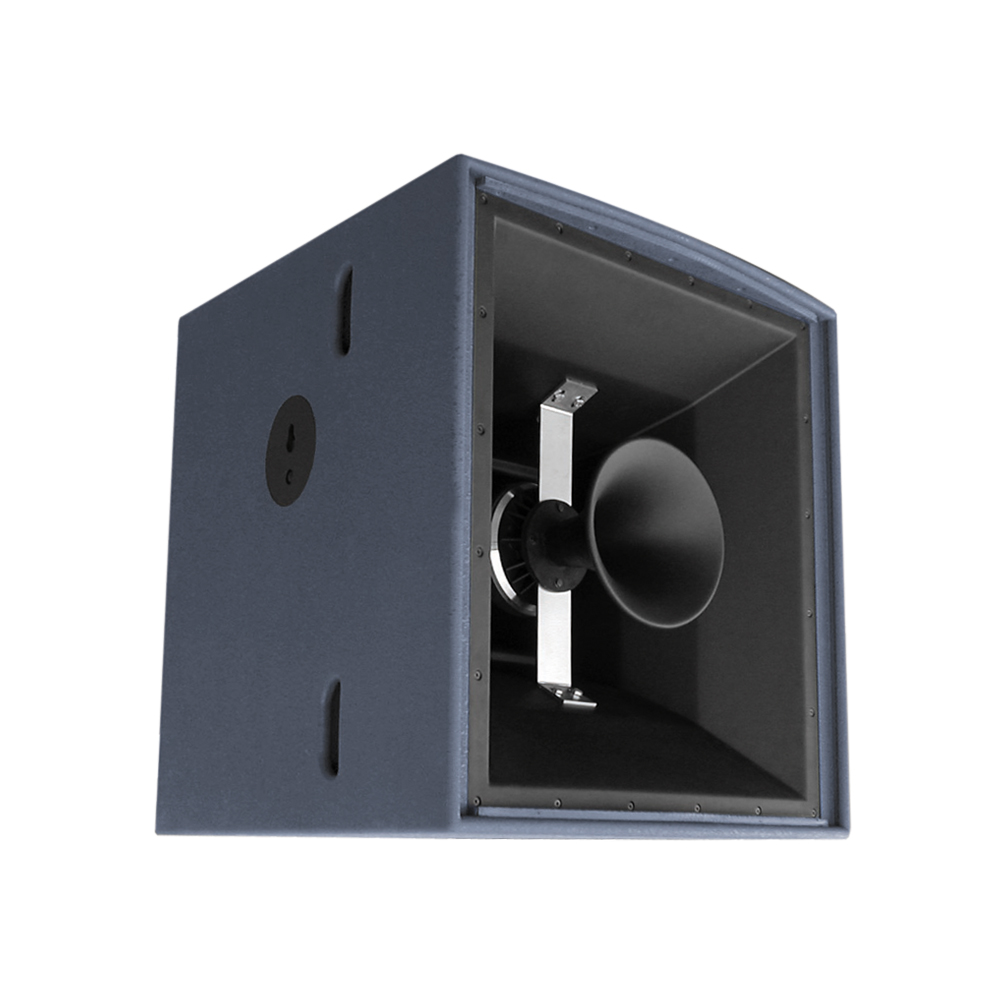

The VH MH210H is a fully horn loaded dedicated Mid-Hi enclosure housing two 10in. (250mm) Low-Mid transducers and a special 2in. exit compression driver coaxially mounted on the LMF horn.
The HF section consists in a special coaxial compression driver that comprises two diaphragms in the same package: 3.5in. dedicated to the Mid range and 1.75in. expressly dedicated to the Hi range.
The result of using small format diaphragms instead of the competitors traditional large format, which are typically managed an octave lower, is a decreased distortion and an extremely linear and smooth response never tiring the ear at its most sensitive focal point.
It means that VH M210H HF section delivers an incomparable high frequency response with much lower distortion than traditional single large format compression driver devices, mostly because of the two subunits working together all in one.
A dedicated phase plug provides a coherent planar wavefront output without internal diffraction for a crystal and transparent sound.
This particular device is combined with a conical waveguide giving a dispersion of 60 deg. H x 40 deg. V.
The LMF section features two generous 10in. neodymium transducers mounted on constant directivity horn delivering a sensitivity of 114 dB @ 1 m/2.83V, a huge gain compared with traditional direct radiating drivers.
The LMF/HF fully horn loaded coaxial design with no compromise offers the advantage of a superior sound impact, sonically the perception is a large source image, combined with a greater off-axis coherence.
Ideal companion of this special device is the VH Bass215H, identical in shape, boosting its LF extension down to 60 Hz.
A dedicated flybar kit and a proprietary fast rigging system allow to build large scale clusters of multiple vertical arrays up to 16 units.
Each array can be configured coupling both of the VH MH210H and the VH Bass215H. Completing the system configuration an infra bass unit further extends the response to the bottom end region down to 25 Hz.
Significant construction criteria, combined with the latest technologies and innovative materials, ensure a great reliability over time.
The system can be also ground stacked creating a massive wavefront output.
VH MH210H cabinet is constructed from marine Birch-ply and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.
The system can be as well matched with all the most challenging Loud Professional Formula and VH subwoofers, significantly boosting its LF extension.
Applications: Theaters, Conference Halls, Concert Halls, Large Scale Discos & Clubs.
