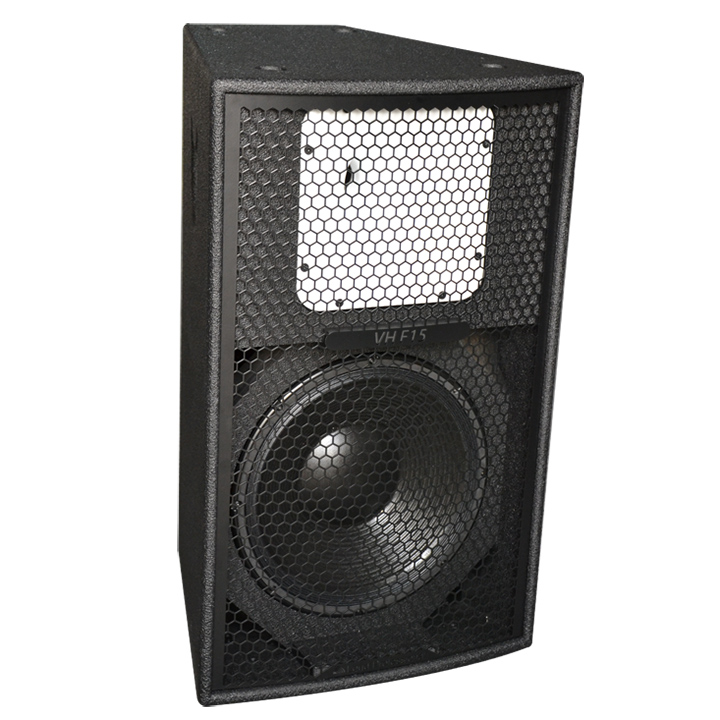

VH F15 is a two way point source system optimized for medium throw applications, incredibly compact for its LF output performance in a single wide-bandwidth bass-reflex enclosure.
The system houses 1 x 15in. (380mm) LMF transducer and 1 x 2in. (50mm) exit MHF compression driver mounted on 60deg. H x 40deg. V constant directivity horn, operating from 1k5Hz upwards, intended for a wide range of permanently installed applications. Thank to its frequency response extended from 50 Hz to 20 kHz, the F15 can be used as a stand-alone full range system, or supplemented with a Loud Professional subwoofer.
It can be stacked on top of a subwoofer system or flown individually.
The VH F15 is configured in a vertically formatted, trapezoidal Birch-ply cabinet and fitted with eight M10 threaded inserts to facilitate the individual horizontal or vertical suspension.

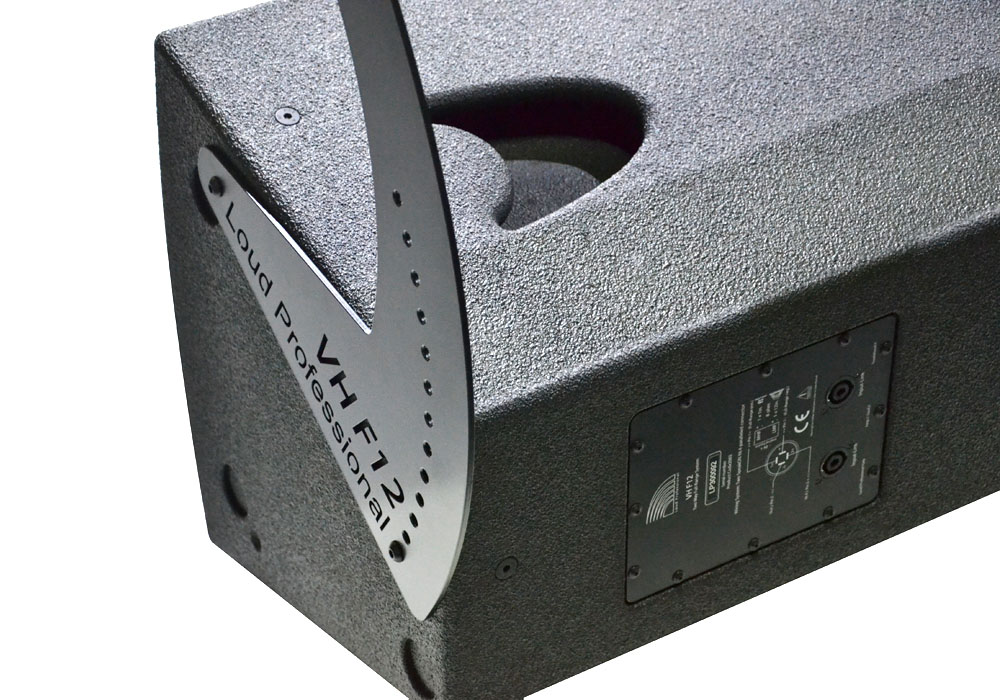

A dedicated flybar-kit, expressly designed for fixed or temporary installations, allows the cluster building of three units coupled together.
A connector plate to be installed on top and bottom sides allows the perfect alignment of the clustered speakers front.
Significant construction criteria, combined with the latest technologies and innovative materials, ensure a great reliability over time.
VH F15 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.
The system can be as well matched with all the most challenging Loud Professional Formula and VH subwoofer systems, boosting its LF extension.
Applications: Theaters, Conference Halls, Concert Halls, Large Scale Discos, Clubs & Bar.
