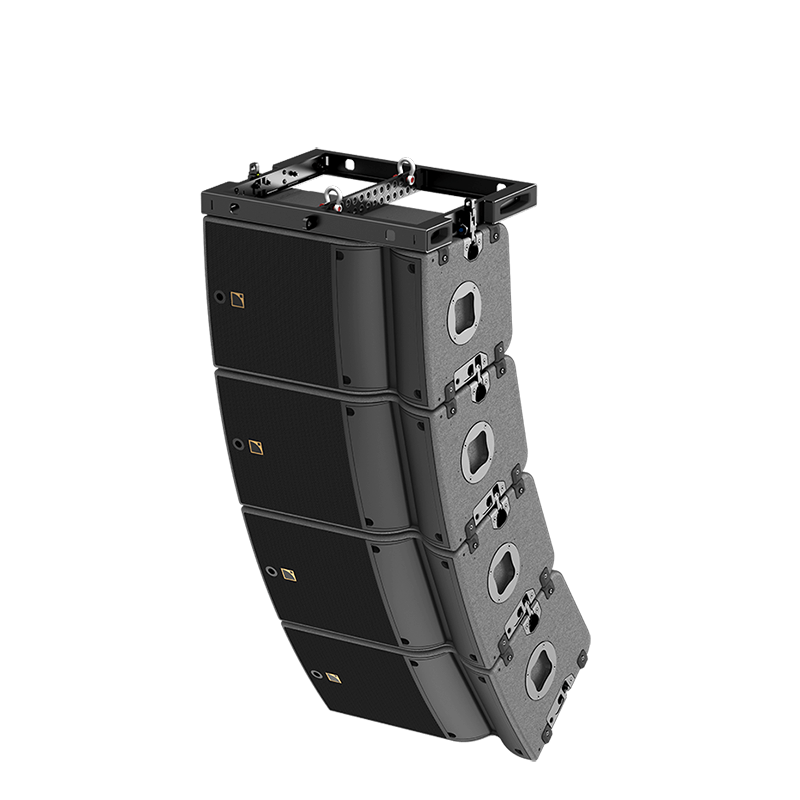

L-Acoustics A10 Focus

Performance and discretion
2-way passive, 10″
CONSTANT CURVATURE LINE SOURCE
L-VENTS
DOSC
PANFLEX
Max SPL 140 dB
Bandwidth 66 Hz – 20 KHz
Transducers LF : 1 x 10″ + HF : 1 x 2.5″
Weight 22 kg
Directivity H: 70° / 90° / 110° – V: 10°

Thương hiệu	L-Acoustics
Âm thanh	full-range, line-array, passive

Thương hiệu

L-Acoustics

Âm thanh

full-range, line-array, passive

Electroacoustic specs

2-way passive constant curvature WST® 10° enclosure
amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB)	66 Hz – 20 kHz ([A10])
Maximum SPL¹	140 dB ([A10])
Nominal directivity (-6 dB)	Enclosure: 10° L-Fins : 110° / 70° symmetric ; 90° asymmetric
Transducers	LF: 1 × 10″ cone drivers HF: 1 × 2.5″ diaphragm compression drivers
Acoustical load	LF: bass-reflex, L-Vents HF: DOSC waveguide; Panflex
Nominal impedance	8 Ω

¹ Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors	2 × 4-point speakON
Rigging and handling	flush-fitting 2-point rigging system 2 × handles 8 × corner stop 2 × ground runner 1 DIN580-compatible M8 threaded insert
Weight (net)	22 kg / 49 lb
Cabinet	premium grade Baltic beech and birch plywood
Front	Coated steel grill Acoustically neutral 3D fabric
Rigging components	High grade steel with anti-corrosion coating
Finish	dark grey brown Pantone 426 C
IP	IP55

Dimensions
