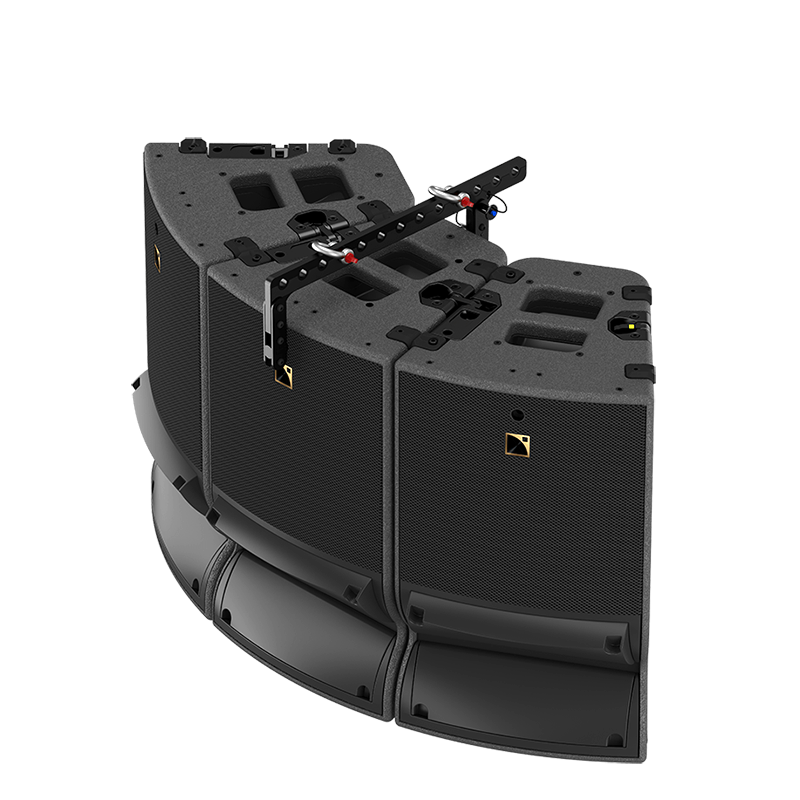

L-Acoustics A10 Wide

Performance and discretion
2-way passive, 10″
CONSTANT CURVATURE LINE SOURCE
L-VENTS
DOSC
PANFLEX
Max SPL 137 dB
Bandwidth 67 Hz – 20 KHz
Transducers LF : 1 x 10″ + HF : 1 x 2.5″
Weight 20 kg
Directivity H: 70° / 90° / 110° – V: 30°

Thương hiệu	L-Acoustics
Âm thanh	full-range, line-array, passive

Thương hiệu

L-Acoustics

Âm thanh

full-range, line-array, passive

Electroacoustic specs

2-way passive constant curvature WST® 30° enclosure
amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB)	67 Hz – 20 kHz ([A10])
Maximum SPL¹	137 dB ([A10])
Nominal directivity (-6 dB)	enclosure: 30° L-Fins: 70° / 110° symmetric or 90° asymmetric
Transducers	LF: 1 × 10″ neodymium cone driver HF: 1 × 2.5″ neodymium diaphragm compression driver
Acoustical load	L-Vents, bass-reflex HF: DOSC waveguide, Panflex
Nominal impedance	8 Ω

¹ Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors	2 × 4-point speakON
Rigging and handling	flush-fitting 2-point rigging system 2 × handle 8 × corner stop 2 × ground runner 1 DIN580-compatible M8 threaded insert
Weight (net)	20 kg / 44 lb
Cabinet	premium grade Baltic beech and birch plywood
Front	coated steel grill acoustically neutral 3D fabric
Rigging components	high grade steel with anti-corrosion coating
Finish	dark grey brown Pantone 426 C
IP	IP55

Dimensions
