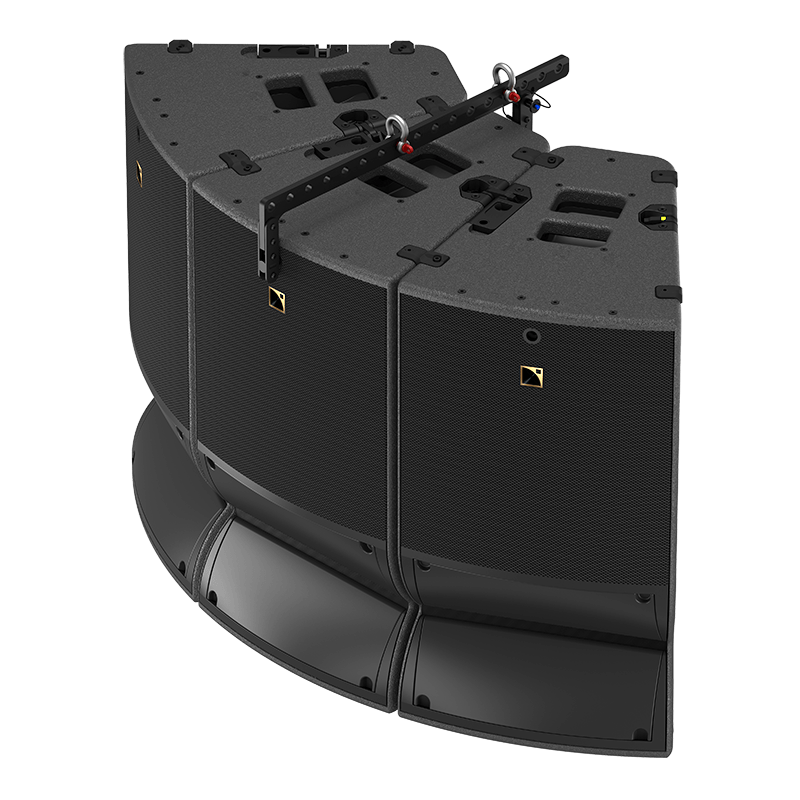

L-Acoustics A15 Wide

Performance and simplicity
2-way passive, 15″
CONSTANT CURVATURE LINE SOURCE
L-VENTS
DOSC
PANFLEX
Max SPL 141 dB
Bandwidth 42 Hz – 20 KHz
Transducers LF : 1 x 15″ + HF : 1 x 3″
Weight 33 kg
Directivity H: 70° / 90° / 110° – V: 30°

Thương hiệuL-Acoustics
Âm thanhfull-range, line-array, passive
So sánh
Thêm vào yêu thích
Danh mục: Thẻ:
Mô tả

Electroacoustic specs

2-way passive constant curvature WST® 30° enclosure
amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB) 42 Hz – 20 kHz ([A15])
Maximum SPL1 141 dB ([A15])
Nominal directivity (-6 dB) Enclosure: 30°
L-Fins: 110° / 70° symmetric , 90° asymmetric
Transducers LF: 1 × 15″ cone drivers
HF: 1 × 3″ diaphragm compression drivers
Acoustical load LF: bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
Nominal impedance 8 Ω

1 Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling Flush-fitting two-point rigging system
1 handle, 8 corner stops and 2 ground runners
Weight (net) 33 kg / 73 lb
Cabinet Premium grade Baltic beech and birch plywood
Front Coated steel grill
Acoustically neutral 3D fabric
Rigging components High grade steel with anti-corrosion coating
Finish Dark grey brown Pantone 426 C
IP IP55

Dimensions


A15 Wide schema

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “L-Acoustics A15 Wide”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

Vận chuyển & giao hàng

Sản phẩm tương tự

New

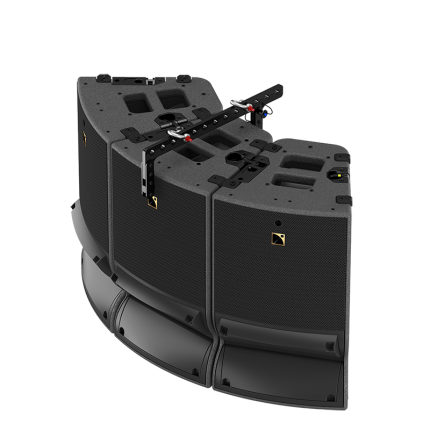

L-Acoustics A10 Wide
