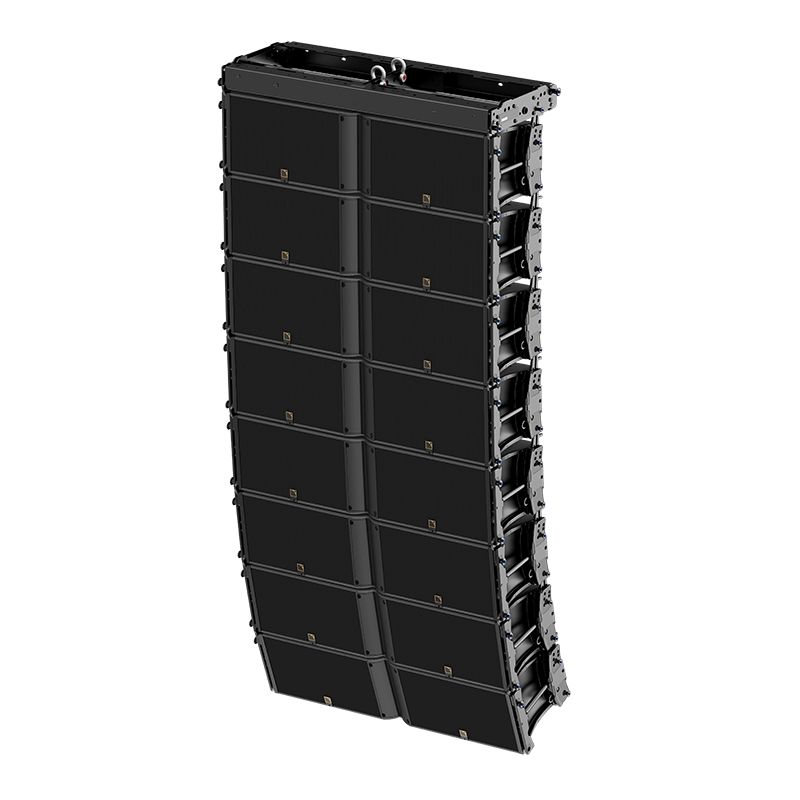

L-Acoustics K2

Lightweight heavyweight
3-way active, dual 12″
VARIABLE CURVATURE LINE SOURCE
L-VENTS
DOSC
PANFLEX
Max SPL 147 dB
Bandwidth 35 Hz – 20 KHz
Transducers LF : 2 x 12″ + MF : 4 x 6.5″ + HF : 2 x 3″
Weight 56 kg
Directivity H: 70° / 90° / 110° – V: 10°

Thương hiệuL-Acoustics
Âm thanhfull-range, line-array, passive
So sánh
Thêm vào yêu thích
Danh mục: Thẻ:
Mô tả

Electroacoustic specs

3-way active full-range WST® enclosure
quad-amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB) 35 Hz – 20 kHz ([K2 70])
Maximum SPL1 147 dB (preset [K2_70])
Nominal directivity (-6 dB) Horizontal : 110° / 70° symmetric ; 90° asymmetric (35°/55° or 55°/33°)
Vertical : depends on the number of elements and array curvature.
Transducers LF: 2 × 12″ cone drivers
MF: 4 × 6.5″ cone drivers
HF: 2 × 3″ diaphragm compression drivers
Acoustical load LF: bass-reflex, L-Vents
MF: bass-reflex
HF: DOSC waveguide, Panflex
Nominal impedance LF : 2 x 8 Ω
MF : 8 Ω
HF : 16 Ω

1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors 2 x 8-point PA-COM
Rigging and handling Captive 4-points rigging system
2 large side handles
Inter-enclosure angles : 0.25, 1, 2, 3, 4, 5, 7.5 or 10°
Weight (net) 56 kg / 123 lb
Cabinet Premium grade Baltic birch plywood
Front Coated steel grill
Acoustically neutral 3D fabric
Side Die cast aluminium
Rigging components High grade steel with anti-corrosion coating
Finish Dark grey brown – Pantone 426 C
IP IP55

Dimensions


K2 schema

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “L-Acoustics K2”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

Vận chuyển & giao hàng

Sản phẩm tương tự

L-Acoustics K1
So sánh

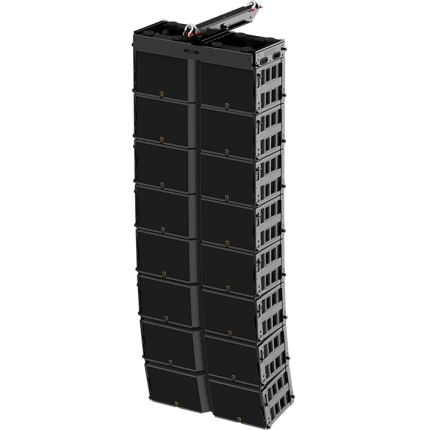

L-Acoustics K1
