L-Acoustics K3i

Full-range. Compact. No compromises.
2-way active, dual 12″
VARIABLE CURVATURE LINE SOURCE
L-VENTS
DOSC
PANFLEX
Max SPL 143 dB
Bandwidth 42 Hz – 20 KHz
Transducers LF: 2 × 12’’ + HF: 1 × 4’’
Weight 35 kg
Directivity H: 70° / 90° / 110° – V: 10°

Thương hiệuL-Acoustics
Âm thanhfull-range, line-array, passive
So sánh
Thêm vào yêu thích
Danh mục: Thẻ:
Mô tả

Electroacoustic specs

2-way active WST® enclosure (installation version)
amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB) 42 Hz – 20 kHz ([K3 70])
Maximum SPL1 143 dB ([K3 70])
Nominal directivity (-6 dB) horizontal: 70° / 110° symmetric or 90° asymmetric
vertical: depending on number of elements and array curvature
Transducers LF: 2 × 12″ neodymium cone driver
HF: 1 × 4″ diaphragm compression driver, neodymium
Acoustical load LF: bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
Nominal impedance LF: 8 Ω
HF: 8 Ω

1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors 2 × 4-point terminal blocks with push-in connection
Rigging and handling external rigging kits
M8 inserts for rigging plates
M6 inserts for K3i-SCREEN
inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Weight (net) 35 kg / 77 lb
Cabinet premium grade Baltic birch plywood
Front coated steel grill
acoustically neutral 3D fabric
Finish dark grey brown Pantone 426 C
pure white RAL 9010
custom RAL code on special order
IP IP55

Dimensions


K3i schema

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “L-Acoustics K3i”

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

Vận chuyển & giao hàng

Sản phẩm tương tự

L-Acoustics K1
So sánh

L-Acoustics K1

The industry benchmark 3-way active, dual 15" VARIABLE CURVATURE LINE SOURCE L-VENTS DOSC Max SPL 149 dB Bandwidth 35 Hz - 20 KHz Transducers LF : 2 x 15" + MF : 4 x 6.5" + HF : 3 x 3" Weight 106 kg Directivity H: 90° - V: 5°
Thêm vào yêu thích
Đọc tiếp
Xem nhanh

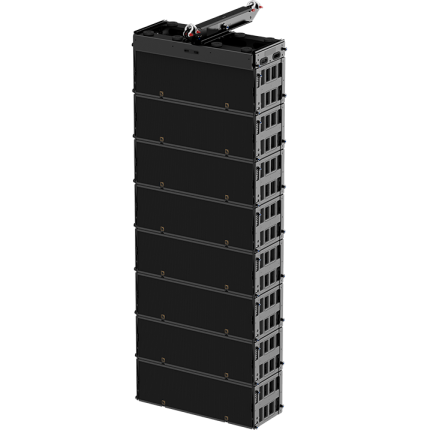

L-Acoustics K1-SB
