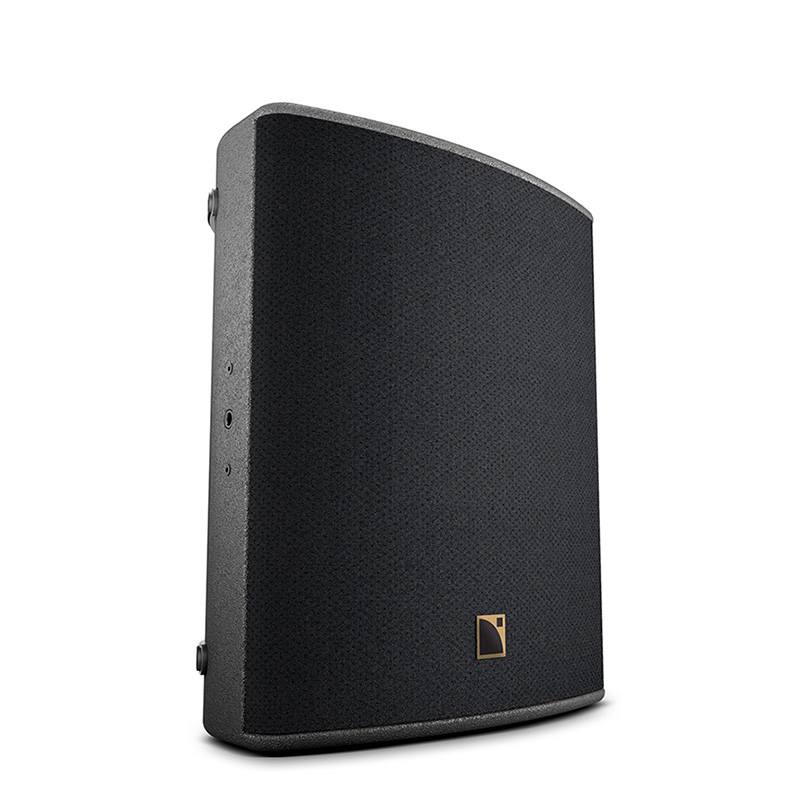

L-Acoustics X12

Big PA sound in a compact box
2-way passive, 8″
POINT SOURCE
COAXIAL
L-VENTS
Max SPL 129 dB
Bandwidth 60 Hz- 20 KHz
Transducers LF : 1 x 8″ + HF : 1 x 1.5″
Weight 12 kg / 26.5 lb
Directivity H: 100° / V: 100°

Thương hiệu	L-Acoustics
Âm thanh	full-range, monitor, passive

Thương hiệu

L-Acoustics

Âm thanh

full-range, monitor, passive

Electroacoustic specs

2-way passive coaxial enclosure
amplified by LA2Xi / LA4X / LA8 / LA12X

Usable bandwidth (-10 dB)	59 Hz – 20 kHz ([X12])
Maximum SPL¹	136 dB ([X12])
Nominal directivity (-6 dB)	vertical: 90° symmetric horizontal: 60° symmetric
Monitor angle	without risers: 35° with risers: 55°
Transducers	LF: 1 × 12″cone driver HF: 1 × 3″diaphragm compression driver, neodymium
Acoustical load	load bass-reflex, L-Vents, ellipsoidal waveguide
Nominal impedance	8 Ω

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors	IN: 1 × 4-point speakON LINK: 1 × 4-point speakON
Rigging and handling	2 × handles DIN580-compatible M8 threaded insert 4 M10 threaded inserts 1 × 35 mm pole socket
Weight (net)	20 kg / 44.1 lb
Cabinet	premium grade Baltic beech and birch plywood
Front	steel with anti-corrosion coating acoustically neutral 3D fabric
Finish	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP	IP43

Dimensions
