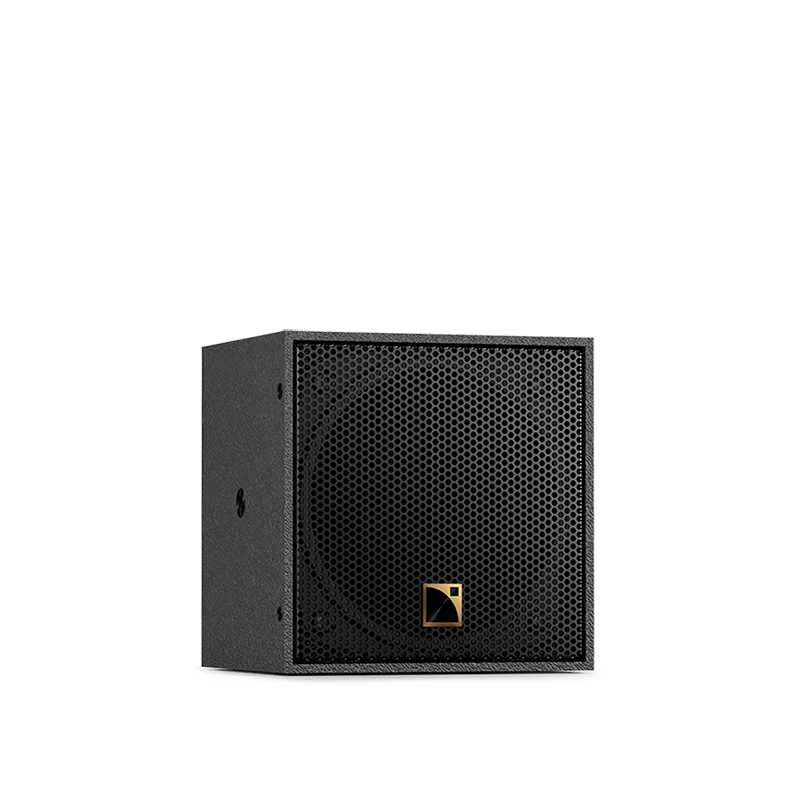

L-Acoustics X4i
The power of small
2-way passive, 4″
POINT SOURCE
COAXIAL
Max SPL 116 dB
Bandwidth 120 Hz- 20 KHz
Transducers LF : 1 x 4″ + HF : 1 x 1.4″
Weight 1 kg
Directivity H: 110° / V: 110°
| Thương hiệu | L-Acoustics |
|---|---|
| Âm thanh | full-range, passive |
Mô tả
Electroacoustic specs
2-way passive coaxial enclosure
amplified by LA2Xi / LA4X / LA8 / LA12X
| Usable bandwidth (-10 dB) | 120 Hz – 20 kHz ([X4])
65 Hz – 20 kHz ([X4_60]) |
| Maximum SPL1 | 116 dB ([X4])
110 dB ([X4_60]) |
| Nominal directivity (-6 dB) | 110° axisymmetric |
| Transducers | LF: 1 × 4″ neodymium HF: 1 × 1.4″ |
| Acoustical load | closed enclosure |
| Nominal impedance | 16 Ω |
1 Peak level at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
| Connectors | IN: 1 × 2-point screw terminal LINK: 1 × 2-point screw terminal |
| Rigging and handling | 2 M5 inserts for X-U4i 2 M6 inserts for on-wall/on-ceiling rigging accessoryIn-wall/in-ceiling versions |
| Safety | 1 M6 insert for secondary safety |
| Weight (net) | 1 kg / 2.2 lb |
| Cabinet | premium grade Baltic birch plywood |
| Front | coated steel grill |
| Finish | dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order |
| IP | IP55 with connector sealing plate |
Dimensions
