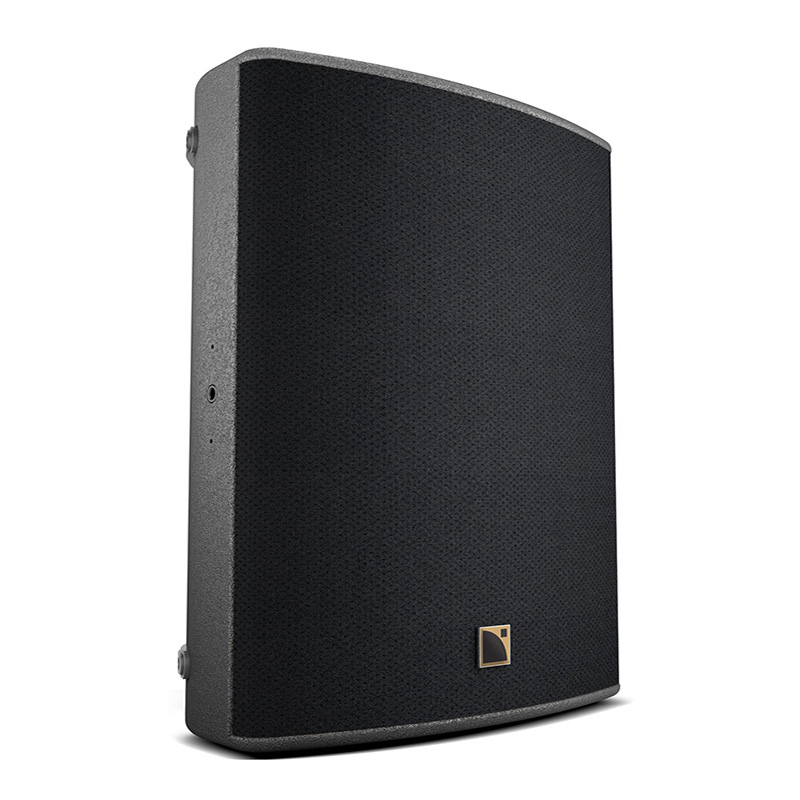

L-Acoustics X15 HiQ

Diva of the stage
2-way active, 15″
POINT SOURCE
COAXIAL
L-VENTS
ELLIPSOID WAVEGUIDE
Max SPL 138 dB
Bandwidth 55 Hz- 20 KHz
Transducers LF : 1 x 15″ + HF : 1 x 3″
Weight 21 kg / 46 lb
Directivity H: 60° / V: 40°

Thương hiệu	L-Acoustics
Âm thanh	full-range, monitor, passive

Thương hiệu

L-Acoustics

Âm thanh

full-range, monitor, passive

Electroacoustic specs

2-way active coaxial enclosure
amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB)	55 Hz – 20 kHz ([X15])
Maximum SPL¹	138 dB ([X15])
Nominal directivity (-6 dB)	vertical: 60° symmetric horizontal: 40° symmetric
Monitor angle	without risers: 35° with risers: 55°
Transducers	LF: 1 × 15″ cone driver HF: 1 × 3″ diaphragm compression driver, neodymium
Acoustical load	load bass-reflex, L-Vents, ellipsoidal waveguide
Nominal impedance	LF: 8 Ω HF: 8 Ω

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Physical specs

Connectors	IN: 1 × 4-point speakON LINK: 1 × 4-point speakON
Rigging and handling	2 handles 1 DIN580-compatible M8 threaded insert 4 M10 threaded inserts 2 × 35 mm pole sockets
Weight (net)	21 kg / 46.3 lb
Cabinet	premium grade Baltic beech and birch plywood
Front	steel with anti-corrosion coating acoustically neutral 3D fabric
Finish	dark grey brown Pantone 426 C custom RAL code on special order
IP	IP43

Dimensions
