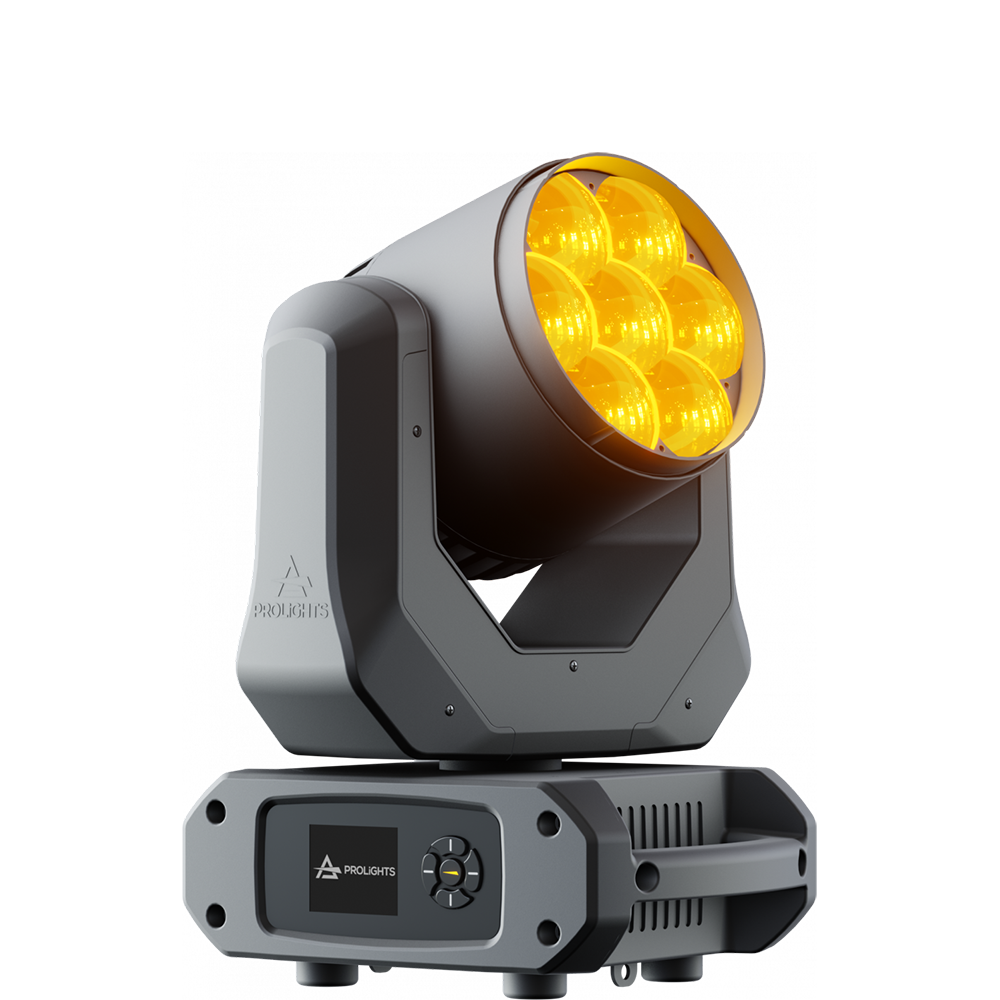

Prolights Jet Wash7

(1 đánh giá của khách hàng)

7x20W RGBW moving wash light with a 4°- 55° zoom

The Jet Wash7 is a compact and fast LED moving wash light with motorized zoom control.
The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 55°, this unit can easily work as beam or wash light.
The Jet Wash7’s colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Thương hiệuProLights
So sánh
Thêm vào yêu thích
Danh mục: Thẻ:
Mô tả

LIGHT SOURCE

  • Source: 7x20W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 1’232 lm – (55°) 1’993lm @full
  • Lux: (4°) 28’754 lx – (55°) 611lx @3 m full
  • Source life expectancy: > 50.000 h

OPTICS

  • Zoom: 4° – 55° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics

COLOUR SYSTEM

  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / – green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: see variants

CONTROL

  • Protocols: DMX512, RDM
  • DMX channels: 23channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 160W
  • Output (at 230V): up to 15 units on a single power line
  • Power factor: > 0,94

PHYSICAL

  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 279x377x205mm / 10.98”x14.84”x8.07”
  • Weight: 8,3kg / 18.3lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

  • 1 x JETWASH7
  • 1 x OS24
  • 1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
  • 1 x User Manual
Đánh giá (1)

1 đánh giá cho Prolights Jet Wash7

  1. Admin.Q –

    verry good !

Thêm một đánh giá

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

Vận chuyển & giao hàng

Sản phẩm tương tự

So sánh

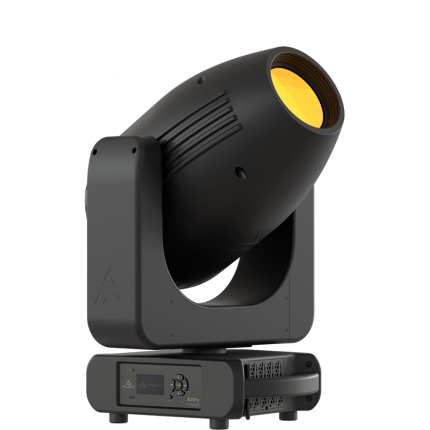

Prolights Astra Profile400

Indoor LED Moving Profile, with a 400W White source The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects. Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection. The Astra Profile400's optical system moves linearly from 6,5° to 50°, and it's equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
New

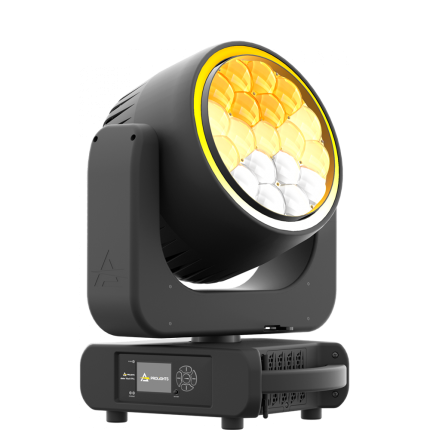

Prolights Astra Wash19Pix
So sánh

Prolights Astra Wash19Pix

19x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities. Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application. Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
New
PROLIGHTS-Astra-Wash37Pix
So sánh

Prolights Astra Wash37Pix

37x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring The Astra Wash37PIX is a powerful LED moving wash light, designed for large stages, arena tours and venues. The 37x40W Osram RGBW LED light source, plus the exterior pixel ring, make this fixture the most powerful LED wash in its class. The unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, creating beautiful convergence in-air effects and smooth wash spreads. The Astra Wash37PIX is single pixel controllable, with multiple on-board effects, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX, Art-Net, sACN, Kling-Net and RDM.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
Prolights Astra Wash7Pix
So sánh

Prolights Astra Wash7Pix

7x40W RGBW moving wash light with 4°-56° zoom and pixel control Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires. Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light. Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
New
PROLIGHTS-Jet-Beam2
So sánh

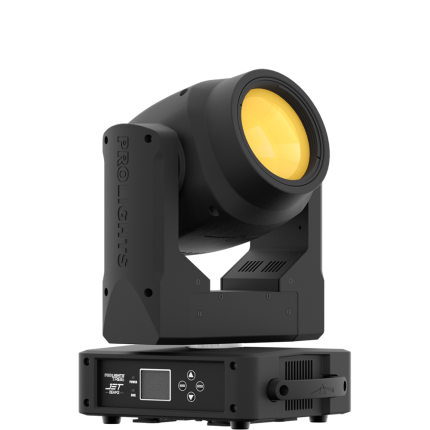

Prolights Jet Beam2
