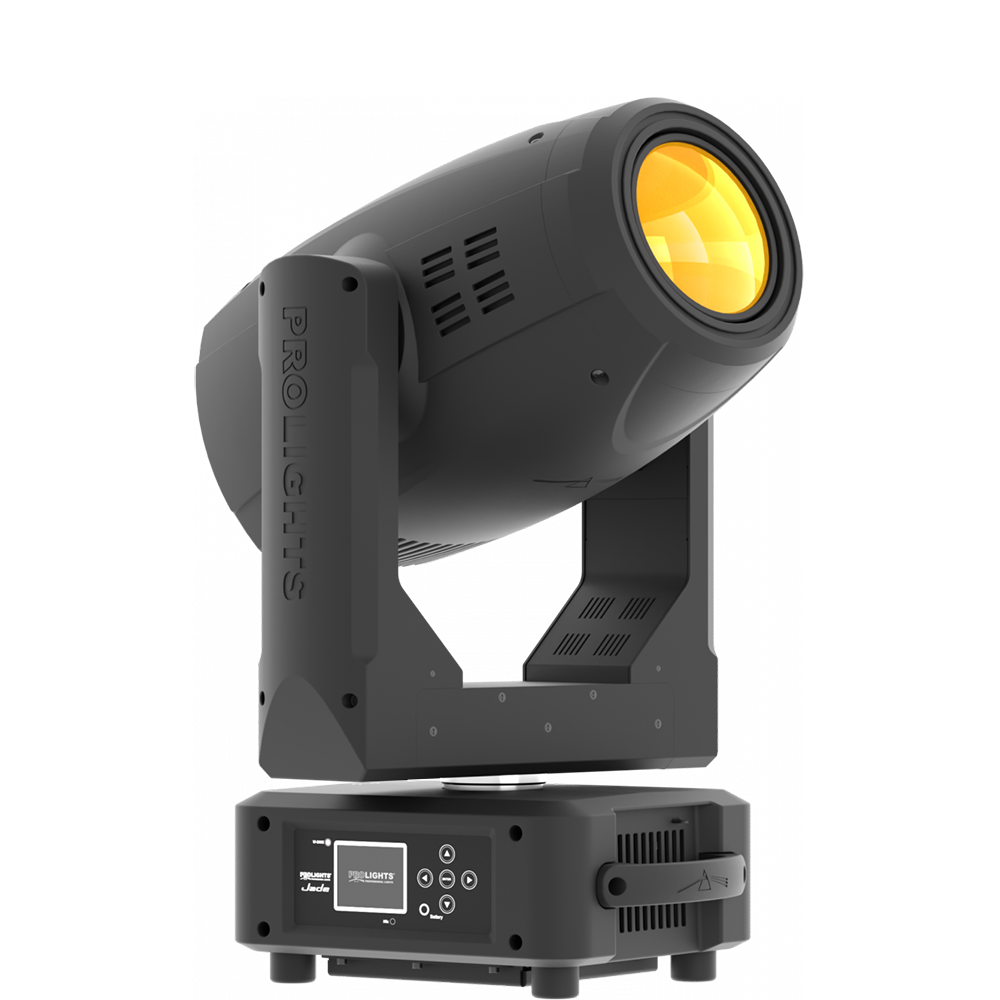

Prolights Jade

280W hybrid beam / spot moving light

Jade is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot – all from a single unit.

Thương hiệu	ProLights

So sánh

Thêm vào yêu thích

Danh mục: indoor moving Thẻ: Prolights Jade

Mô tả

LIGHT SOURCE

Source: 280W S Osram Sirius HRI
CCT: 7.800
Luminous flux: 8’866lm
Lux: (1.5°) 288’031lx @5 m full
Lux: (4.5°) 42’264lx @5 m
Source life expectancy: 2.000 h

OPTICS

Zoom: beam: 2° – 10° / spot: 5,5° – 23° motorised linear zoom
Lens diameter: 117mm / 4.61”
Lens type: high-quality glass lens optics
Additional optics: heat filter to switch from beam to spot modes
Focus: motorised with auto-focus

COLOUR SYSTEM

CCT: on wheel 2.500 K and 3.200 K + CTB
Colour wheel: 13 colour filters
Macros: linear, half colours, colour bounce

DYNAMIC EFFECTS

Rotating gobos: 9 rotating gobos + open, interchangeable
Gobo size: outer: 15,7 mm – image: 12 mm – thickness: 1,1 mm
Fixed gobos: 14 fixed gobos + open
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: frost unit to soften the beam edge

BODY

Pan angle: 630° – 540°
Tilt angle: 265°
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: black

CONTROL

Protocols: DMX512, RDM, W-DMX
DMX channels: 14 / 16 / 22 / 23channel
Wireless Control: included, wireless solution receiver
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX

ELECTRONICS

Dimmer: linear 0 ~ 100% mechanical dimmer
Strobe / shutter: 1 – 25 flash(s), mechanical
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 423W
Max power consumption (at 120V): 423W
Power factor: 0,99

PHYSICAL

IP rating: 20
Cooling: active, silent operation
Suspension and fixing: any position with quick-lock omega brackets
Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN connector
Dimensions (WxHxD): 355x619x235mm / 13.98”x24.37”x9.25”
Weight: 17kg / 37.48lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x JADE
1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
2 x OS24
User Manual
