New

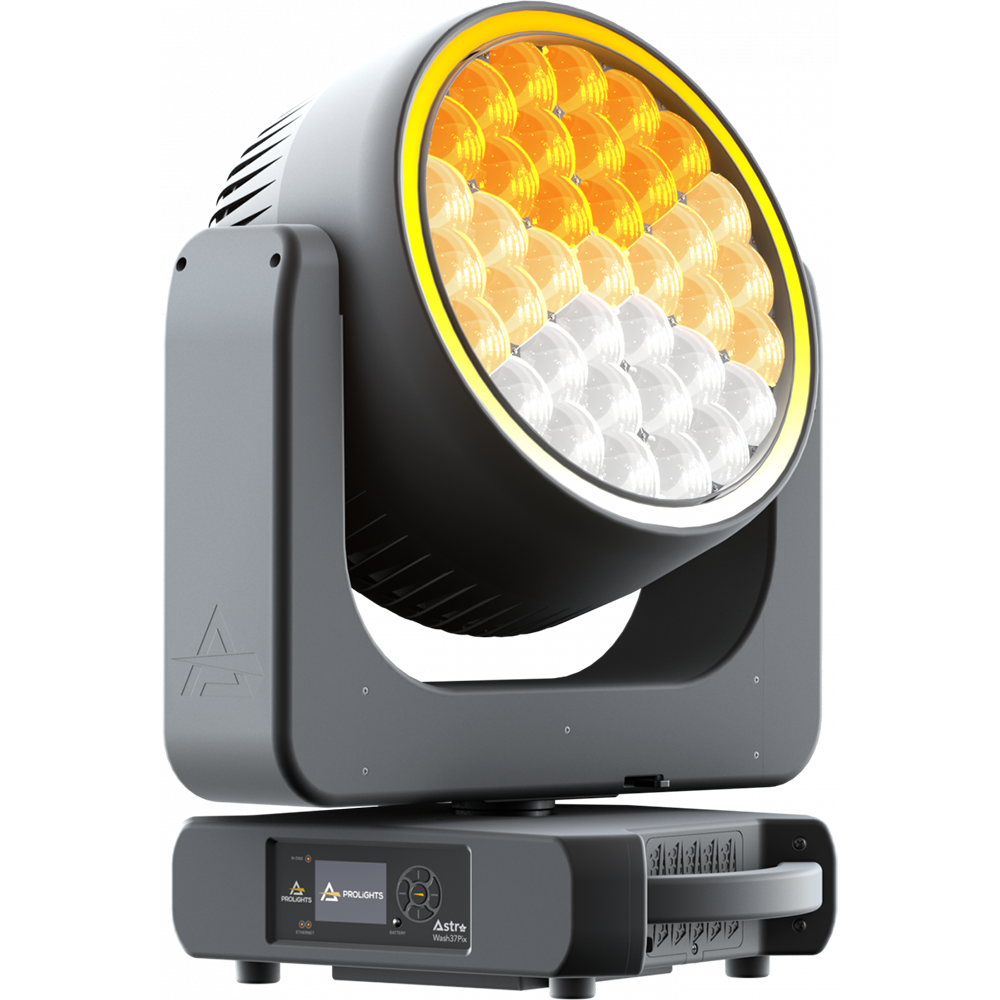

Prolights Astra Wash37Pix

37x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring

The Astra Wash37PIX is a powerful LED moving wash light, designed for large stages, arena tours and venues.
The 37x40W Osram RGBW LED light source, plus the exterior pixel ring, make this fixture the most powerful LED wash in its class. The unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, creating beautiful convergence in-air effects and smooth wash spreads.
The Astra Wash37PIX is single pixel controllable, with multiple on-board effects, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX, Art-Net, sACN, Kling-Net and RDM.

Thương hiệu	ProLights

So sánh

Thêm vào yêu thích

Danh mục: indoor moving Thẻ: Prolights Astra Wash19Pix

Mô tả

LIGHT SOURCE

Source: 37x40W RGBW Osram Ostar LEDs
Luminous flux: (4°) 8’452 lm – (54°) 17’898lm @full
Lux: (4°) 73’522 lx – (54°) 2’140lx @5 m full
Other: outer RGB pixel ring with frost film
Source life expectancy: > 50.000 h

OPTICS

Zoom: 4° – 54° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
Additional optics: diffuser on outer pixel ring

COLOUR SYSTEM

Colour mixing: RGBW / FC
CCT: CCT control, + / – green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 233°
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: RAL 9004

CONTROL

Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels: main personality 23 / 30 / 44 / 52channel
Pixel control: OFF, ring and pixel2pixel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 – 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +40°
LED Control: flicker free operation
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 1227W
Output (at 230V): 3 units on a single power line
Power factor: > 0,97

PHYSICAL

IP rating: 20
Cooling: forced air with fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 520x644x310mm / 20.47”x25.35”x12.2”
Weight: 26,4kg / 58.2lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x ASTRAWASH37PIX
1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
2 x OS24
User Manual

Astra Wash37Pix
