New

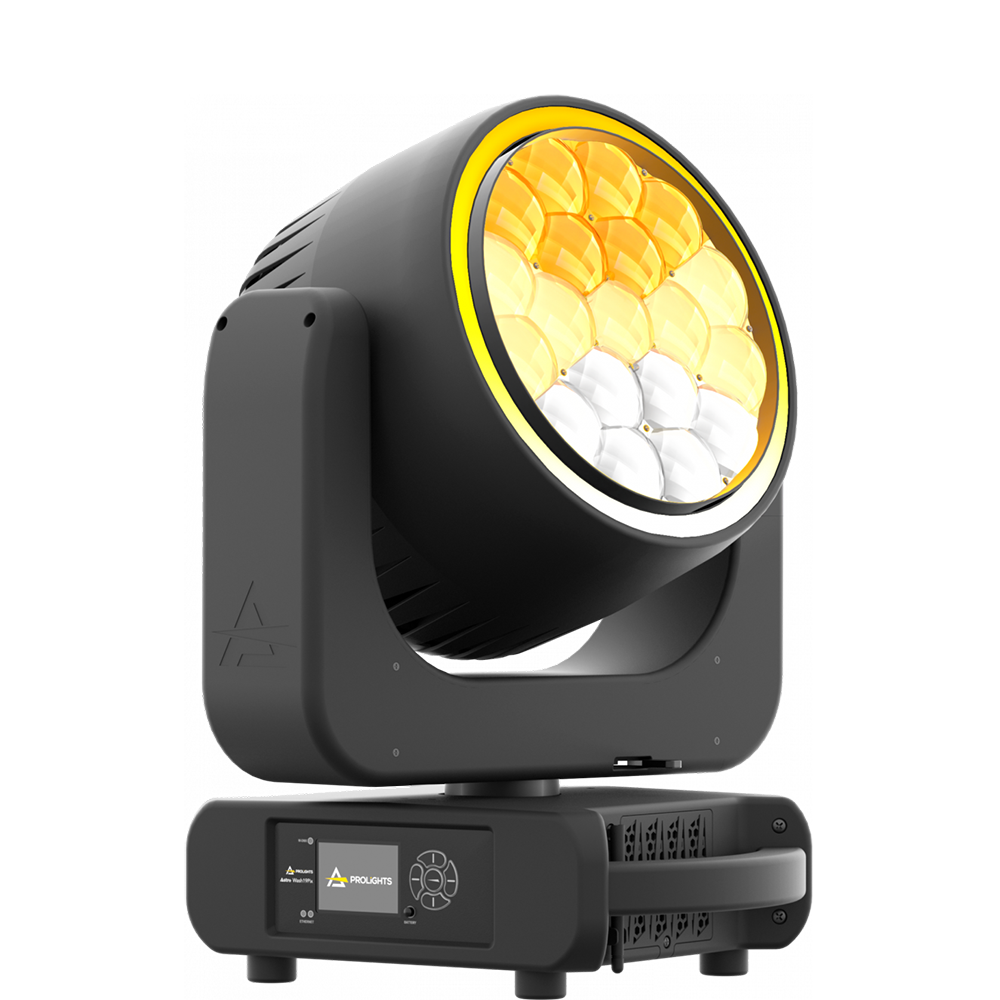

Prolights Astra Wash19Pix

19x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities.
Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application.
Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Thương hiệu	ProLights

So sánh

Thêm vào yêu thích

Danh mục: indoor moving Thẻ: Prolights Astra Wash19Pix

Mô tả

LIGHT SOURCE

Source: 19x40W RGBW Osram Ostar LEDs
Luminous flux: (4°) 5’505 lm – (54°) 10’143lm @full
Lux: (4°) 45’146 lx – (54°) 1174lx @5 m full
Other: outer RGB pixel ring with frost film
Source life expectancy: > 50.000 h

OPTICS

Zoom: 4° – 54° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics
Additional optics: diffuser on outer pixel ring

COLOUR SYSTEM

Colour mixing: RGBW / FC
CCT: CCT control, + / – green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 233°
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: see variants

CONTROL

Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels: main personality 29 / 32 / 53channel
Pixel control: OFF, ring and pixel2pixel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 – 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 620W
Output (at 230V): 4 units on a single power line
Power factor: > 0,95

PHYSICAL

IP rating: 20
Cooling: forced air with fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 410x514x250mm / 16.14”x20.24”x9.84”
Weight: 17,4kg / 38.36lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
