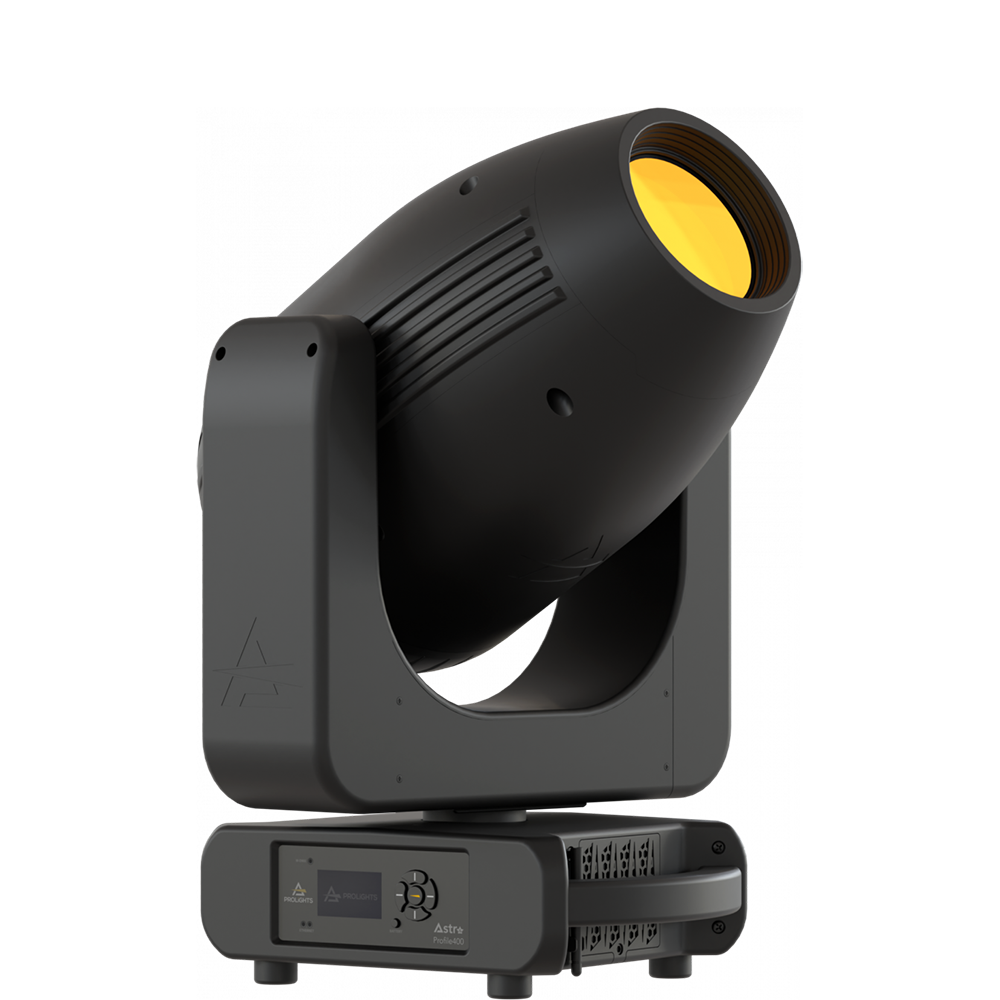

Prolights Astra Profile400

Indoor LED Moving Profile, with a 400W White source

The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects.
Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection.
The Astra Profile400’s optical system moves linearly from 6,5° to 50°, and it’s equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.

Thương hiệu	ProLights

So sánh

Thêm vào yêu thích

Danh mục: indoor moving Thẻ: Prolights Astra Profile400

Mô tả

LIGHT SOURCE

Source: 400W White LED
CCT: 7.000K
Luminous flux: (6,5°) 9’143 – (50°) 17’598lm
Lux: (6,5°) 37’468 lx (50°) 1’690lx @5 m
CRI: > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
Source life expectancy: > 30.000 h

OPTICS

Zoom: 6,5° – 50° motorised linear zoom
Lens diameter: 120mm / 4.72”
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised

COLOUR SYSTEM

Colour mixing: linear CMY
CCT: linear CTO correction 2.700 K ~ 7.000 K
Colour wheel: open + 5,600K high CRI filter + 7 colour filters

DYNAMIC EFFECTS

Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 25,7 mm – image: 19 mm – thickness: 1,1 mm
Circular prism: 4f with bi-directional rotation, indexing
Frost: linear 0 – 100% frost filter
Iris: 5 – 100% motorised iris

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 270°
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: black

CONTROL

Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX
DMX channels: 29 / 39 / 54channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included
Other: 16bit control of dimmer and colour

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 – 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V – 50/60Hz
Max power consumption: 620W
Output (at 230V): 4 units on a single power line
Power factor: > 0,96

PHYSICAL

IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Amphenol XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 410x639x278mm / 16.14”x25.16”x10.94”
Weight: 27,6kg / 60.85lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x ASTRAPROFILE400
1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
2 x OS24
User Manual

Astra Profile400

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Hãy là người đầu tiên nhận xét “Prolights Astra Profile400”

Vận chuyển & giao hàng

Sản phẩm tương tự

New

So sánh

Prolights Astra Hybrid420

indoor moving

Được xếp hạng 5.00 5 sao

Hybrid moving beam-spot, with a 420W USHIO NSL421 lamp The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category. The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body. The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

Đọc tiếp

Prolights Astra Wash19Pix

indoor moving

19x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities. Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application. Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

Prolights Astra Wash7Pix

indoor moving

7x40W RGBW moving wash light with 4°-56° zoom and pixel control Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires. Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light. Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

Prolights Jade

indoor moving

280W hybrid beam / spot moving light Jade is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.

Thêm vào yêu thích

Đọc tiếp

Xem nhanh

So sánh

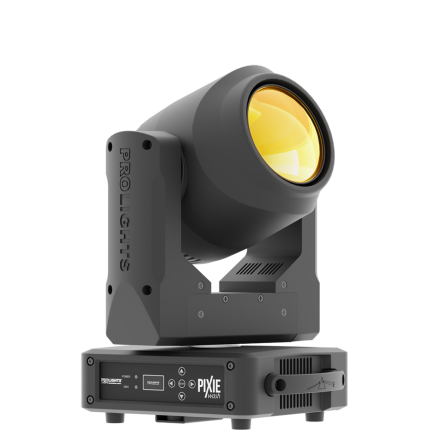

Prolights Pixie Wash
