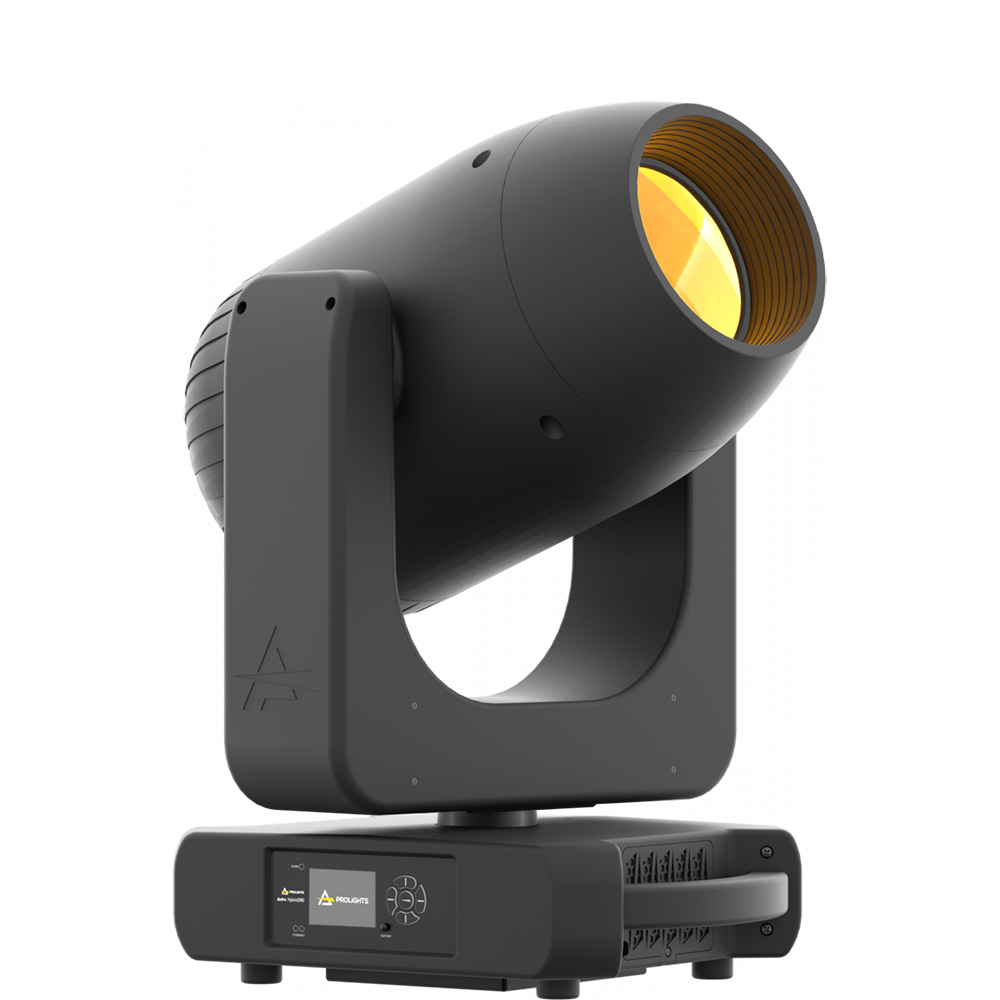

Prolights Astra Hybrid420

(1 đánh giá của khách hàng)

Hybrid moving beam-spot, with a 420W USHIO NSL421 lamp

The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it’s equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

Thương hiệuProLights
So sánh
Thêm vào yêu thích
Danh mục: Thẻ:
Mô tả

LIGHT SOURCE

  • Source: 420W USHIO NSL421
  • CCT: 7.000
  • Luminous flux: 35.815lm
  • Lux: (2.7°) 99.284 lx – (40°) 281lx @15 m
  • Source life expectancy: 6.000 h

OPTICS

  • Zoom: 2.7° – 40° motorised linear zoom
  • Lens diameter: 153mm / 6.02”
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised

COLOUR SYSTEM

  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 15 dichroic filters on 3 independent colour wheels

DYNAMIC EFFECTS

  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 9 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 15,9 mm – image: 12 mm – thickness: 1,1 mm
  • Fixed gobos: 18 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8 f and 4f with bi-directional rotation, indexing
  • Frost: linear 0 – 100% frost filter

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004

CONTROL

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 30channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB – DMX interface (UPBOX2) not included
  • Other: 16bit control of dimmer

ELECTRONICS

  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 – 28 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 590W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,96

PHYSICAL

  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 445x668x310mm / 17.52”x26.3”x12.2”
  • Weight: 26,2kg / 57.76lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ASTRAHYB420
  • 2 x OS24
  • 1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
  • User manual

Prolights Astra Hybrid420

Đánh giá (1)

1 đánh giá cho Prolights Astra Hybrid420

  1. Admin.Q –

    Good!

Thêm một đánh giá

Email của bạn sẽ không được hiển thị công khai. Các trường bắt buộc được đánh dấu *

Vận chuyển & giao hàng

Sản phẩm tương tự

New
Prolights Astra Wash19Pix
So sánh

Prolights Astra Wash19Pix

19x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities. Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application. Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
So sánh

Prolights Jade

280W hybrid beam / spot moving light Jade is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
New
So sánh

Prolights Jet Wash7

7x20W RGBW moving wash light with a 4°- 55° zoom The Jet Wash7 is a compact and fast LED moving wash light with motorized zoom control. The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 55°, this unit can easily work as beam or wash light. The Jet Wash7's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
New
So sánh

Prolights Pixie WashXB

280W single lens RGB and warm white moving wash luminaire Pixie WashXB reinvents the concept of the moving LED wash light, bringing together the classic styling of a traditional wash luminaire and applying the very latest innovations in the field of LED technology. The large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range with a 1:8 ratio, combined with a proprietary 280W RGB and warm white LED module delivering a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie WashXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being compact, fast and silent, the Pixie WashXB offers unprecedented flexibility and is ideal for use in theatres, TV, corporate and festivals.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
Prolights Stark Bar1000
So sánh

Prolights Stark Bar1000

18x40W moving LED batten with zoom and pixel control Stark Bar1000 is a powerful and zoomable LED batten able to be used as a light curtain, CYC light or wash light. Each of the 40W Osram Ostar RGBW LED pixels are individually controllable and completely consistent with the rest of the Stark family.
Thêm vào yêu thích
Đọc tiếp
Xem nhanh
So sánh

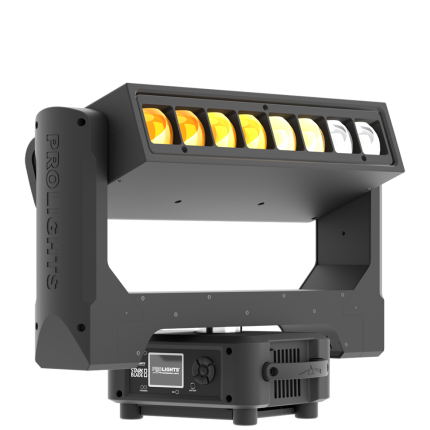

Prolights Stark Blade8
