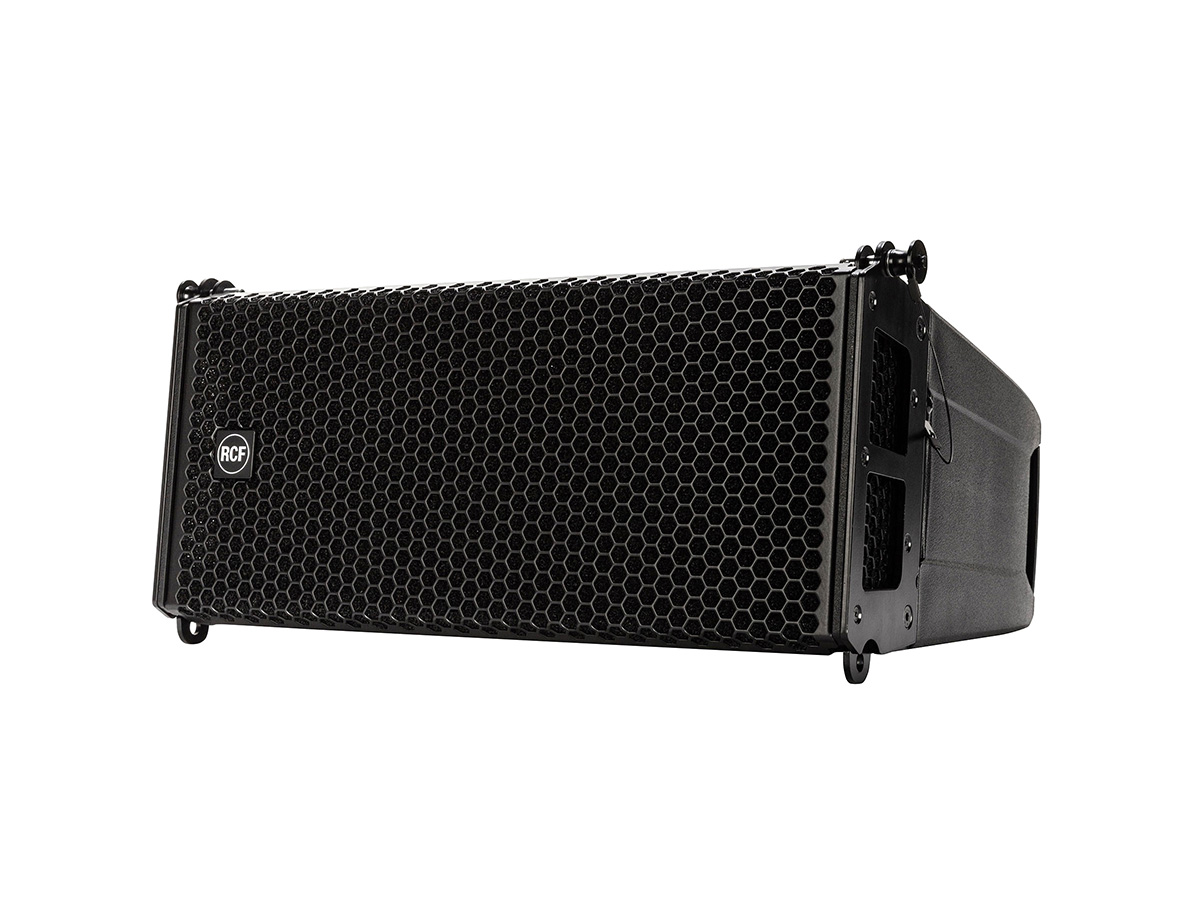

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.
RCF HDL 26-A
133 dB Max SPL
2000W Two-Way Amplifier
Exclusive FiRPHASE technology on-board
750 Hz Crossover for best vocal reproduction
RDNet Networked Management
1.5” Titanium Compression Driver
2 x 6” High-Powered Neodymium Woofers
4 PATH waveguide
| Thương hiệu | RCF |
|---|---|
| Âm thanh | active, full-range, line-array |
Mô tả
ACOUSTICAL SPECIFICATIONS
Frequency Response:55 Hz ÷ 20000 Hz
Max SPL @ 1m:133 dB
Horizontal coverage angle:100°
Vertical coverage angle:10°
TRANSDUCERS
Compression Driver:1 x 1.5” neo, 3.0” v.c
Woofer:2 x 6.0” neo, 2.0” v.c
INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR, RDNet Ethercon
Output connectors:XLR, RDNet Ethercon
Input sensitivity:+4 dBu
PROCESSOR SECTION
Crossover Frequencies:750
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Preset, RDNet bypass
RDNet:Yes
POWER SECTION
Total Power:2000 W Peak, 1000 W RMS
High frequencies:600 W Peak, 300 W RMS
Low frequencies:1400 W Peak, 700 W RMS
Cooling:Convection
Connections:Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Cabinet/Case Material:PP Composite
Hardware:Array fittings
Handles:2 Back
Grille:Steel
Color:Black, White
SIZE
Height:237 mm / 9.33 inches
Width:470 mm / 18.5 inches
Depth:377 mm / 14.84 inches
Weight:13.5 kg / 29.76 lbs
SHIPPING INFORMATION
Package Height:260 mm / 10.24 inches
Package Width:550 mm / 21.65 inches
Package Depth:425 mm / 16.73 inches
Package Weight:14.9 kg / 32.85 lbs
