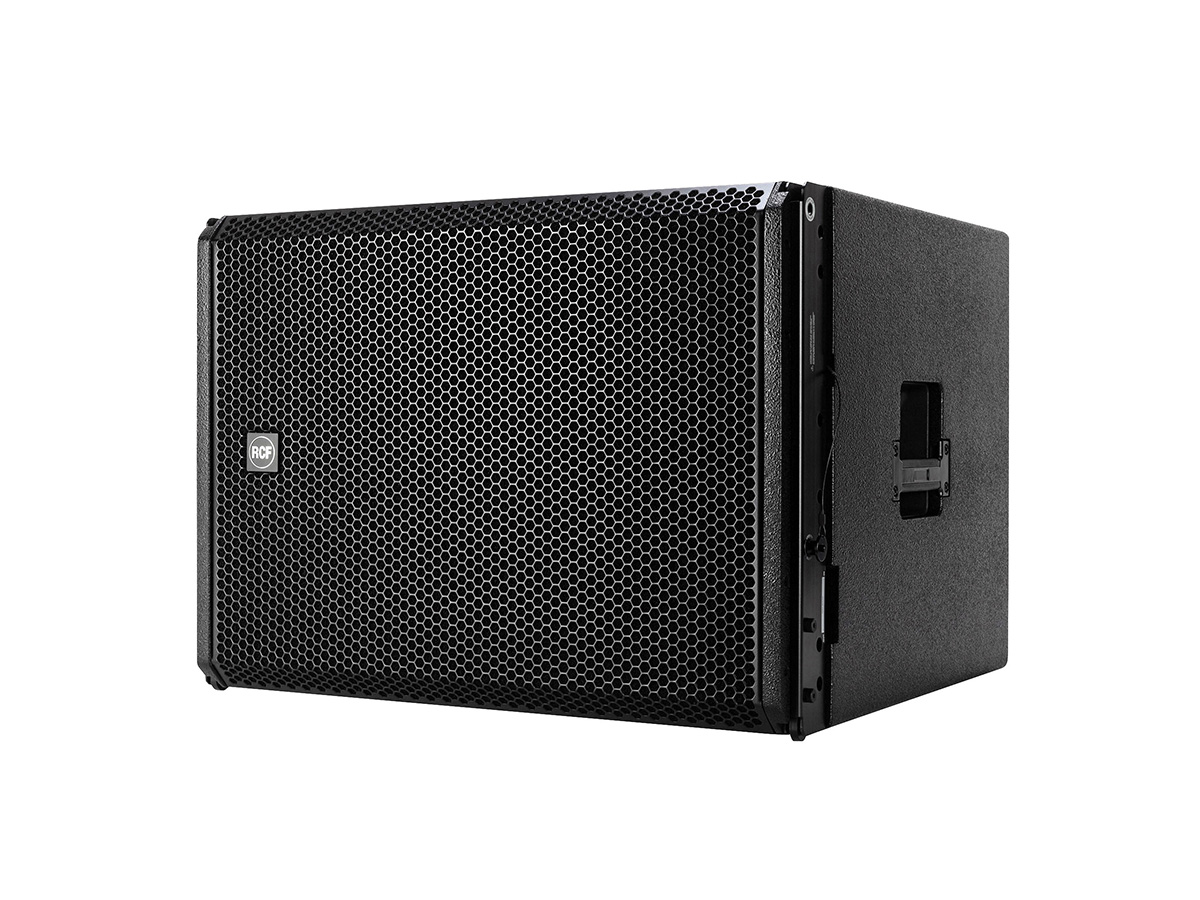

RCF HDL 36-AS

The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system. It features one 4.0” voice coil, 15” neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with the maximum linearity and low distortion. The built-in 3200 watts class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. Due to its compatibility with RDNet – remote monitoring and control, the HDL 36-AS is part of the professional HDL System.

ACOUSTICAL SPECIFICATIONS
Frequency Response:40 Hz ÷ 140 Hz
Max SPL @ 1m:135 dB

TRANSDUCERS
Woofer:15” neo, 4.0” v.c

INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR, RDNet Ethercon
Output connectors:XLR, RDNet Ethercon
Input sensitivity:+4 dBu

PROCESSOR SECTION
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Volume, Preset selection, RDnet on board
RDNet:Yes

POWER SECTION
Total Power:3200 W Peak, 1600 W RMS
Low frequencies:3200 W Peak, 1600 W RMS
Cooling:Convection
Connections:Powercon IN/OUT

PHYSICAL SPECIFICATIONS
Cabinet/Case Material:Baltic birch plywood
Hardware:Array fittings
1 X M20
Handles:2 Side
Grille:Steel
Color:Black, White – RAL 9003

SIZE
Height:467 mm / 18.39 inches
Width:555 mm / 21.85 inches
Depth:593 mm / 23.35 inches
Weight:37 kg / 81.57 lbs

SHIPPING INFORMATION
Package Height:500 mm / 19.69 inches
Package Width:570 mm / 22.44 inches
Package Depth:610 mm / 24.02 inches
Package Weight:40 kg / 88.18 lbs
