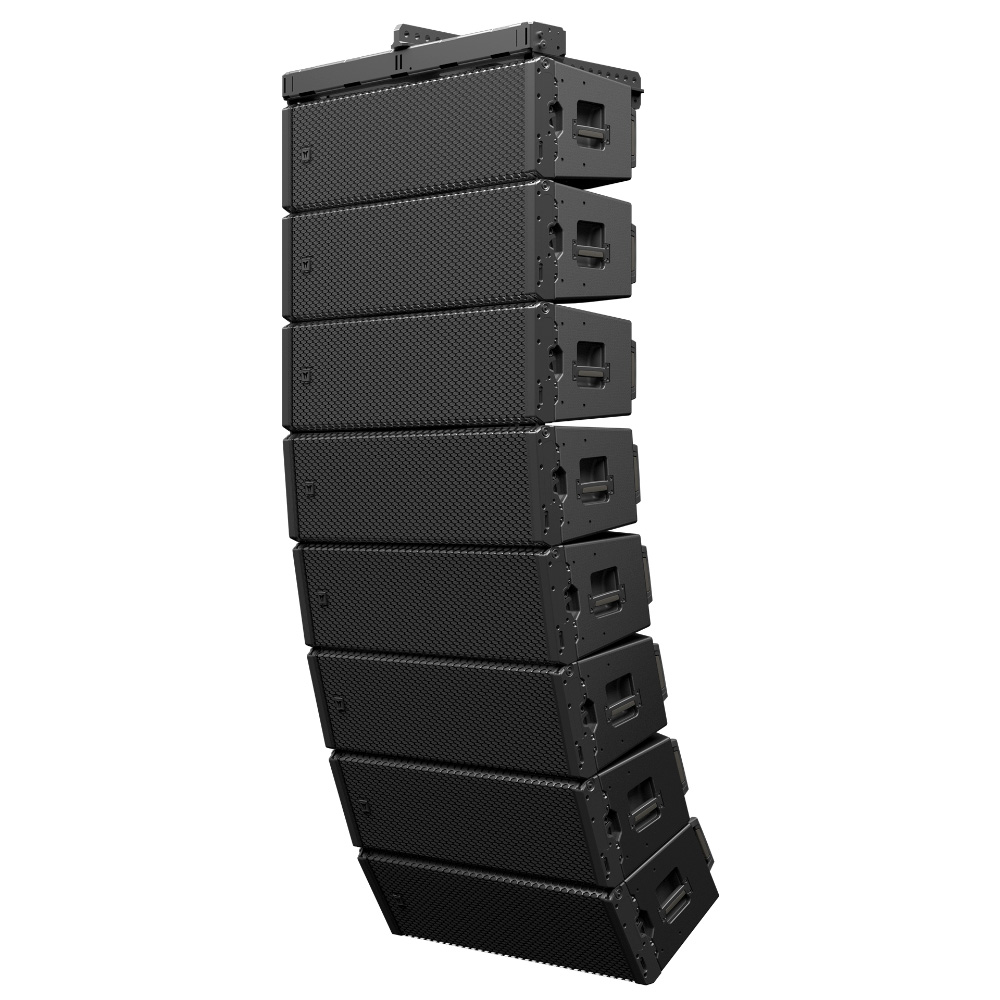

The GTX 12 is a 3-way line array module for large-scale, high-demanding touring and install applications, indoors and outdoors. Equipped with eight best-in-class transducers, it offers excellent playback quality and optimized directivity. Up to 24 GTX 12 modules can be suspended on a single fly-bar.
New

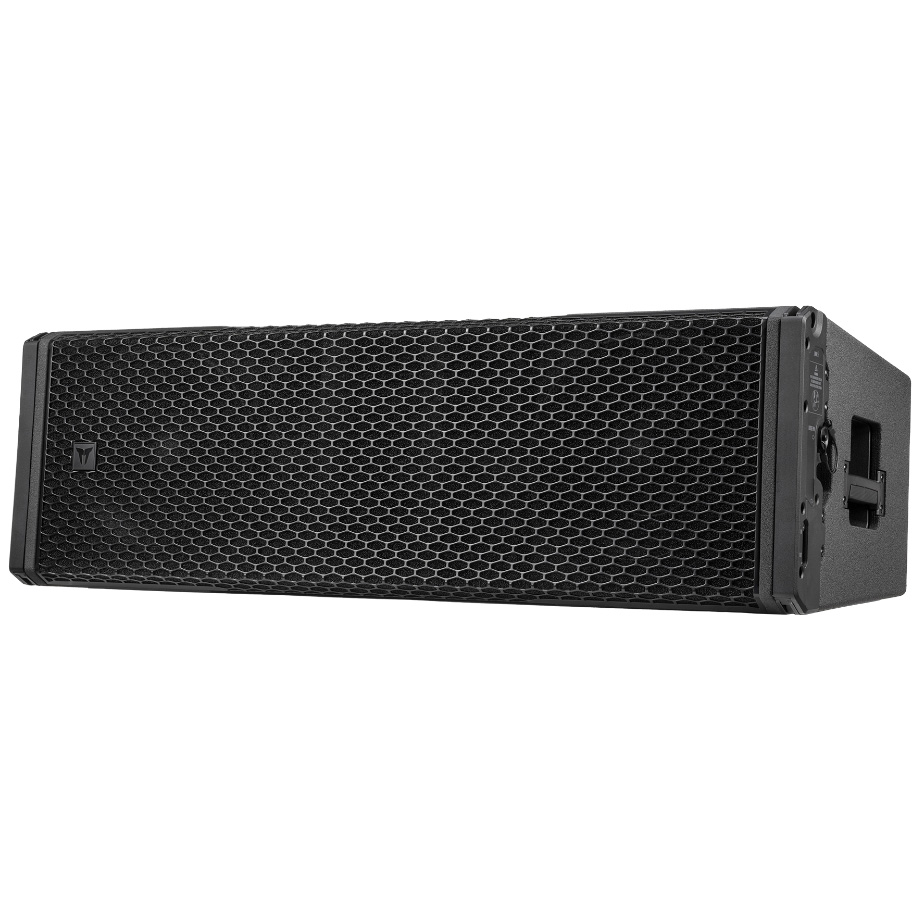

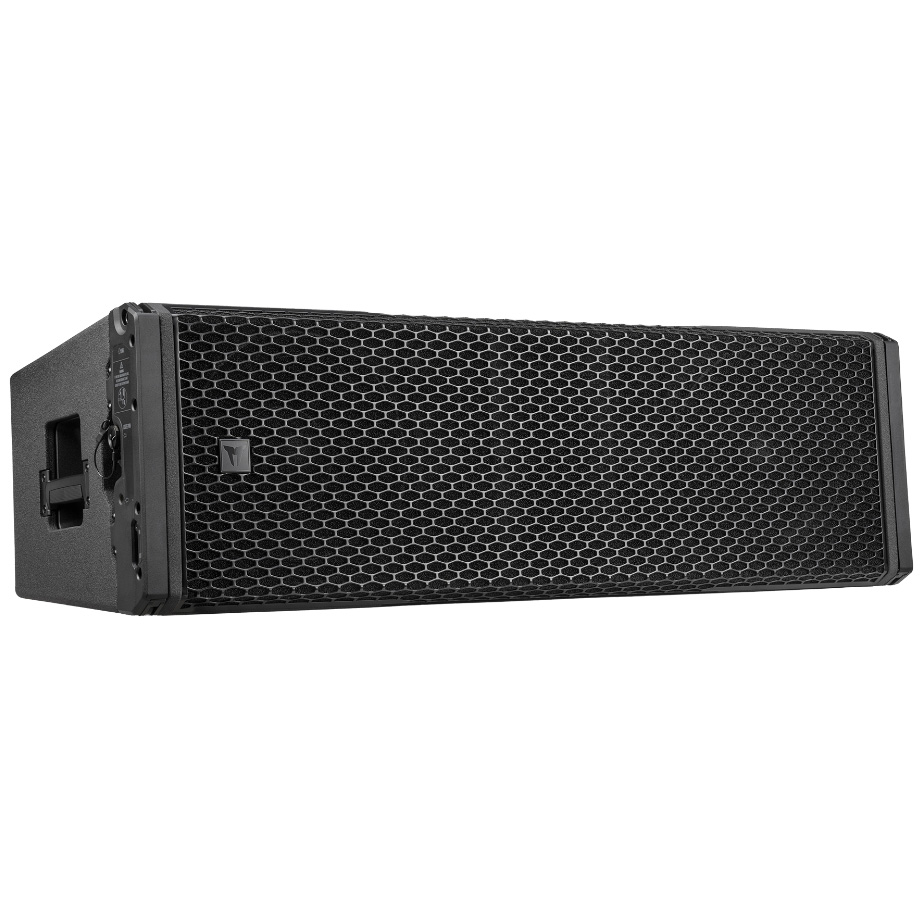

RCF GTX 12
THREE-WAY LINE ARRAY MODULE
148 dB max SPL

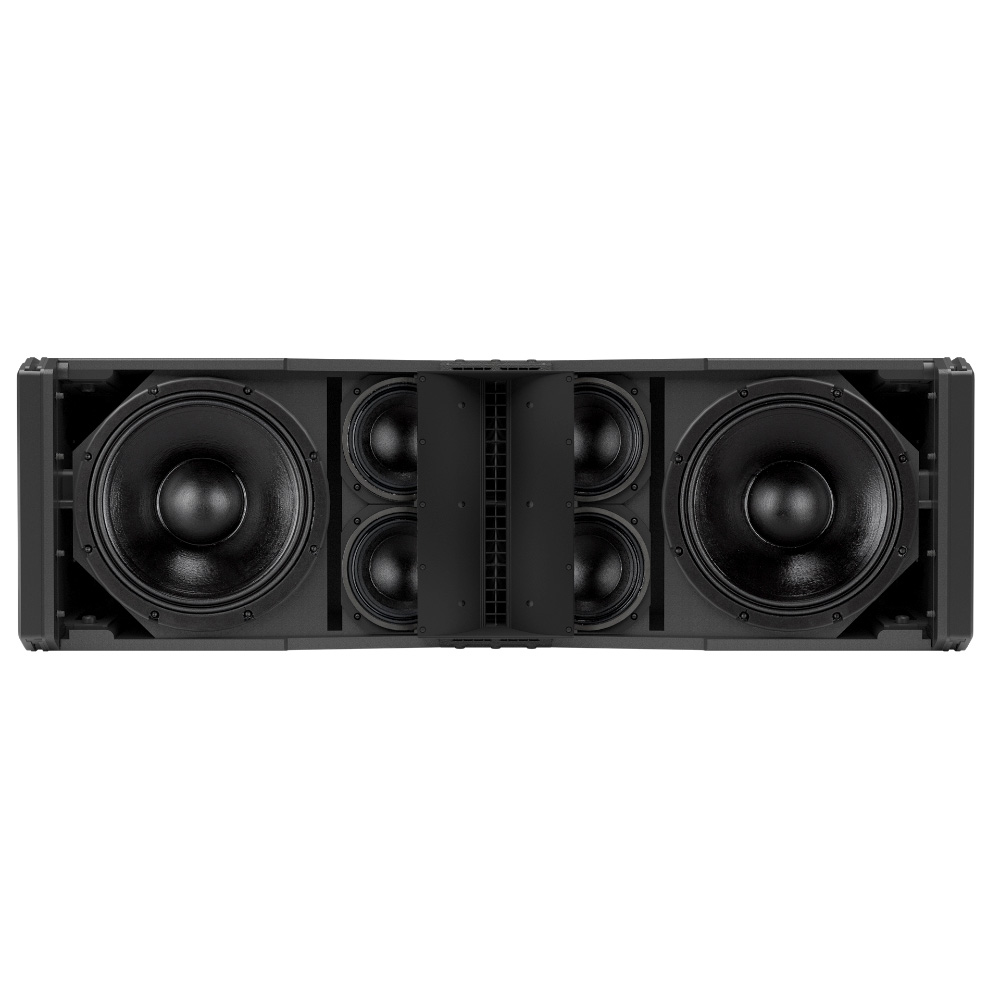

4 x 6” neo midrange drivers, 2” v.c.
2 x 3” titanium dome, neo compression drivers
2 x 12” neo woofers, 3.5” v.c.
90° x 10° 4PATH waveguide
Designed to operate with XPS 16K amplifier (4 XPS channels powering up to 3 modules)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille

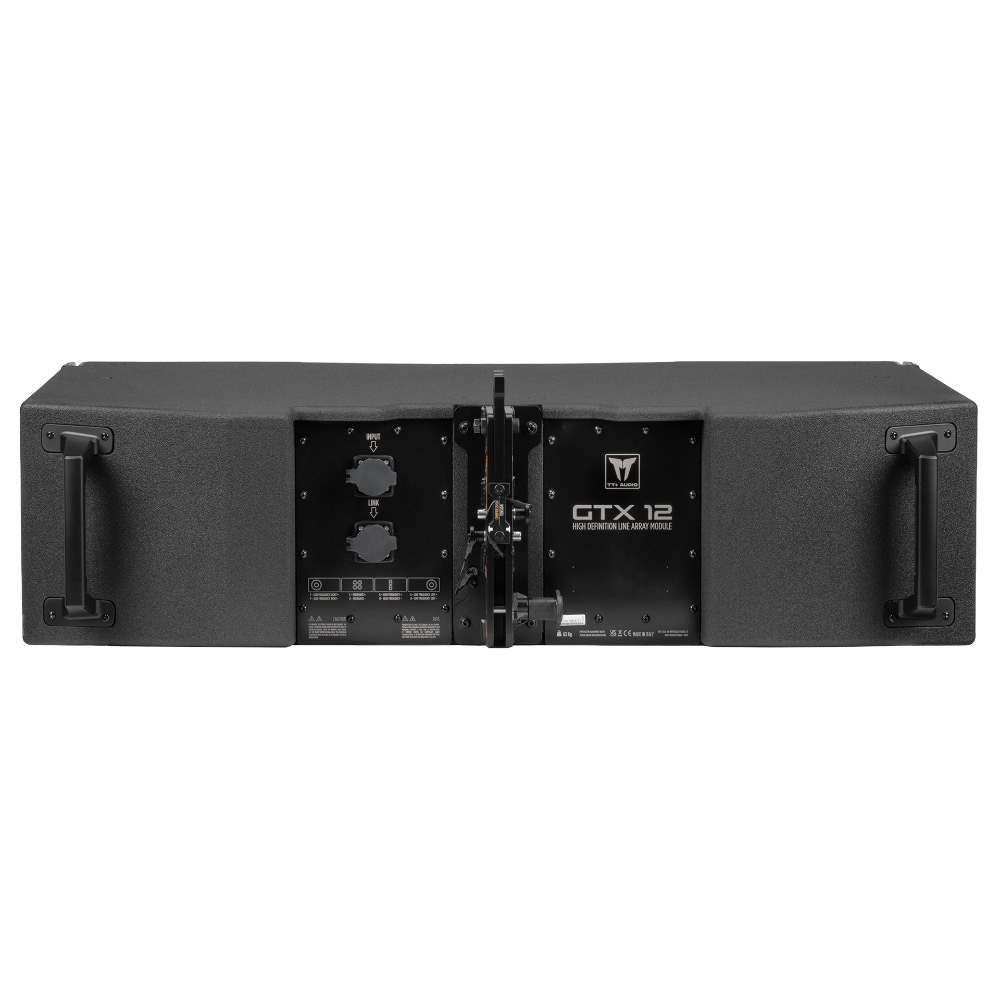

2 x P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)
| Thương hiệu | RCF |
|---|---|
| Âm thanh | full-range, passive |
Mô tả
ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB) 35 Hz ÷ 20000 Hz
Max SPL @ 1m 148 dB
Horizontal coverage angle 90°
Vertical coverage angle 10°
POWER SECTION
Amplification Quad-amp
Nominal Impedance LF 8 ohm
Nominal Impedance LF2 8 ohm
Nominal Impedance MF 8 ohm
Nominal Impedance HF 16 ohm
TRANSDUCERS
Compression Driver 2 x 1.4” neo, 3.0” v.c
Midrange 4 x 6.5” neo, 2.0” v.c
Woofer 2 x 12” neo, 3.5” v.c
INPUT/OUTPUT SECTION
Input connectors P-COM 8POLE
Output connectors P-COM 8POLE
STANDARD COMPLIANCE
Safety agency CE compliant
PHYSICAL SPECIFICATIONS
Hardware Array fittings
Handles 1 x side, 2 rear
Color Black
SIZE
Height 366 mm / 14.41 inches
Width 1177.5 mm / 46.36 inches
Depth 540.6 mm / 21.28 inches
Weight 64.2 kg / 141.54 lbs
SHIPPING INFORMATION
Package Height 605 mm / 23.82 inches
Package Width 1210 mm / 47.64 inches
Package Depth 400 mm / 15.75 inches
Package Weight 71.2 kg / 156.97 lbs
Đánh giá (0)
Vận chuyển & giao hàng
Sản phẩm tương tự
New
RCF GTS 29
HIGH-PERFORMANCE FLYABLE SUBWOOFER
144 dB max SPL
2 x 19” neo woofers, 4” v.c.
3 side handles
Designed to operate with XPS 16K amplifier (4 modules per amp unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
2 x 2 P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)
New
RCF GTX 10
TWO-WAY LINE ARRAY MODULE
143 dB max SPL
1 x 4” titanium dome, neo compression driver
2 x 10” neo woofers, 3” v.c.
110° x 15° 4PATH waveguide
Designed to operate with XPS 16K amplifier (up to 6 modules per amp unit)
Durable and lightweight cabinet construction, polyurea coating
Heavy duty, powder coated, custom perforated front grille
3 x P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)

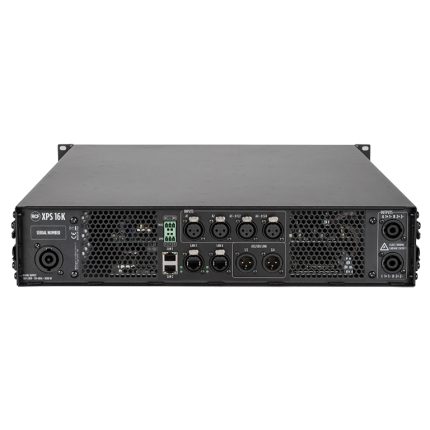

RCF XPS 16K
FOUR CHANNELS DSP AMPLIFIER
16000 W Total Continuous Power
40-bit Floating-point Processing, up to 96 kHz
32-bit Fixed-point Internal Routing
FiRPHASE, Bass Motion Control, Bass Shaper
RDNet Networked Management
Touch 4.3" Color TFT Interface
Full On-board Processing with Delay, EQ, Comp/Limiter
On-board Speaker Presets Library
RCF XPS 16KD
DANTE-EQUIPPED 4-CHANNEL DSP POWER AMPLIFIER
16000 W Total Continuous Power
40-bit Floating-point DSP and 32-bit routing up to 96 kHz
Dante Audio Network
FiRPHASE, Bass Motion Control, Bass Shaper
RDNet Networked Management
Touch 4.3" Color TFT Interface
Full On-board Processing with Delay, EQ, Comp/Limiter
On-board Speaker Presets Library
Class-D Modules with SMPS and Advanced PFC
