RCF TTR 16K

TT+ Audio’s amplification racks provide a seamless integration solution for your audio system. Featuring three XPS amplifiers, signal management panels, and optional high-speed Ethernet network switches, our racks ensure optimal protection and ventilation for the amplifiers. With robust and rugged connectors, convenient AC line input options, and an intelligent design, our racks guarantee optimal performance and reliability for your entire system.

ONE-OF-A-KIND AMPLIFICATION RACK

EASY-TO-CONFIGURE, ALL-IN-ONE SOLUTION

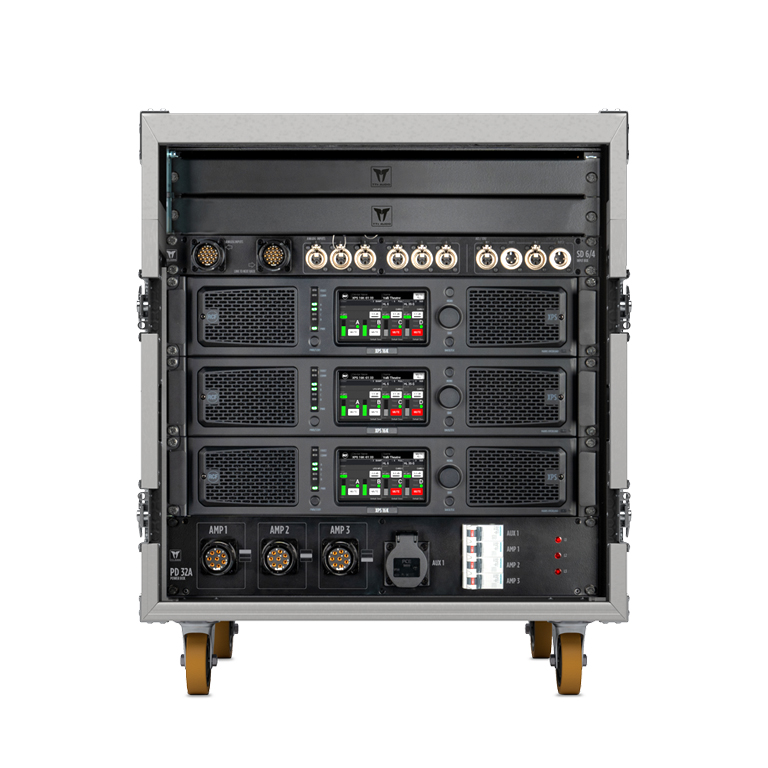

The TTR 16K from TT+ AUDIO is an all-in-one solution that simplifies the setup process for your event. With pre-engineered components specifically designed, the TTR 16K provides a turnkey amplification package. No assembly required. This frees up your technical team to focus on other important setup tasks.
The system features AC power inputs and outputs, rugged S-COM and P-COM multipole connectors for signal and power, network switches for Dante audio transport and control network, and an easy-to-access XLR and AES/EBU patch-bay for rapid routing.
The rack design also optimizes air ventilation between devices.

XPS 16K SERIES

XPS 16K provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network (XPS 16KD), RDNet control, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of TT+ Audio speaker presets is available, with powerful signal processing for complete system tuning.

PD 32A & PD 30A

The PD 32A and PD 30A power distribution boxes are designed for professional audio systems, catering to 230V and 120V or 208V setups respectively. Both units support three XPS 16K amplifiers, featuring robust connectivity options, including CEE 5-pin or NEMA L21 main plugs, Neutrik SpeakCON NL4 to P-COM 8 outputs, Schuko or NEMA 15-5 outlets, and efficient circuit protection mechanisms for safe, reliable power distribution.

SD 6/4

SD 6/4 is an input signal box that distributes the signals from S-COM 19 connector or the six female XLR connectors on the front panel to ten male XLRs on the back panel. Inputs 1 and 2 are respectively paralleled to three XLR connectors on the back panel. The four AES/EBU IN/OUT connectors are linked to the back panel.
