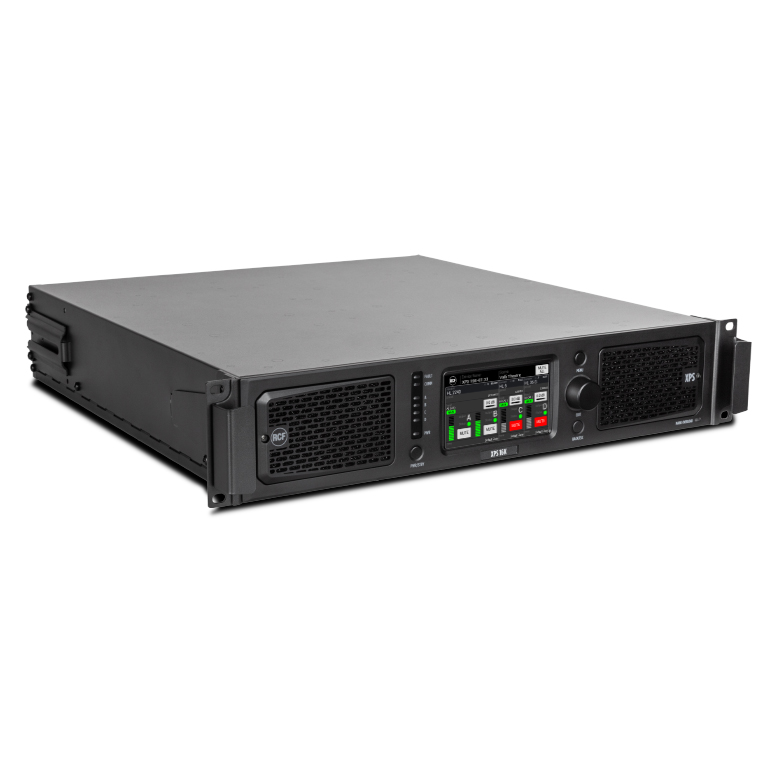

RCF XPS 16K

XPS 16K is a four-channel power amplifier with advanced processing and analog/digital routing options for both touring and install use. With 4×4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 16K packs extreme power density in a 2U chassis. Designed for both touring and installed sound systems, XPS is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range.

AMPLIFIER SPECIFICATIONS

Amplifier Class D
Output Power (EIAJ 8:32 all channels driven)
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Frequency Response (-3dB) 20 Hz ÷ 23000 Hz
SNR Analog inputs (unweighted) >111 dB
SNR Digital inputs (unweighted) >115 dB
Crosstalk <70 dB
Distortion (THD+N) (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm) <0.2 % Gain (linear mode @ 0 dB) 32 dB Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz) >95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N) 200 ms

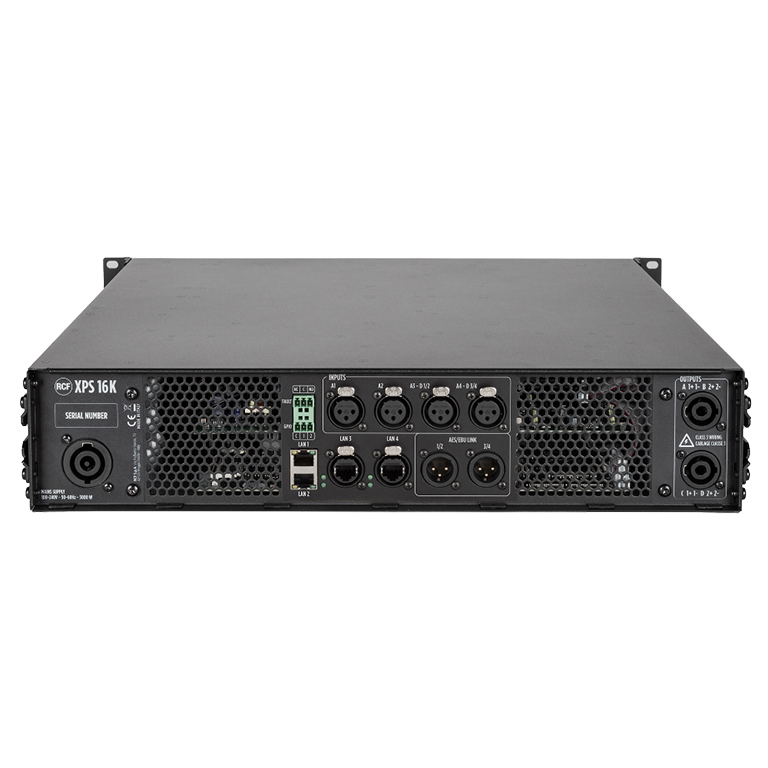

INPUT SECTION

Total number of inputs 8
Line inputs 4
Line connectors XLR
Digital inputs 4
Digital connectors XLR
Digital type AES/EBU
General Purpose Inputs (GPI) 2
Programmable GPI Yes
Photo-coupled GPI 2

OUTPUT SECTION

Signal output number 4
Signal output connectors XLR
Power output connectors Speakon
General Purpose Outputs (GPO) 3
Programmable GPO Yes

PROCESSING

DSP
2 SHARC, 40-bit floating point, 96 kHz
2 ADAU, 32-bit fixed point, 96 kHz

EQ Filters
Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)

Advanced algorithms
FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement

Compressors
RMS limiter | dynamic compressor | power limiter | thermal compressor

Delay 0 ÷ 4000 ms (each channel)

Tone controls Yes
High-pass filter 10 Hz ÷ 1000 Hz
Crossover 2500 ÷ 3500 Hz
Automatic gain control Yes

CONFIGURATION AND CONTROL

Configuration Front panel touch screen, PC Software
Network Gigabit ethernet
RCF speakers presets Yes
Priority Yes
Protocols for system integration: Proprietary OSC based protocol, Q-SYS
RDNet Yes

PROTECTIONS

Cooling Forced
Short circuit Yes
Thermal Yes
DC Yes
Fuses Yes
VHF (Very High Frequencies) Yes

OPERATING CONDITIONS

Temperature range – Continuous operation -5°C ÷ +40°C / +23°F ÷ +104°F
Temperature range – Reduced output power -5°C to +50°C / +23°F to +122°F
Fan noise idle < (dBA) <35 dBA
Fan noise max < (dBA) <64 dBA POWER REQUIREMENT Operating voltage 90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V 30 A
Nominal current AC @ 220-240 V 16 A
Stand by power consumption 20 W
Idle power consumption 90 W
Power consumption (MAX) 5800 W
Main fuse Internal

STANDARD COMPLIANCE

Safety agency
CE compliant, UL 62368-1, 3rd Ed.
CSA C22.2 No. 62368-1:19, 3rd Ed.

PHYSICAL SPECIFICATIONS

Handles 2 metal handles for rack mount
Color Black – RAL 9005
Rack mounting 19″, 2U

SIZE

Height 88.7 mm / 3.49 inches
Width 482 mm / 18.98 inches
Depth 482.4 mm / 18.99 inches
Weight 15 kg / 33.07 lbs

SHIPPING INFORMATION

Package Height 150 mm / 5.91 inches
Package Width 580 mm / 22.83 inches
Package Depth 600 mm / 23.62 inches
Package Weight 18 kg / 39.68 lbs
