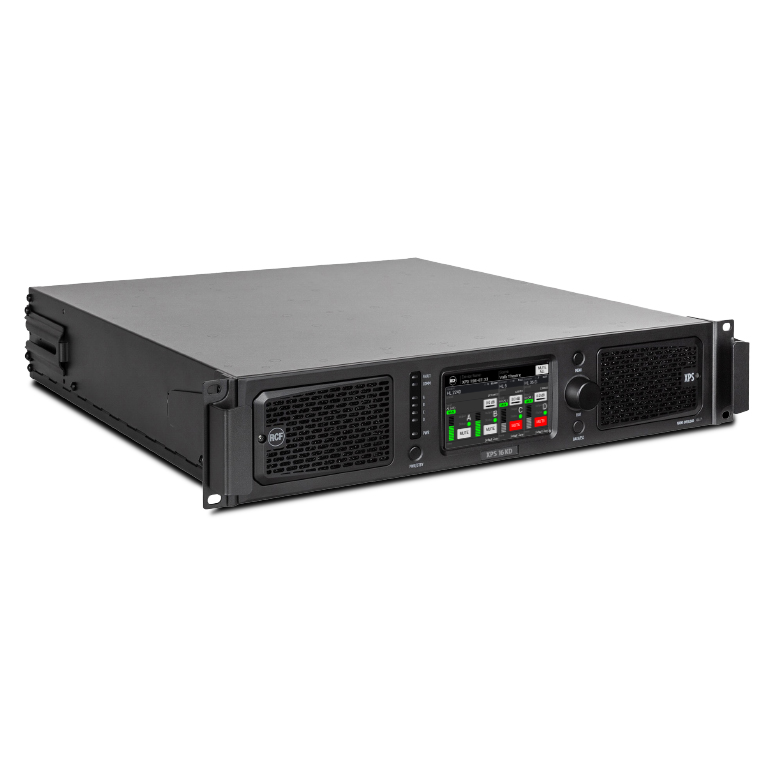

RCF XPS 16KD

XPS 16KD is a four-channel power amplifier with advanced processing and advanced routing with Dante, digital and analog I/O for both touring and install use. With 4×4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 16K packs extreme power density in a 2U chassis. Designed for both touring and installed sound systems, XPS is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range.

AMPLIFIER SPECIFICATIONS

Amplifier Class D
Output Power (EIAJ 8:32 all channels driven)
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Frequency Response (-3dB) 20 Hz ÷ 23000 Hz
SNR Analog inputs (unweighted) >111 dB
SNR Digital inputs (unweighted) >115 dB
Crosstalk <70 dB
Distortion (THD+N) (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm) <0.2 % Gain (linear mode @ 0 dB) 32 dB Damping factor (@ 8 ohm, 20 Hz ÷ 1500 Hz) >95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N) 200 ms

INPUT SECTION

Total number of inputs 16
Line inputs 4
Line connectors XLR
Digital inputs 12
Digital connectors Ethercon, XLR
Digital type AES/EBU, DANTE
General Purpose Inputs (GPI) 2
Programmable GPI Yes
Photo-coupled GPI 2

OUTPUT SECTION

Signal output number 4
Signal output connectors XLR
Power output connectors Speakon
General Purpose Outputs (GPO) 3
Programmable GPO Yes

PROCESSING

DSP Yes
EQ Filters Yes
Advanced algorithms: FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
Compressors Yes
Delay Yes
Tone controls Yes
High-pass filter 10 Hz ÷ 1000 Hz
Crossover 2500 ÷ 3500 Hz
Automatic gain control Yes

CONFIGURATION AND CONTROL

Configuration Front panel touch screen, PC Software
Network Gigabit ethernet
RCF speakers presets Yes
Priority Yes
RDNet Yes

PROTECTIONS

Cooling Forced
Short circuit Yes
Thermal Yes
DC Yes
Fuses Yes
VHF (Very High Frequencies) Yes

OPERATING CONDITIONS

Temperature range – Continuous operation -5°C ÷ +40°C / +23°F ÷ +104°F
Temperature range – Reduced output power -5°C to +50°C / +23°F to +122°F
Fan noise idle < (dBA) <35 dBA
Fan noise max < (dBA) <64 dBA POWER REQUIREMENT Operating voltage 90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V 30 A
Nominal current AC @ 220-240 V 16 A
Stand by power consumption 20 W
Idle power consumption 90 W
Power consumption (MAX) 5800 W
Main fuse Internal
Fuses Model F 315 mA H 100 V

STANDARD COMPLIANCE

Safety agency
CE compliant, UL 62368-1, 3rd Ed.
CSA C22.2 No. 62368-1:19, 3rd Ed.

PHYSICAL SPECIFICATIONS

Handles 2 metal handles for rack mount
Color Black – RAL 9005
Rack mounting 19″, 2U

SIZE

Height 88.7 mm / 3.49 inches
Width 482 mm / 18.98 inches
Depth 482.4 mm / 18.99 inches
Weight 15 kg / 33.07 lbs

SHIPPING INFORMATION

Package Height 150 mm / 5.91 inches
Package Width 580 mm / 22.83 inches
Package Depth 600 mm / 23.62 inches
Package Weight 18 kg / 39.68 lbs
